F6MBA

REMOVAL AND INSTALLATION [6M/T]

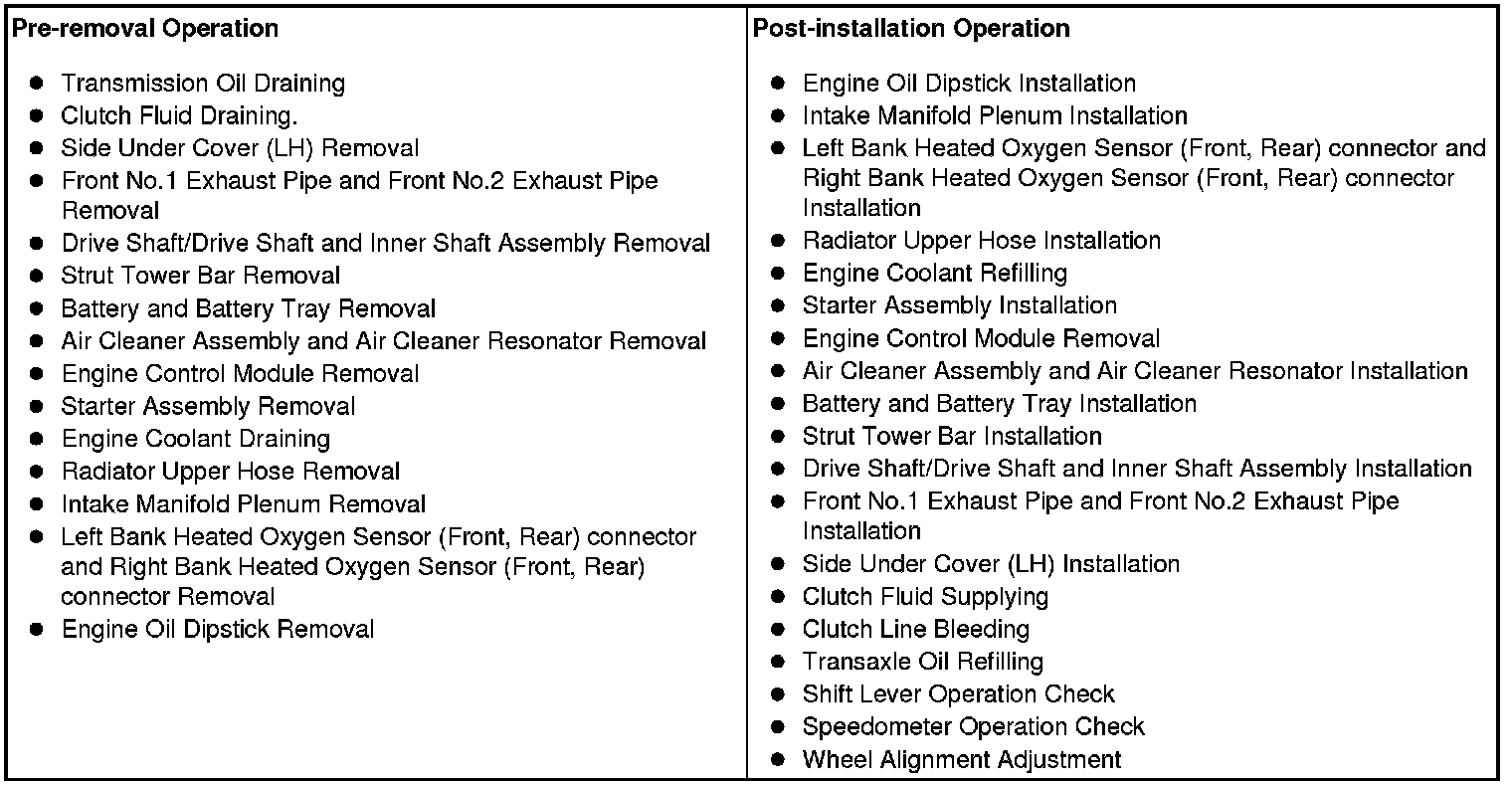

CAUTION:
*: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.













- MB991454: Engine Hanger Balancer
- MB991895: Engine Hanger
- MB991928: Engine Hanger
- Slide bracket (HI)
- MB991931: Joint (140)
- MB991932: Foot (standard)
- MB992012: Engine Hanger Plate A
- MB992013: Engine Hanger Plate B

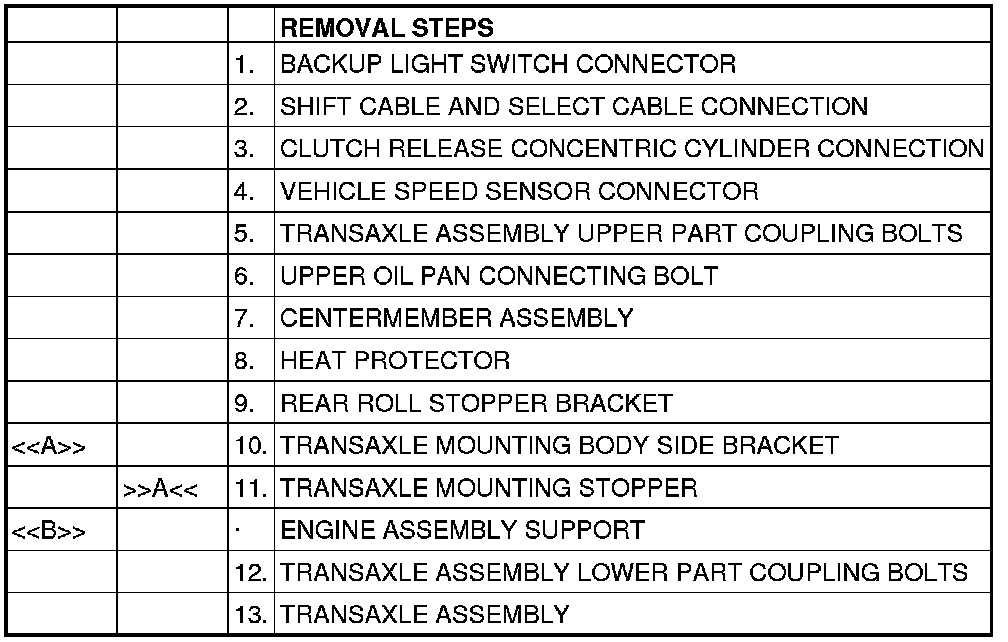

REMOVAL SERVICE POINTS

[[A]] TRANSAXLE MOUNT BRACKET REMOVAL

Jack up the transaxle assembly gently with a garage jack, and then remove the transaxle mount bracket.

[[B]] ENGINE ASSEMBLY SUPPORT

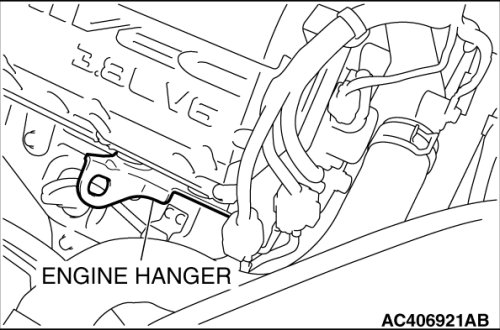

1. Remove the engine hanger.

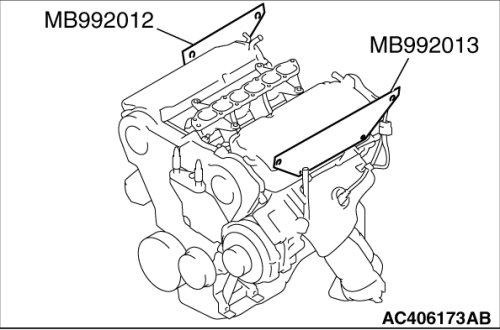

2. After removing the intake manifold plenum stay (rear) and the engine hanger, set special tool MB992012 and MB992013 to each cylinder head.









3. [Engine hanger MB991895 is used]

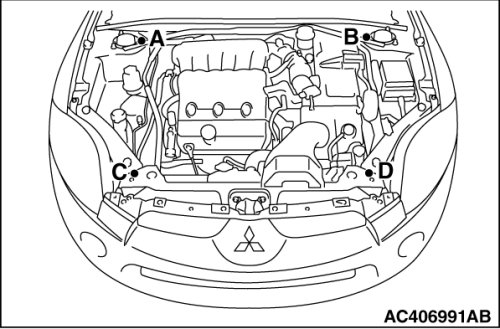

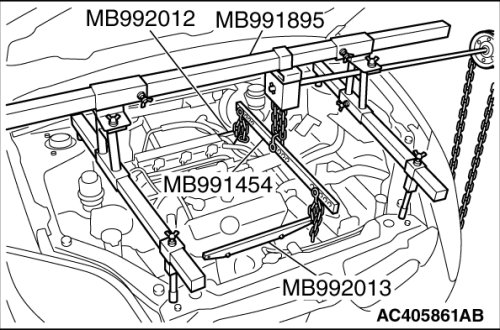

(1) Set special tool MB991895 to the front fender mounting bolts (A and B) and the radiator support upper insulator mounting bolts (C and D), which are located in the engine compartment, as shown.
(2) Set special tool MB991454 to hold the engine/transaxle assembly.













4. [Engine hanger MB991928 is used]

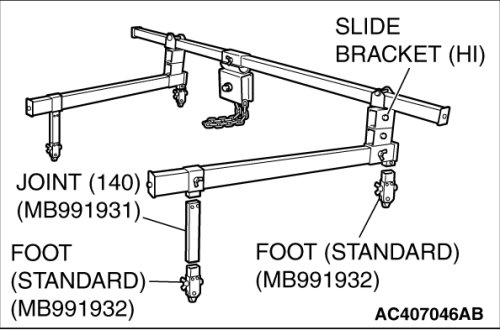

(1) Assemble the engine hanger (special tool MB991928). Set following parts to the base hanger.

- Slide bracket (HI)
- Foot (standard) (MB991932)
- Joint (140) (MB991931)

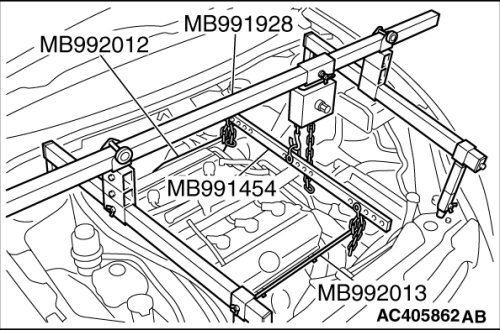

(2) Set the engine hanger (special tool MB991928) to the front fender mounting bolts (A and B) and the radiator support upper insulator mounting bolts (C and D), which are located in the engine compartment, as shown.
NOTE:
Adjust the engine hanger balance by sliding the slide bracket (HI).

(3)
(4) Set special tools MB991454 to hold the engine/transaxle assembly.

INSTALLATION SERVICE POINTS

]]A[[ TRANSAXLE MOUNT STOPPER INSTALLATION

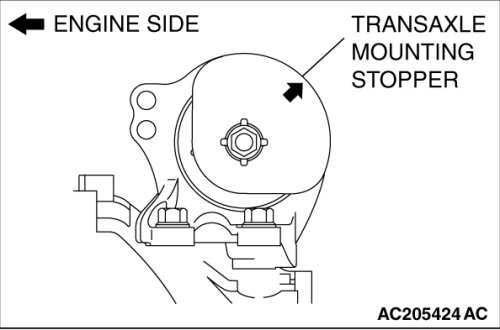

Install the transaxle mount stopper so that the arrow mark points as shown in the illustration.
