Hydraulic Hose: Service and Repair

REMOVAL AND INSTALLATION

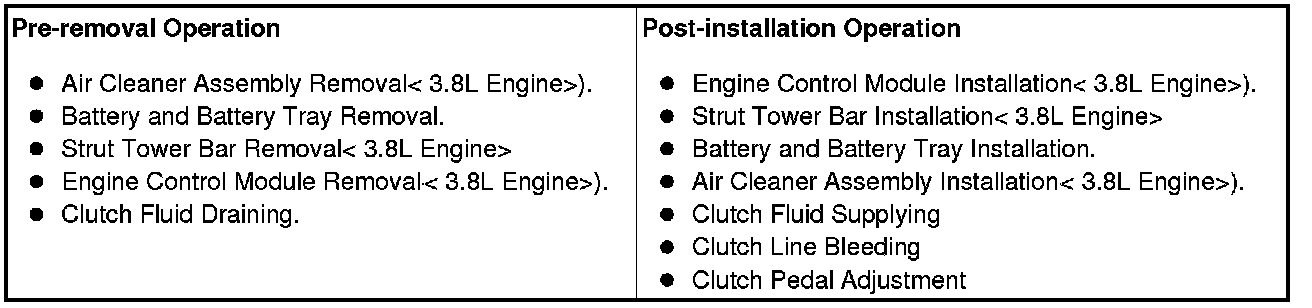

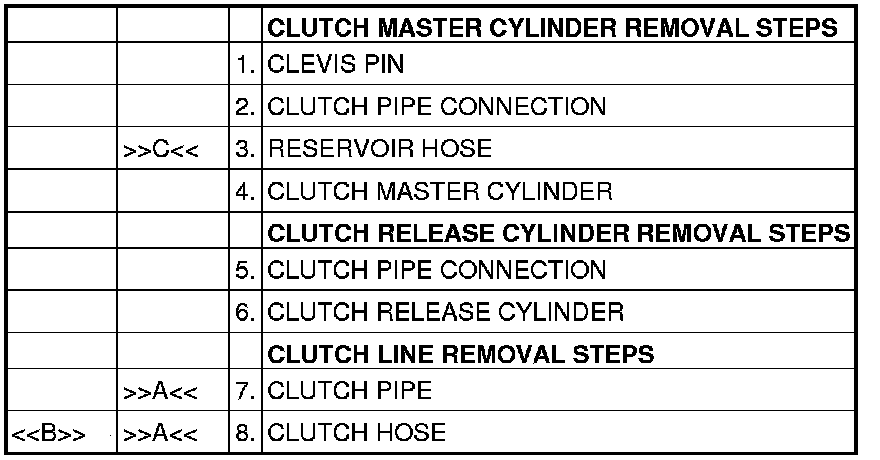

[5M/T]

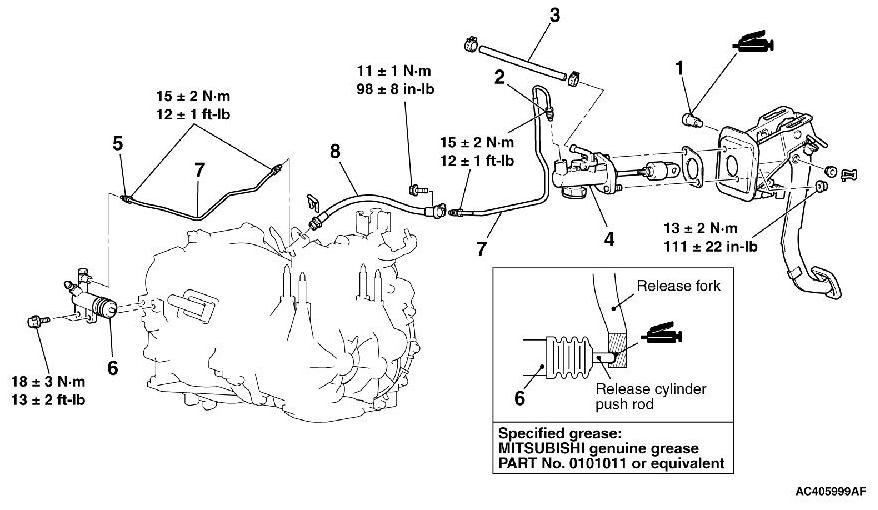

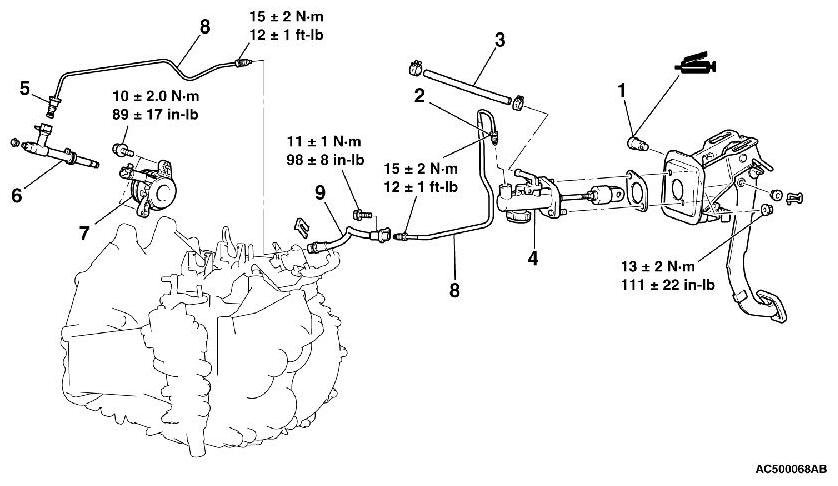

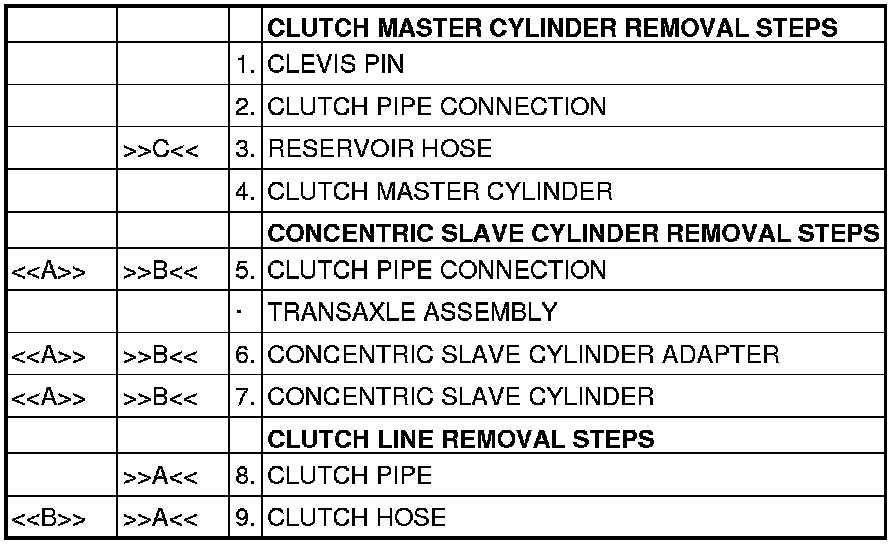

[6M/T]





REMOVAL SERVICE POINT

[[A]] CLUTCH PIPE CONNECTION/CONCENTRIC SLAVE CYLINDER ADAPTER/CONCENTRIC SLAVE CYLINDER REMOVAL





CAUTION:

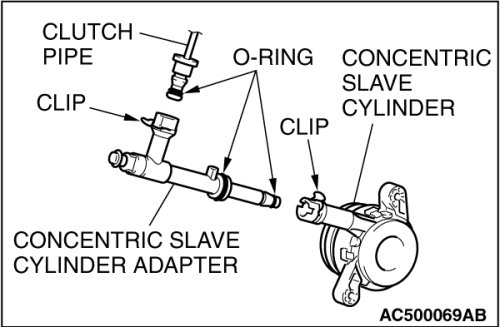

- Do not remove the O-rings and the clips from the clutch pipe, the concentric slave cylinder adapter and the concentric slave cylinder.
- If the O-rings or the clips of the clutch pipe, the concentric slave cylinder adapter and the concentric slave cylinder are damaged, replace each assembly.

[[B]] CLUTCH HOSE REMOVAL

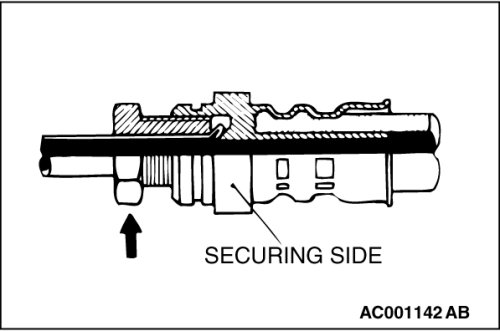

Holding the nut at the clutch hose side, loosen the flare nut on the clutch pipe.

INSTALLATION SERVICE POINT

]]A[[ CLUTCH HOSE/CLUTCH PIPE INSTALLATION





1. Temporarily tighten the clutch pipe flare nut by hand, and then tighten it to the specified torque, being careful that the clutch hose does not become twisted.
Tightening torque: 15± 2Nm (12± 1 ft-lb)
2. After tightening the clutch pipe flare nut, check to be sure there is no leakage of the clutch fluid.

]]B[[ CONCENTRIC SLAVE CYLINDER/CONCENTRIC SLAVE CYLINDER ADAPTER/CLUTCH PIPE CONNECTION INSTALLATION





CAUTION:

- Check that the O-rings and the clips are not damaged before installing the clutch pipe, the concentric slave cylinder adapter and the concentric slave cylinder.
- If the O-rings of the clutch pipe, the concentric slave cylinder adapter and the concentric slave cylinder and their installation positions are contaminated, clean with the clutch fluid before installation.

]]C[[ RESERVOIR HOSE INSTALLATION

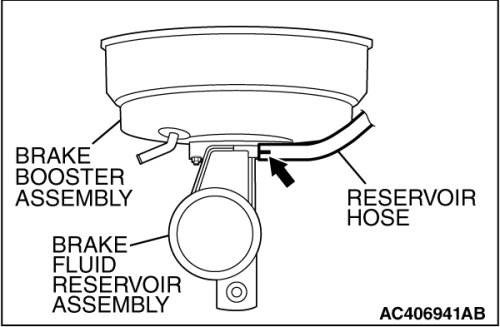

Install the reservoir hose to the brake fluid reservoir assembly so that the marking faces upward.
