Trailing Arm Removal and Installation

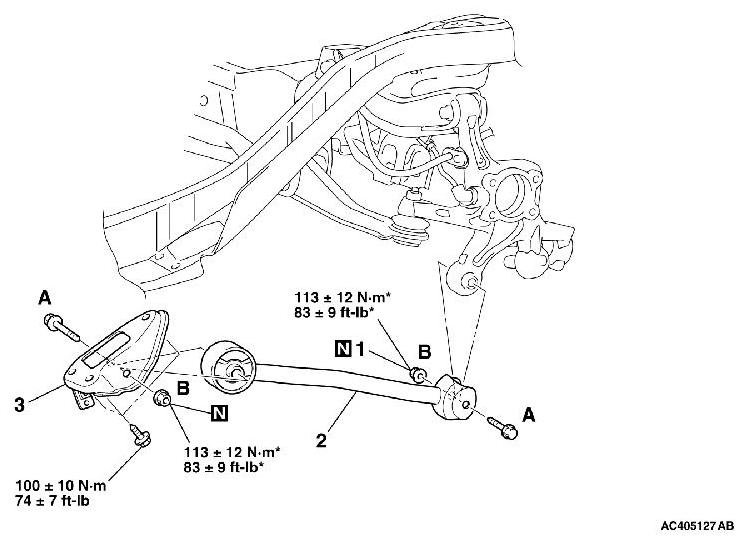

REMOVAL AND INSTALLATION

CAUTION:
*:
Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in an unladen condition.













NOTE:
Bolt A and nut B are interchangeable.
