Stabilizer Bar Inspection

INSPECTION

- Check the stabilizer bushings for wear and deterioration.
- Check the stabilizer bar for deterioration or damage.
- Check all bolts for condition and straightness.

STABILIZER BAR LINK BALL JOINT BREAKAWAY TORQUE CHECK

Required Special Tool:

- MB990326: Preload Socket

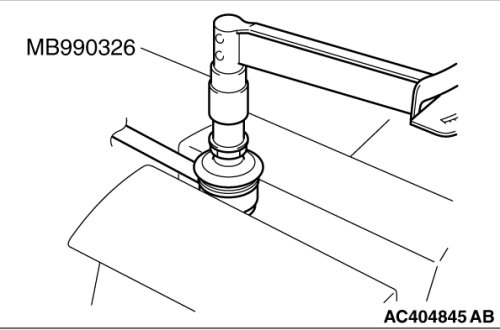

1. After shaking the ball joint stud several times, install the nut to the stud and use special tool MB990326 to measure the breakaway torque of the ball joint.
Standard value: 3.4 - 9.0Nm (30 - 80 in-lb)
2. When the measured value exceeds the standard value, replace the stabilizer bar link assembly.
3. When the measured value is lower than the standard value, check that the ball joint turns smoothly without excessive play. If so, it is possible to re-use that ball joint.

STABILIZER BAR LINK BALL JOINT DUST COVER CHECK

1. Check the dust cover for cracks or damage by pushing it with your finger.

2. If the dust cover is cracked or damaged, replace the stabilizer bar link assembly.
NOTE:
Cracks or damage of the dust cover may cause damage to the ball joint.
