Rear Suspension

GENERAL DESCRIPTION

A low-mount multilink suspension system is used to reduce road noise, making the vehicle quieter by all suspension arms except a trailing arm connected to the crossmembers with an elastic structure.

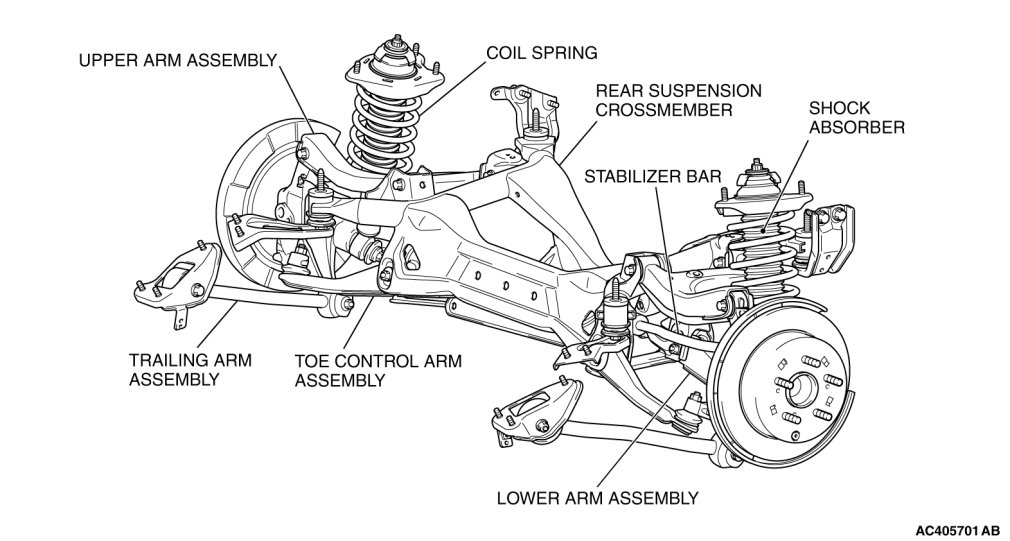

CONSTRUCTION DIAGRAM
