Front Suspension

GENERAL INFORMATION

The front suspension is a MacPherson strut with coil spring. The strut assembly is gas-filled hydraulic double-tube type.

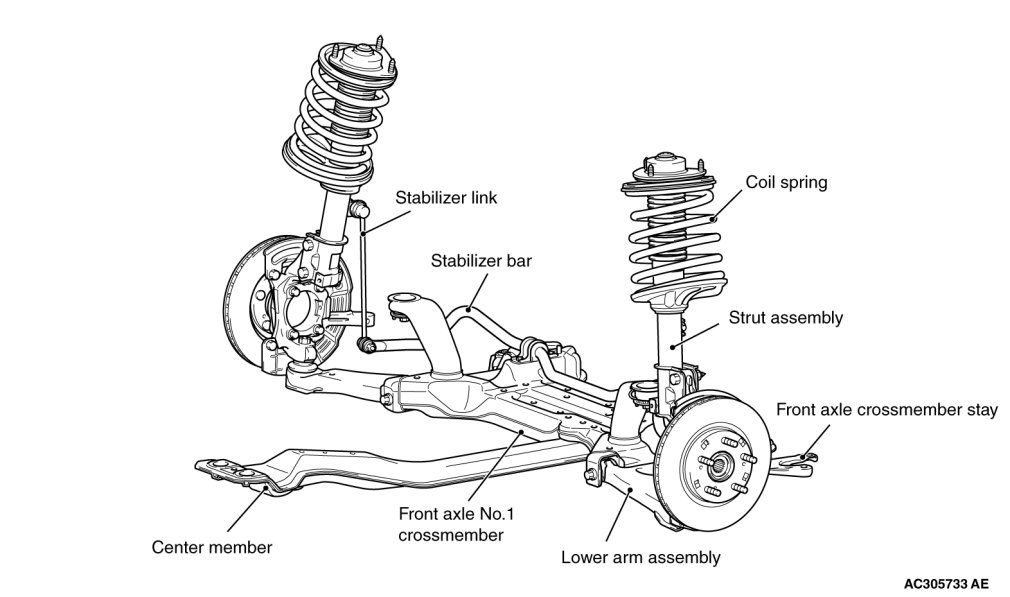

CONSTRUCTION DIAGRAM
