Upper Arm Assembly Removal and Installation

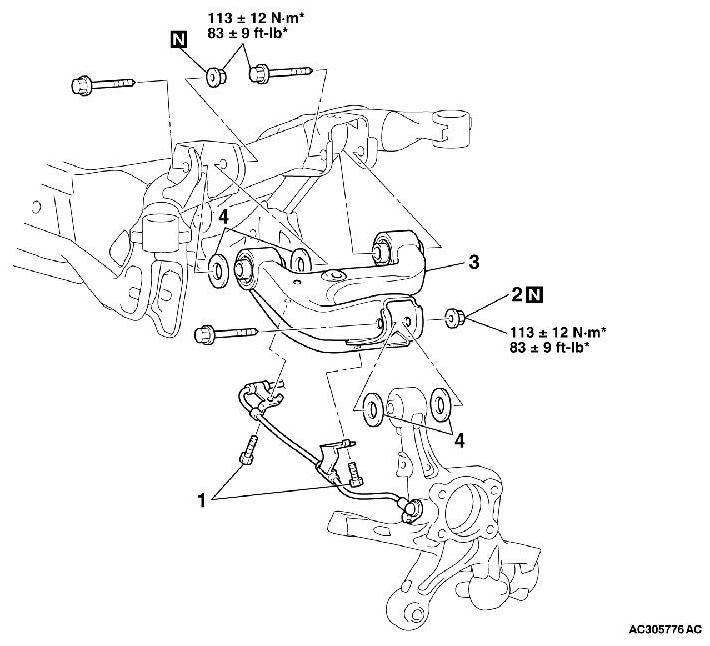

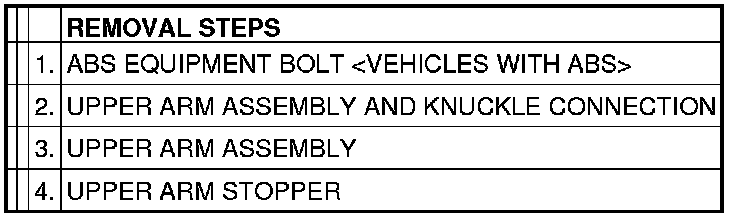

REMOVAL AND INSTALLATION

CAUTION:
*: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in an unladen condition.
