Eclipse Spyder L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Instrument Panel, Gauges and Warning Indicators
Instrument Panel, Gauges and Warning Indicators
SERVICE SPECIFICATIONS
[BATTERY]

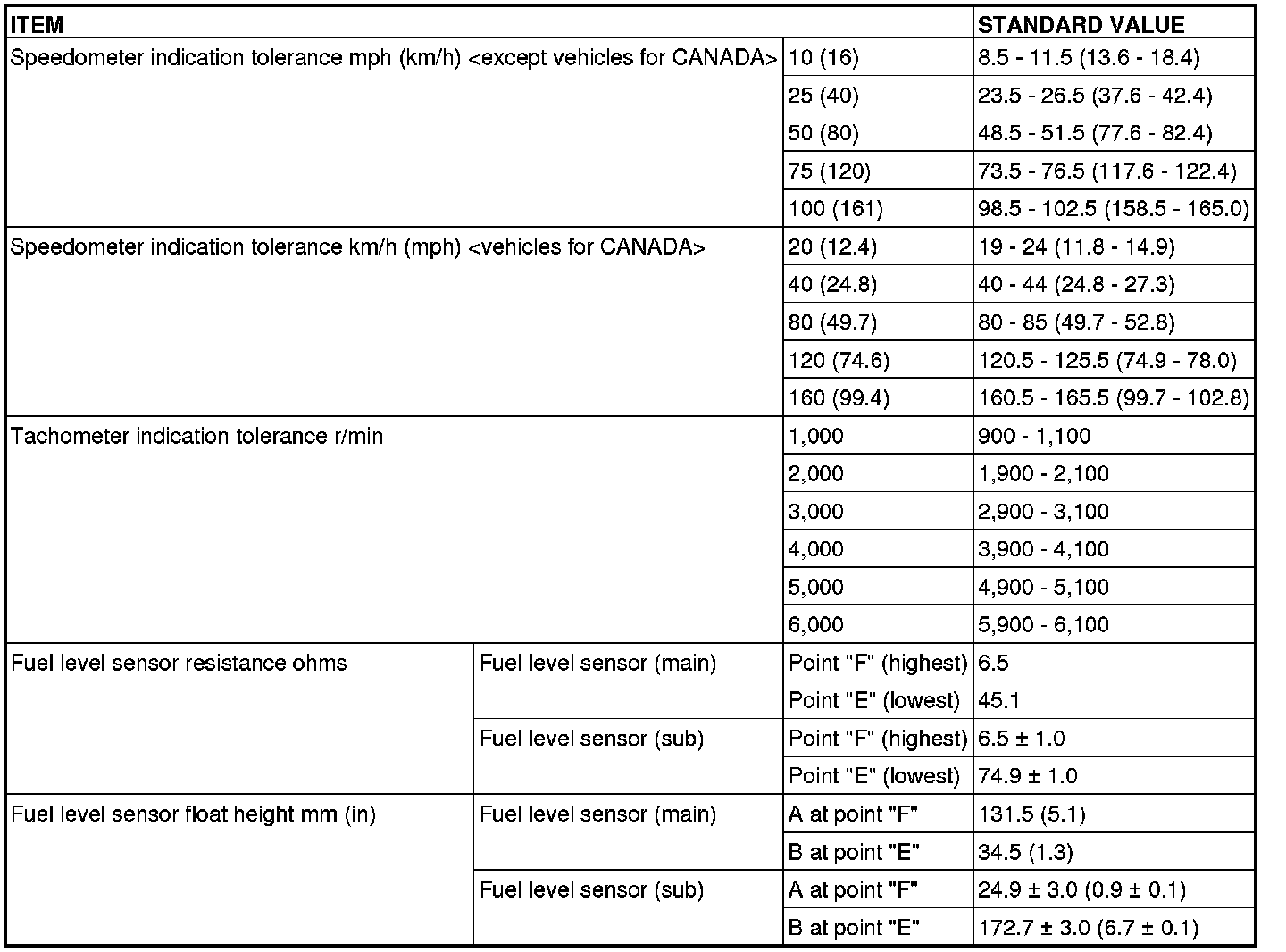

[COMBINATION METER]

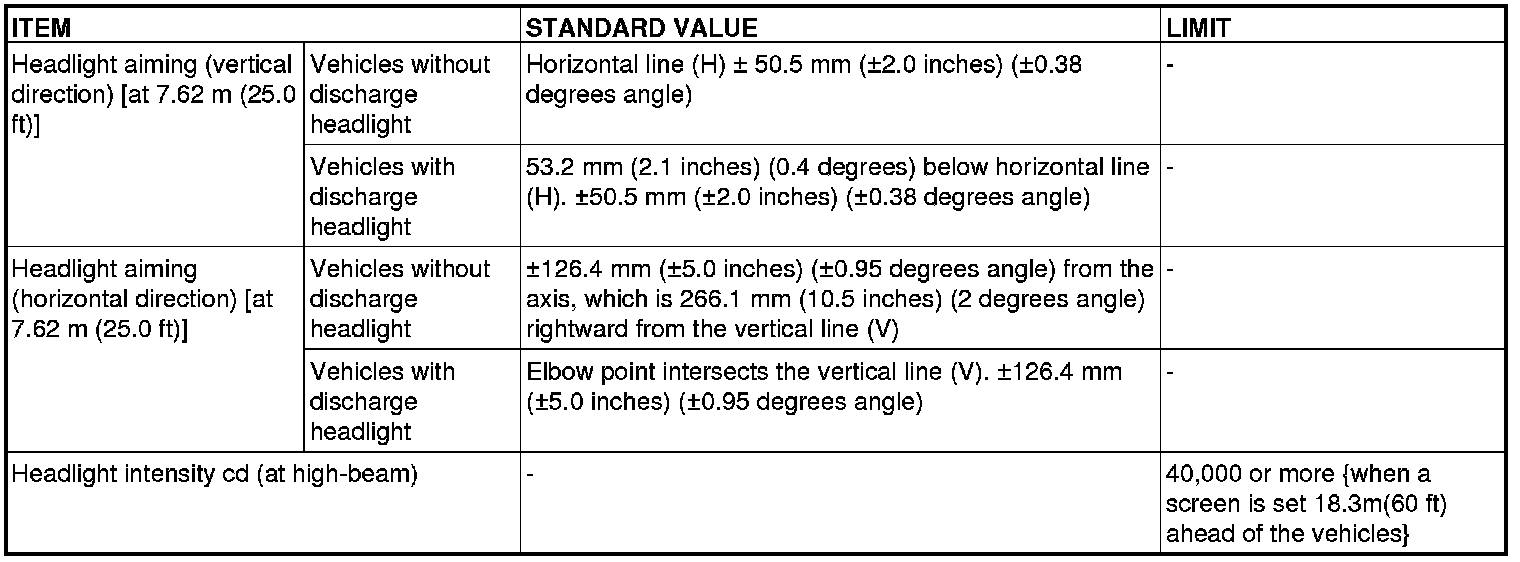

[HEADLIGHT]

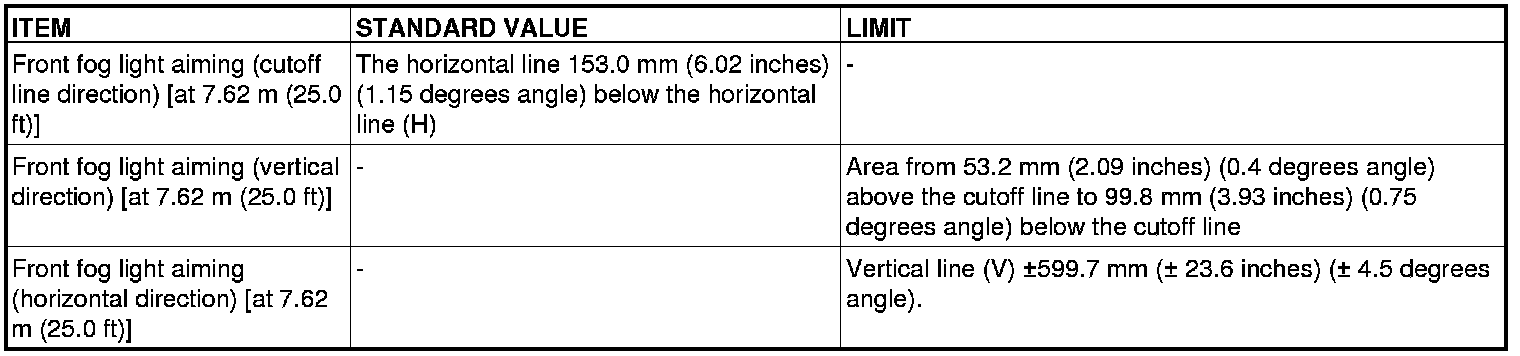

[FRONT FOG LIGHT]
