General Data and Specifications




[ECLIPSE SPYDER]

VEHICLES FOR USA, CANADA AND PUERTO RICO

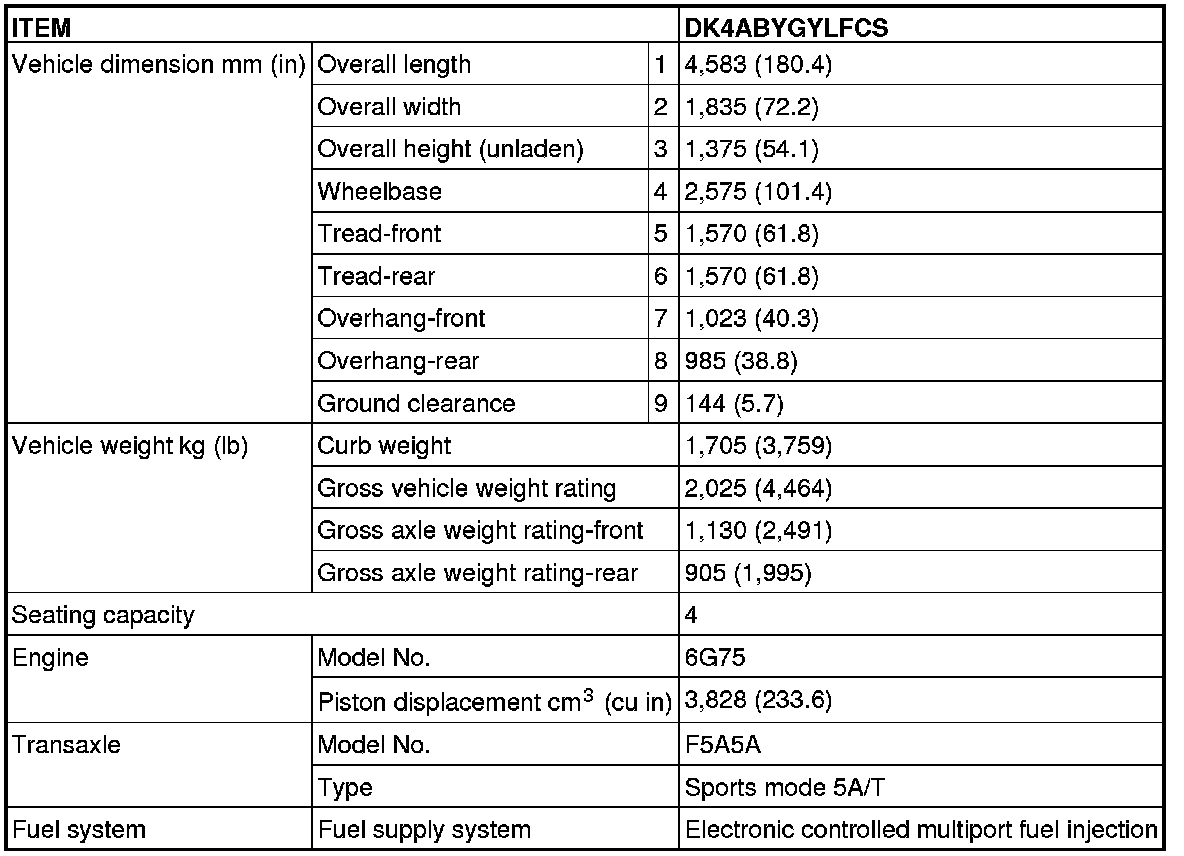

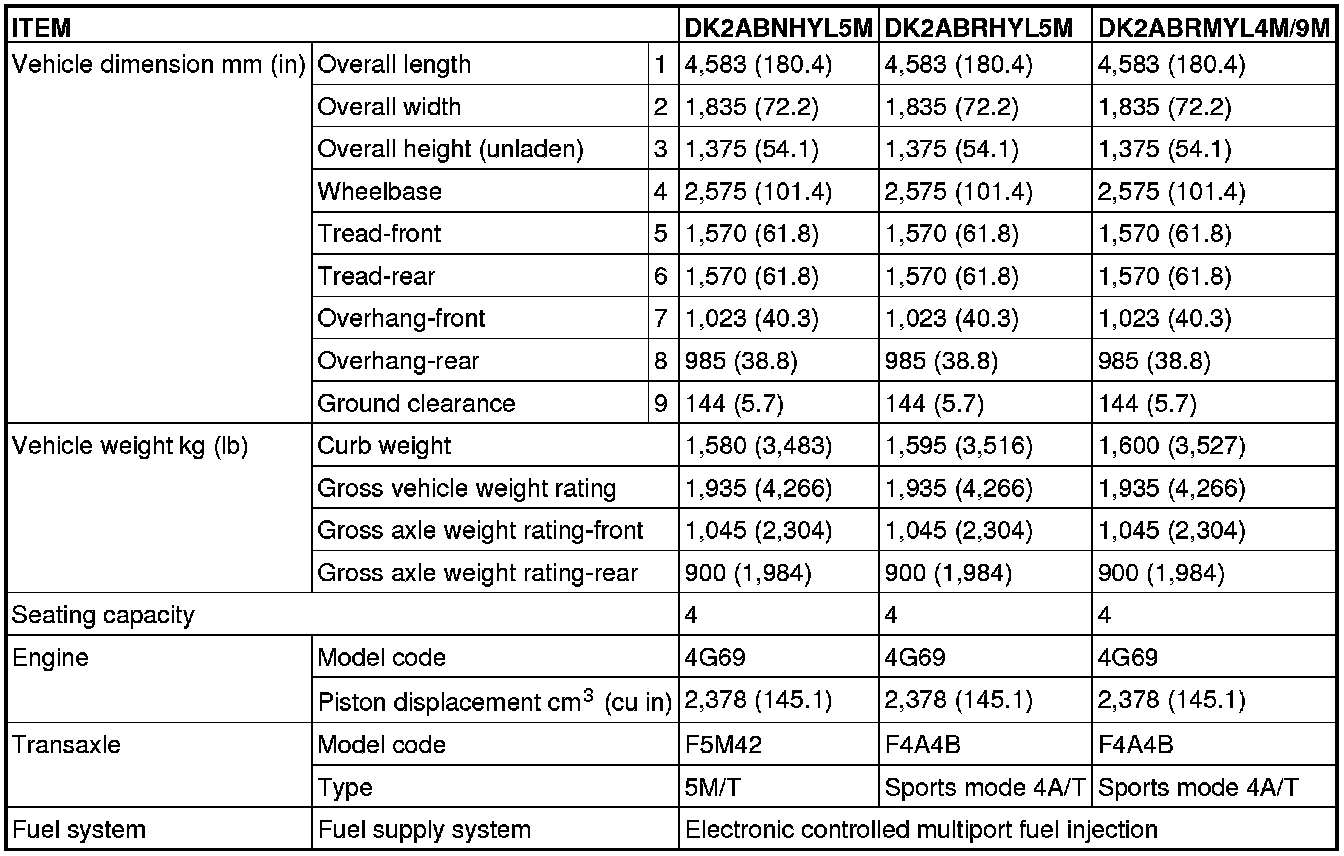

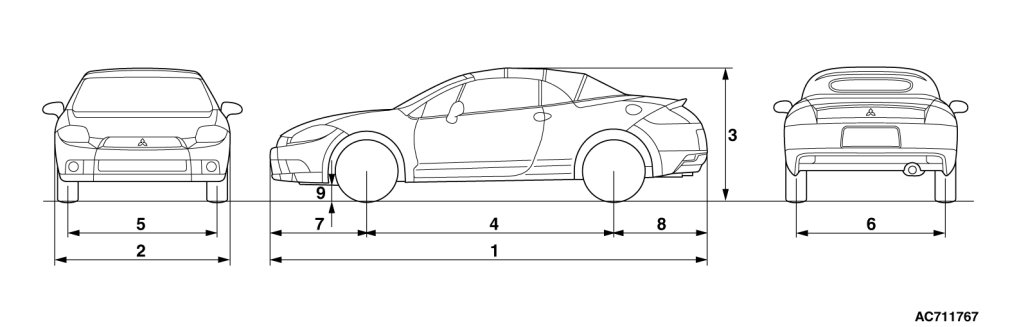

GENERAL SPECIFICATIONS (2.4L ENGINE)

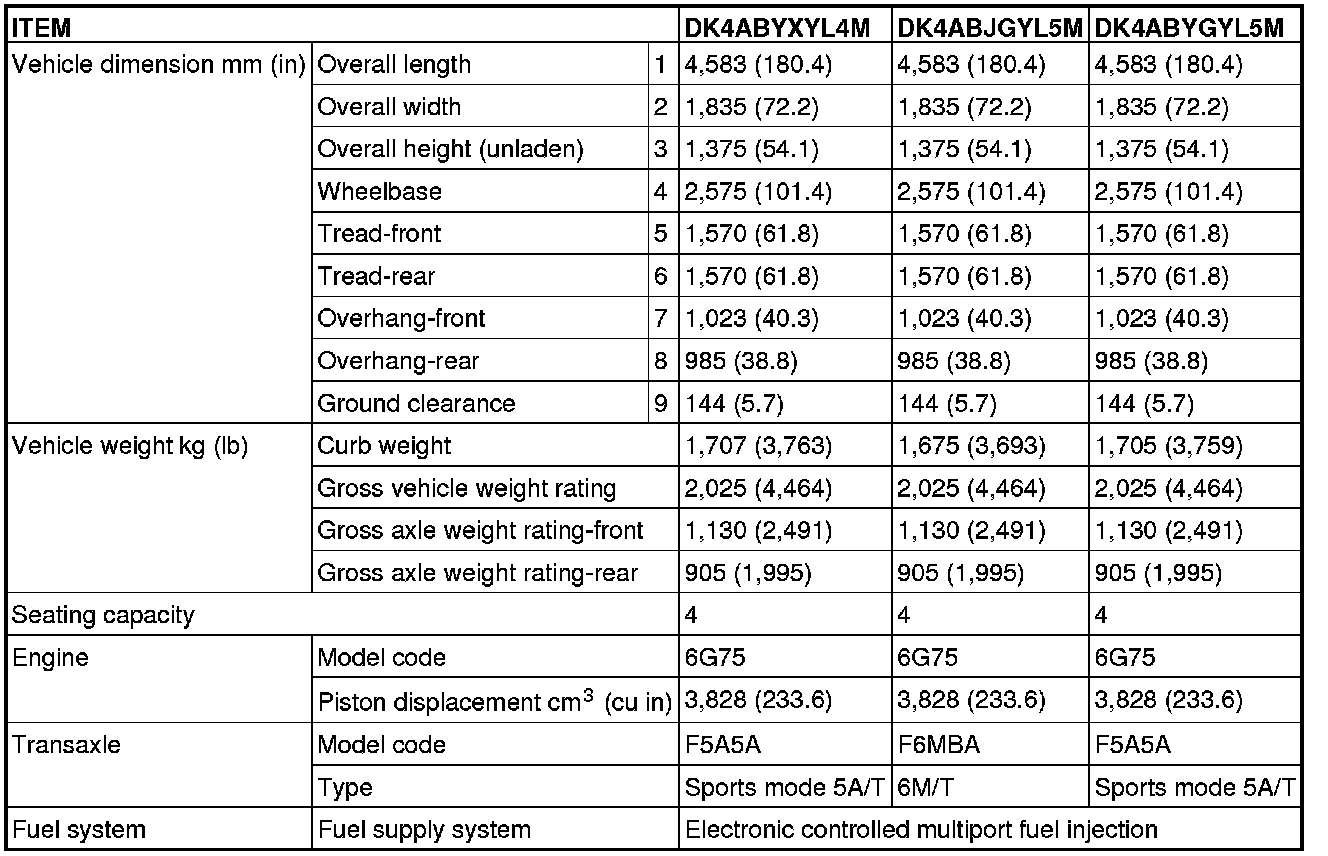

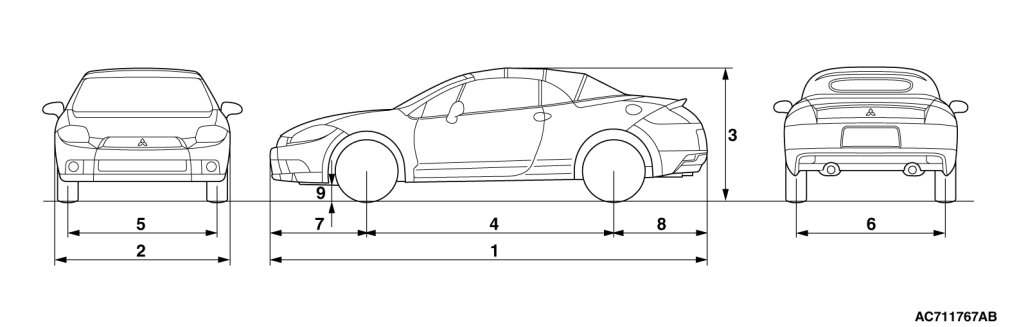

GENERAL SPECIFICATIONS (3.8L ENGINE)





VEHICLES FOR MEXICO
