Lateral Accelerometer: Service and Repair

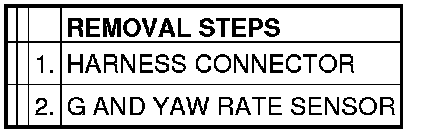

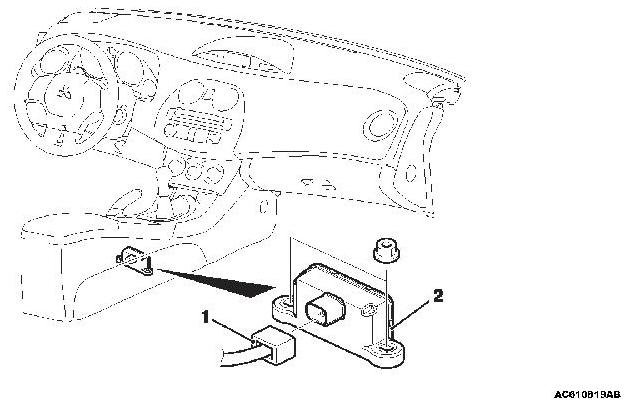

REMOVAL AND INSTALLATION

CAUTION:
Do not drop or shock the G and yaw rate sensor.

CAUTION:
Always carry out calibration if steering angle is adjusted (Refer to Testing and Inspection). This is necessary because the TCL/ASC-ECU should update the G and yaw rate sensor neutral point.
