Overhaul

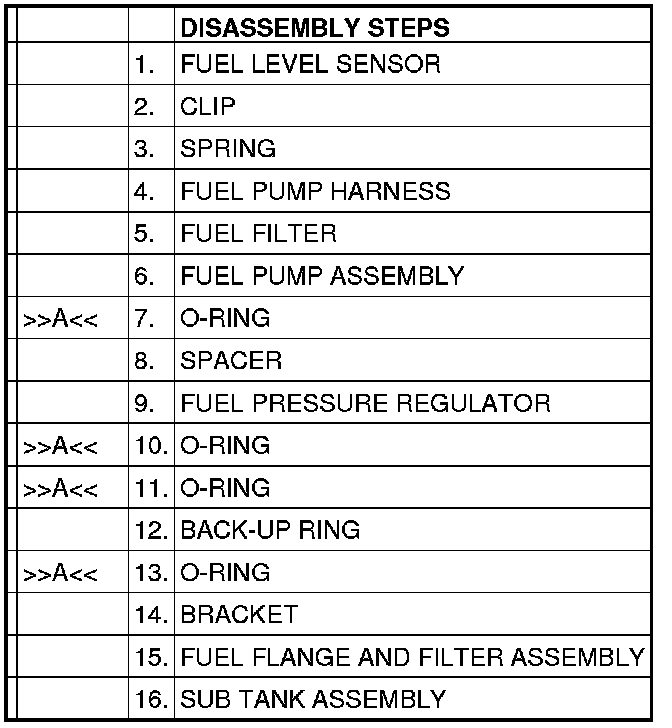

DISASSEMBLY AND ASSEMBLY

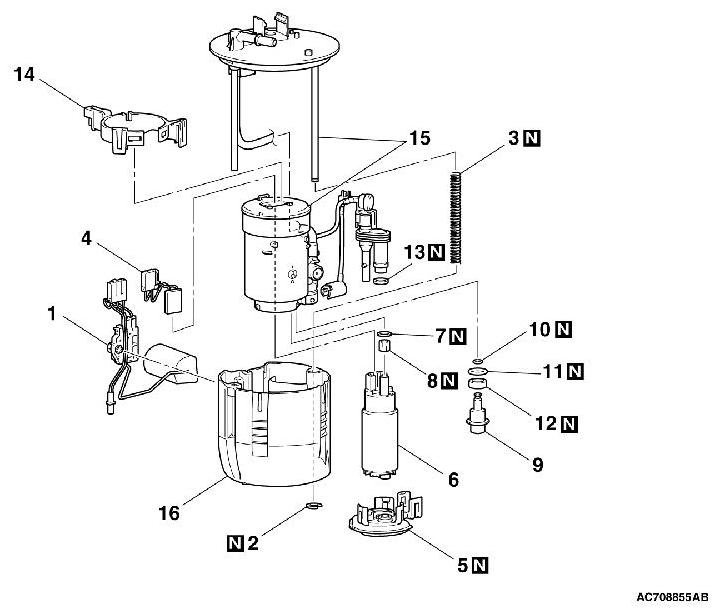

FUEL PUMP MODULE

NOTE:
For the removal and installation procedures, refer to the fuel pump module replacement procedure in On-vehicle Service (Refer to Removal and Replacement).









ASSEMBLY SERVICE POINT

]]A[[ O-RING INSTALLATION

Apply a gasoline on the O-ring before mounting them to prevent damage or twisting.
