Vehicles With Halogen Type Headlight

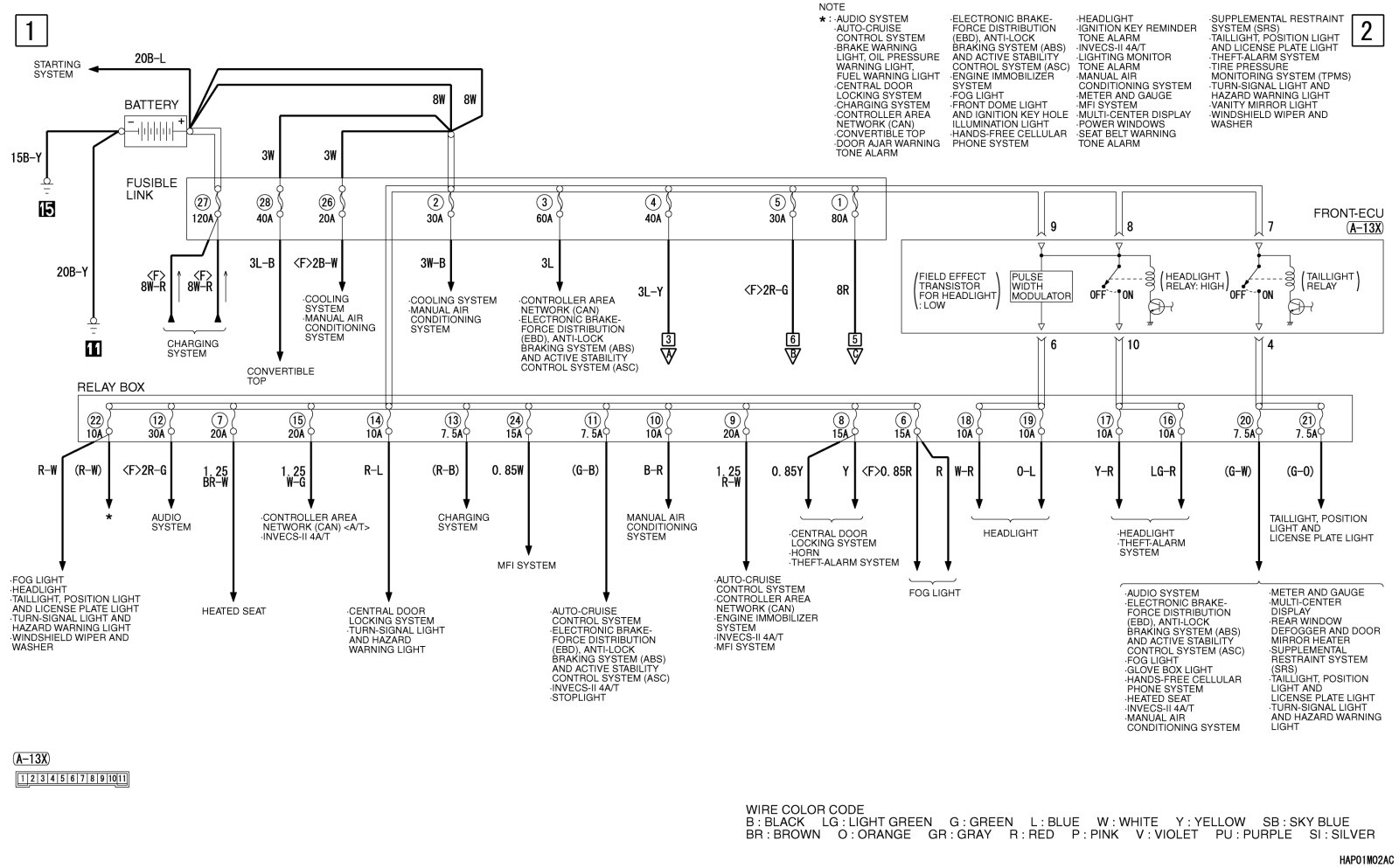

POWER DISTRIBUTION SYSTEM [ECLIPSE SPYDER (VEHICLES WITH HALOGEN TYPE HEADLIGHT)]
