General Specification(s)




GENERAL SPECIFICATION

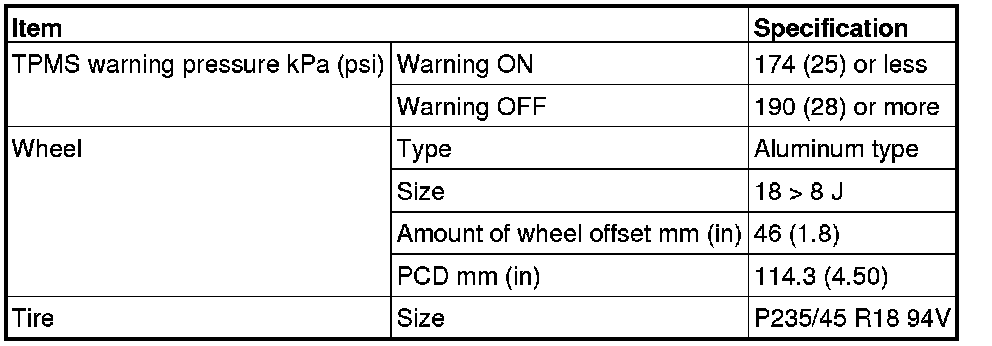

Road wheel and road tire





NOTE:
PCD (Pitch Circle Diameter) indicates the pitch circle diameter of the wheel installation holes.

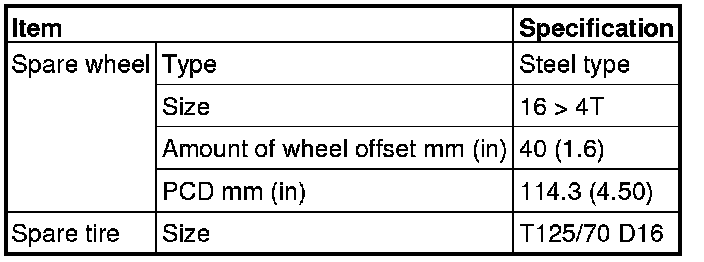

Spare wheel and spare tire





NOTE:
PCD (Pitch Circle Diameter) indicates the pitch circle diameter of the wheel installation holes.
