Tail Lamp: Service and Repair

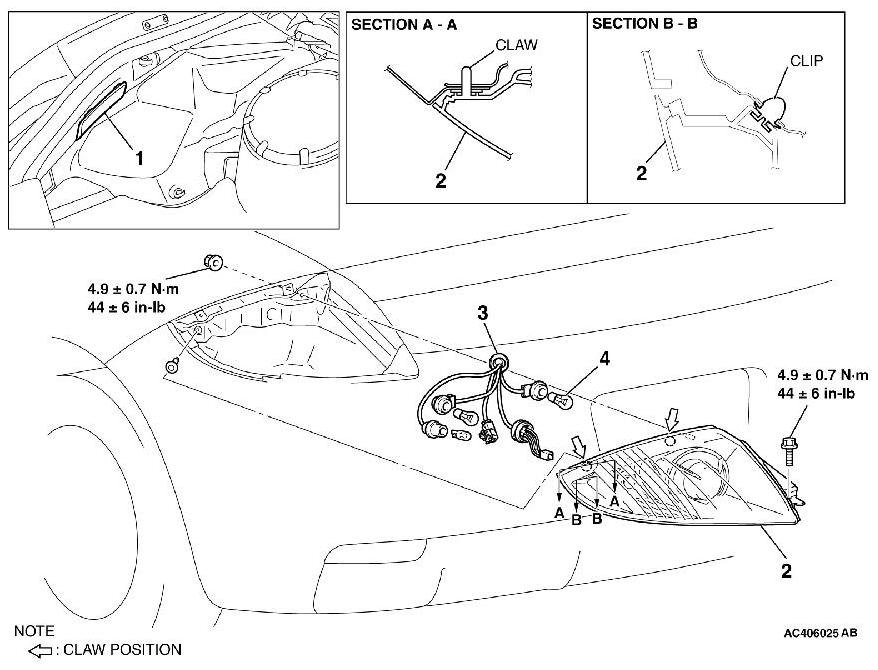

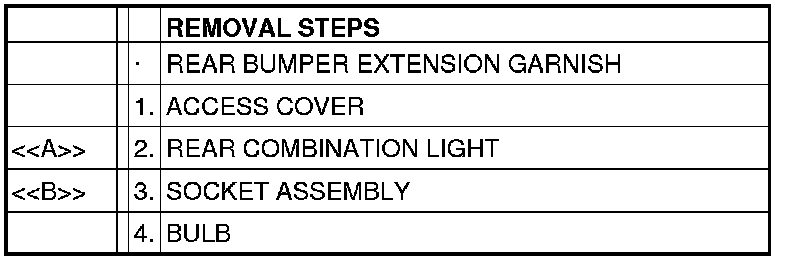

REMOVAL AND INSTALLATION









Required Special Tool:

MB990784: Ornament Remover

REMOVAL SERVICE POINTS

[[A]] REAR COMBINATION LIGHT REMOVAL

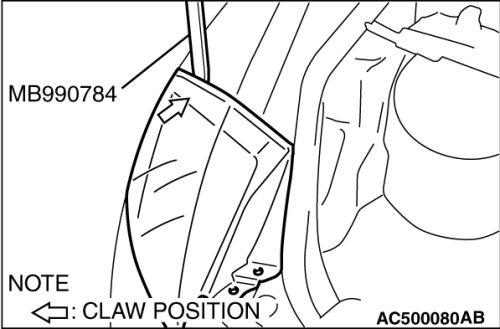

Before removing the rear combination light, disengage the claw shown in the illustration using special tool MB990784.

[[B]] SOCKET ASSEMBLY REMOVAL

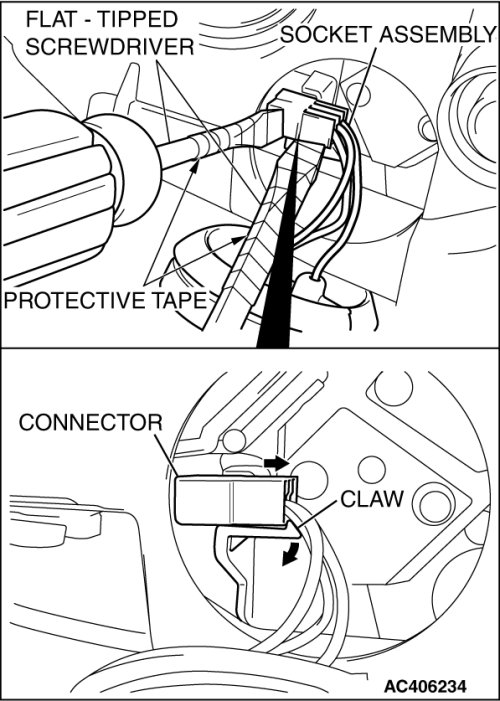

Remove the socket assembly connector using a flat-tipped screwdriver as shown.
