Condenser Fan Motor: Testing and Inspection




INSPECTION

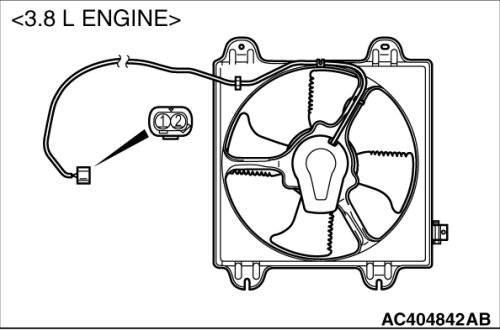

CONDENSER FAN MOTOR CHECK





Check to be sure that the condenser fan motor operates when battery voltage is applied to terminal 2 and terminal 1 grounded.
