Air Door Actuator / Motor: Service and Repair

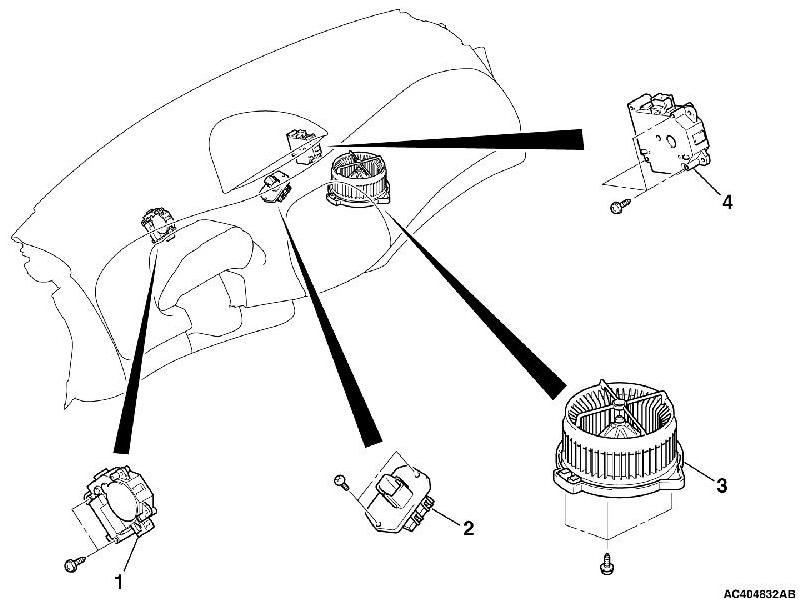

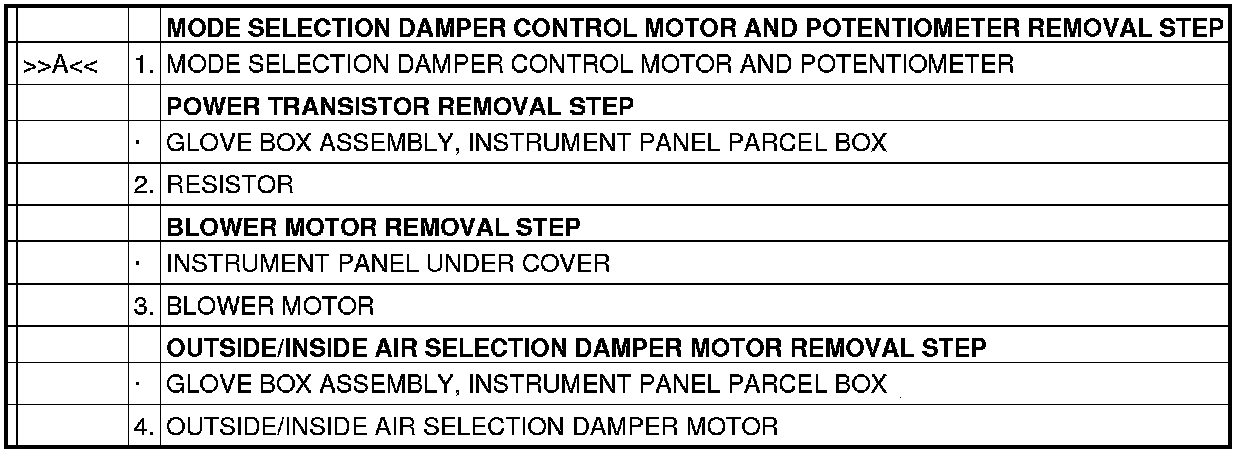

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

]]A[[ MODE SELECTION DAMPER CONTROL MOTOR AND POTENTIOMETER INSTALLATION

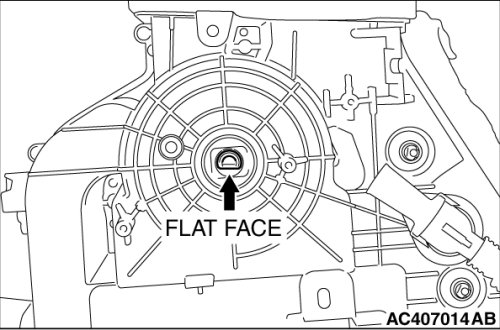

Place the flat face as shown downward and install.
