Rear Crankshaft Main Bearing Seal: Service and Repair

REMOVAL AND INSTALLATION

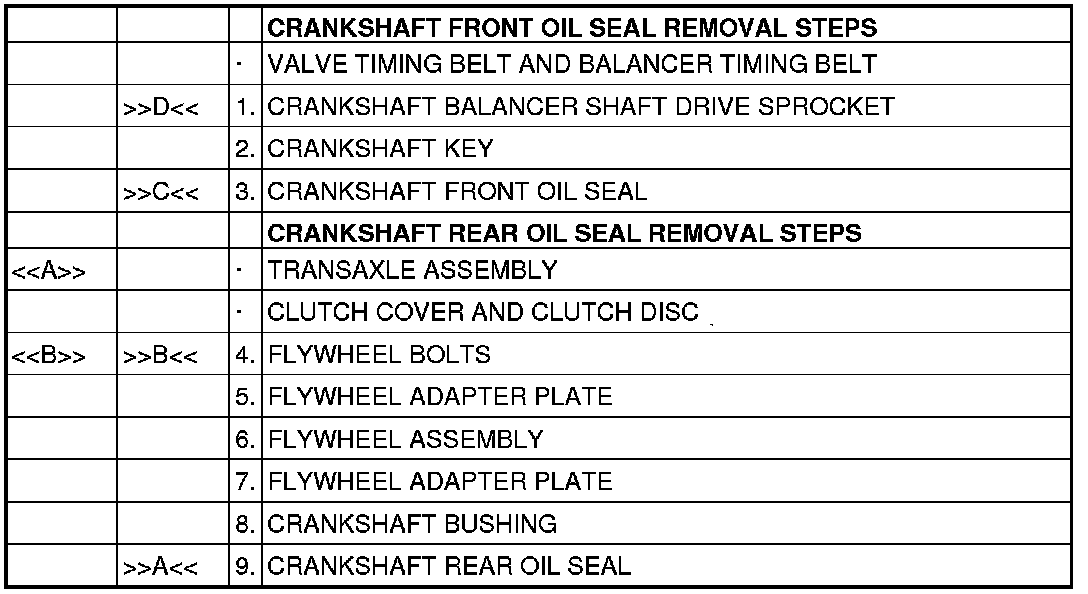

[M/T]

- MB990938: Installer Bar
- MD998285: Crankshaft Front Oil Seal Guide
- MD998375: Crankshaft Front Oil Seal Installer
- MD998776: Crankshaft Rear Oil Seal Installer
- MD998781: Flywheel Stopper

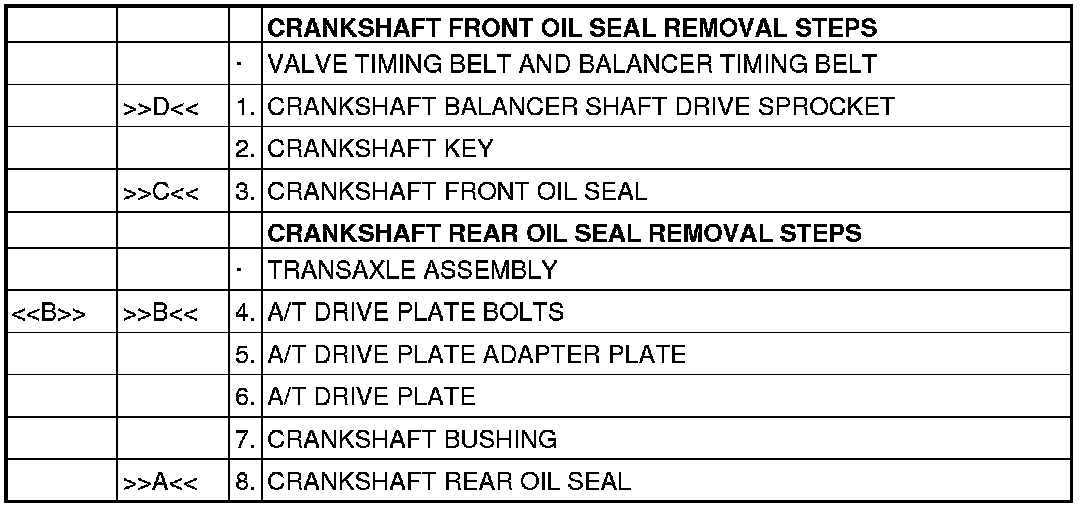

[A/T]

CAUTION:
Do not remove the flywheel bolt. If this bolt is removed, the flywheel assembly will become out of balance and damaged.

F5M42.

[[B]] FLYWHEEL BOLTS/A/T DRIVE PLATE BOLTS REMOVAL

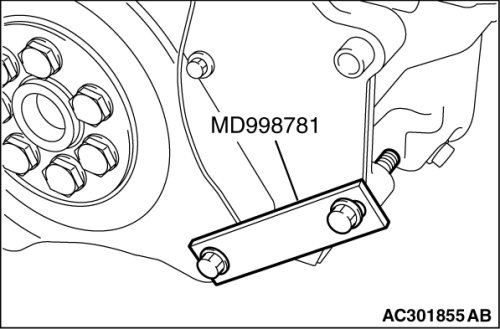

1. Use special tool MD998781 to secure the flywheel assembly or A/T drive plate.
2. Remove the flywheel bolts or A/T drive plate bolts.

INSTALLATION SERVICE POINTS

]]A[[ CRANKSHAFT REAR OIL SEAL INSTALLATION

1. Apply a small amount of engine oil to the entire inner diameter of the oil seal lip.

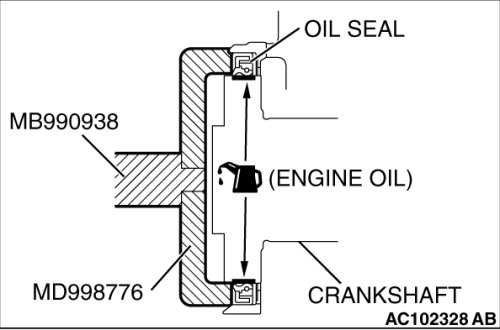

2. Use special tools MB990938 and MD998776 to press-fit the oil seal.

]]B[[ FLYWHEEL BOLTS/A/T DRIVE PLATE BOLTS INSTALLATION

1. Use special tool MD998781 to secure the flywheel assembly or A/T drive plate in the same manner as removal.
2. Tighten the flywheel bolts or A/T drive plate bolts to the specified torque.
Tightening torque: 132± 5Nm (98± 3 ft-lb)

]]C[[ CRANKSHAFT FRONT OIL SEAL INSTALLATION

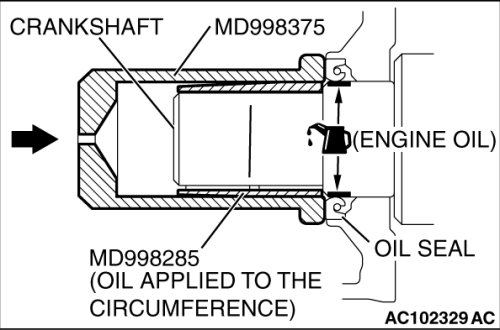

1. Apply a small amount of engine oil to the outer diameter of special tool MD998285 and install it to the crankshaft.
2. Apply a small amount of engine oil to the entire inner diameter of the oil seal lip.
3. Use special tool MD998375 to press-fit the oil seal.

]]D[[ CRANKSHAFT BALANCER SHAFT DRIVE SPROCKET INSTALLATION

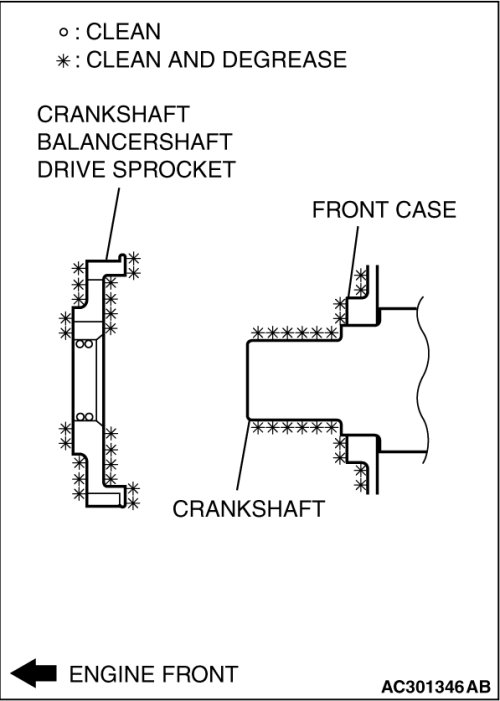

1. Clean or degrease the front case, the crankshaft and the crankshaft balancer shaft drive sprocket as shown.
NOTE:
Also clean the degreased surfaces.

2. Install the crankshaft balancer shaft drive sprocket in the direction shown in the illustration.
