Engine Mount: Description and Operation

GENERAL DESCRIPTION

- The engine front mounting bracket is a dome-shaped fluid-filled mount for improved responsiveness during acceleration and more stable vehicle performance against road disturbances.
- The liquid-filled transaxle mounting body side bracket improves riding comfort by its refined insulator.
- A roll stopper bracket in the upper area limits engine rolling. Furthermore, large diameter insulator reduces idle vibration.

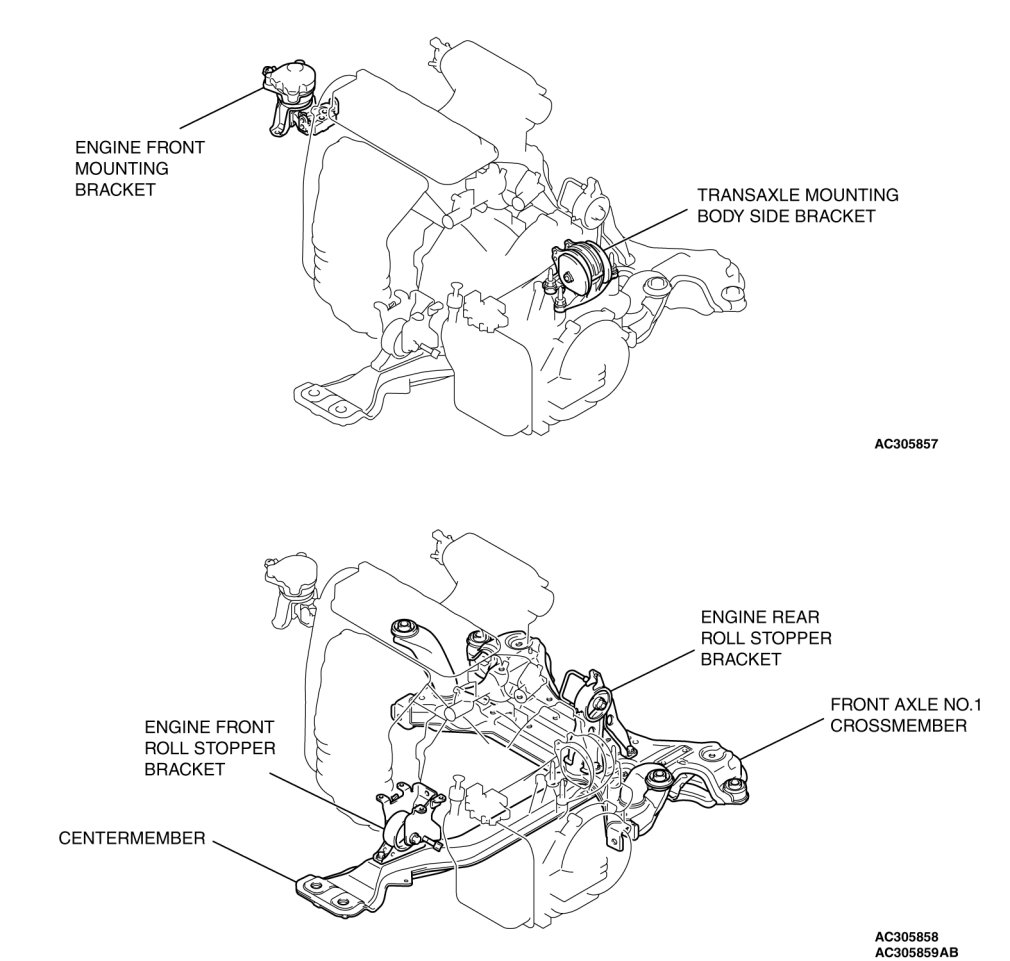

CONSTRUCTION DIAGRAM

[2.4L ENGINE]





[3.8L ENGINE]
