Engine: Description and Operation

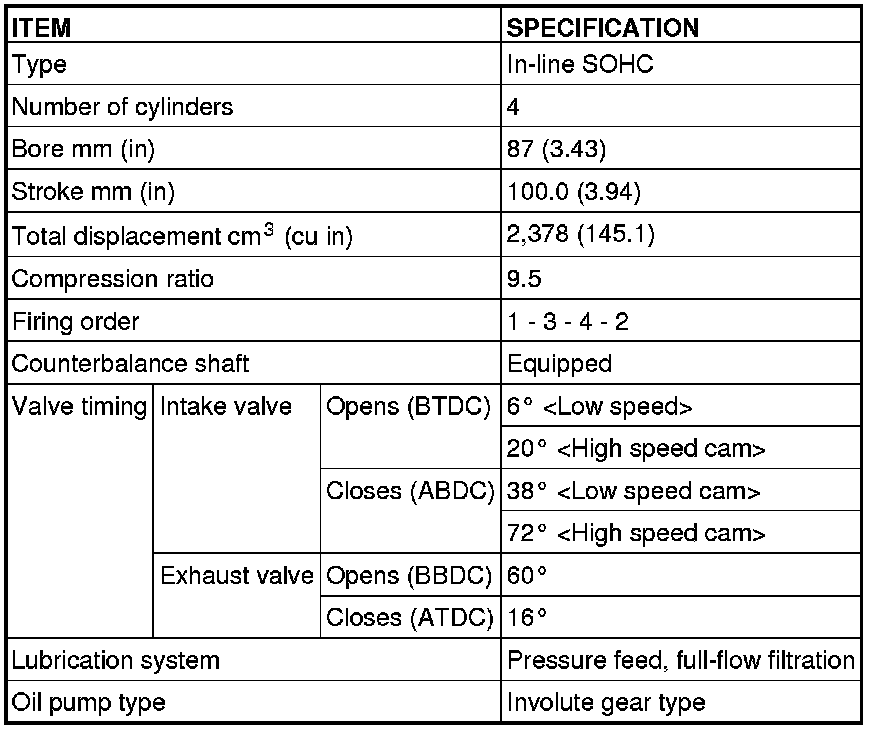

GENERAL DESCRIPTION

The 4G69 (2.4L) engine is an in-line four cylinder engine. The cylinder numbers are assigned as 1 - 2 - 3 - 4 from the front of the engine (timing belt side).
This engine is fired in the order of the 1, 3, 4 and 2 cylinders.
