Thermostat: Service and Repair

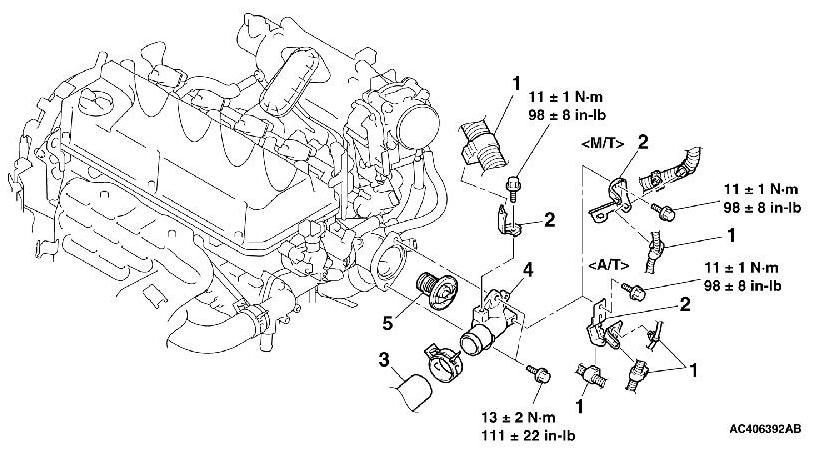

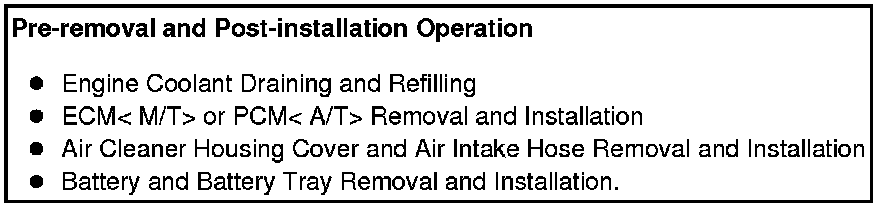

REMOVAL AND INSTALLATION [2.4L ENGINE]

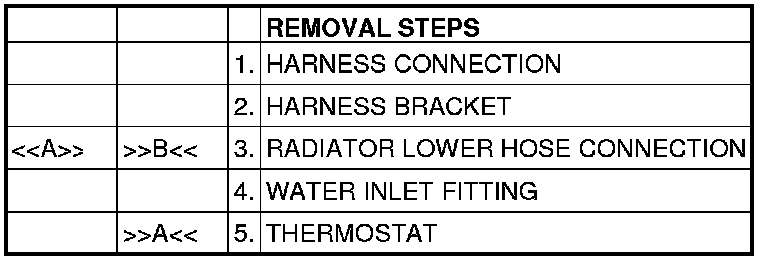

REMOVAL SERVICE POINT

[[A]] RADIATOR LOWER HOSE DISCONNECTION





Make mating marks on the radiator hose and the hose clamp. Disconnect the radiator hose.

INSTALLATION SERVICE POINTS

]]A[[ THERMOSTAT INSTALLATION

CAUTION:
Make absolutely sure that no oil adheres to the rubber ring of the thermostat.
Also do not fold or scratch the rubber ring during installation.

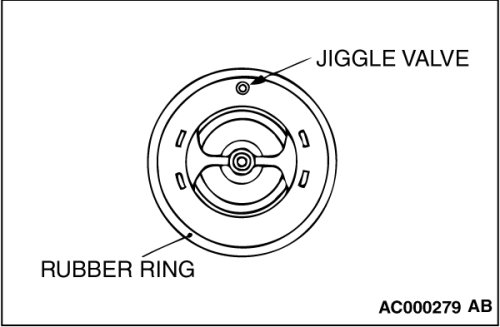

Install the thermostat so that the jiggle valve is facing straight up. Be careful not to fold or scratch the rubber ring.

]]B[[ RADIATOR LOWER HOSE CONNECTION





1. Insert each hose as far as the projection of the water inlet fitting.
2. Align the mating marks on the radiator hose and hose clamp, and then connect the radiator hose.
