Vehicles With Discharge Type Headlight

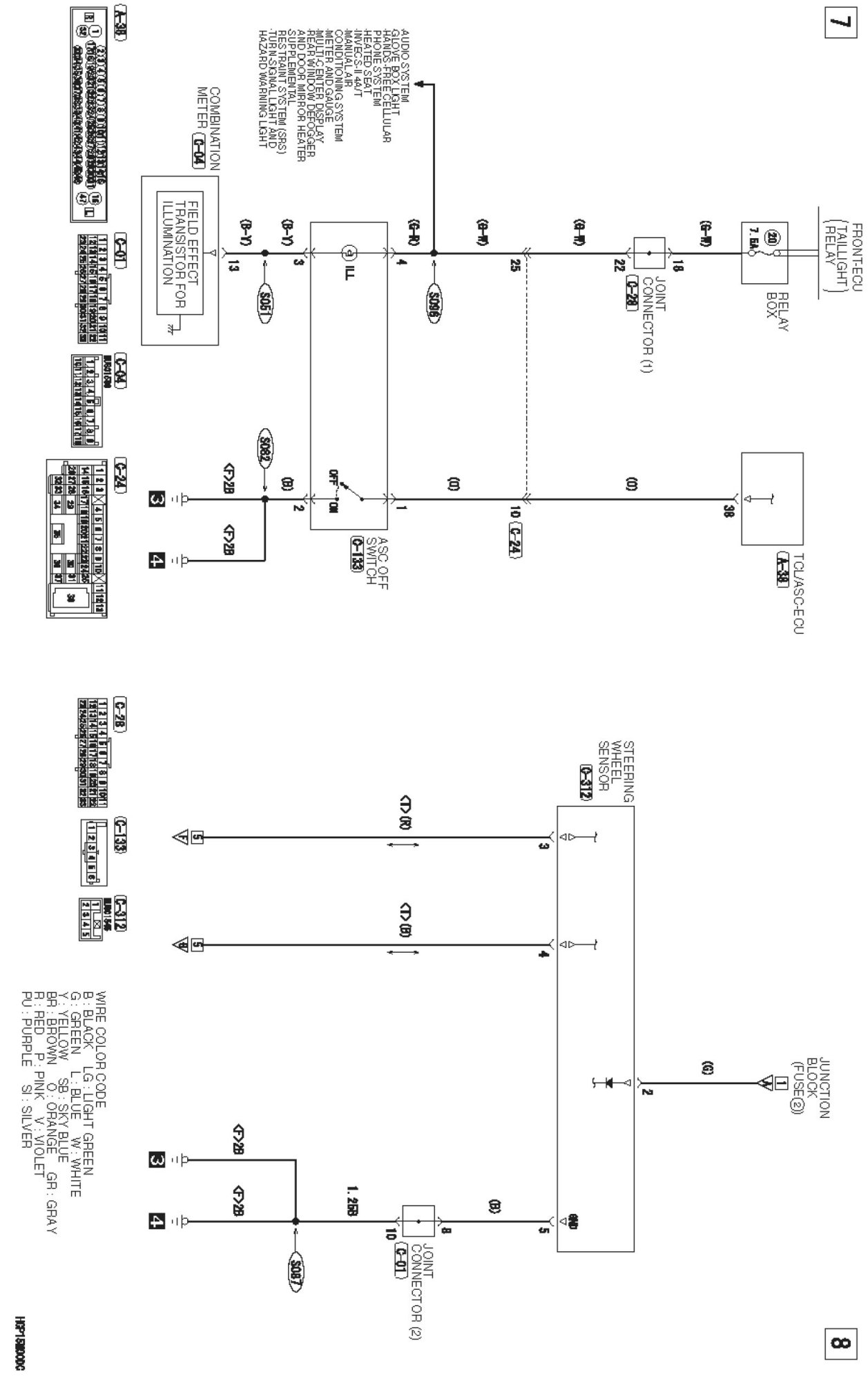

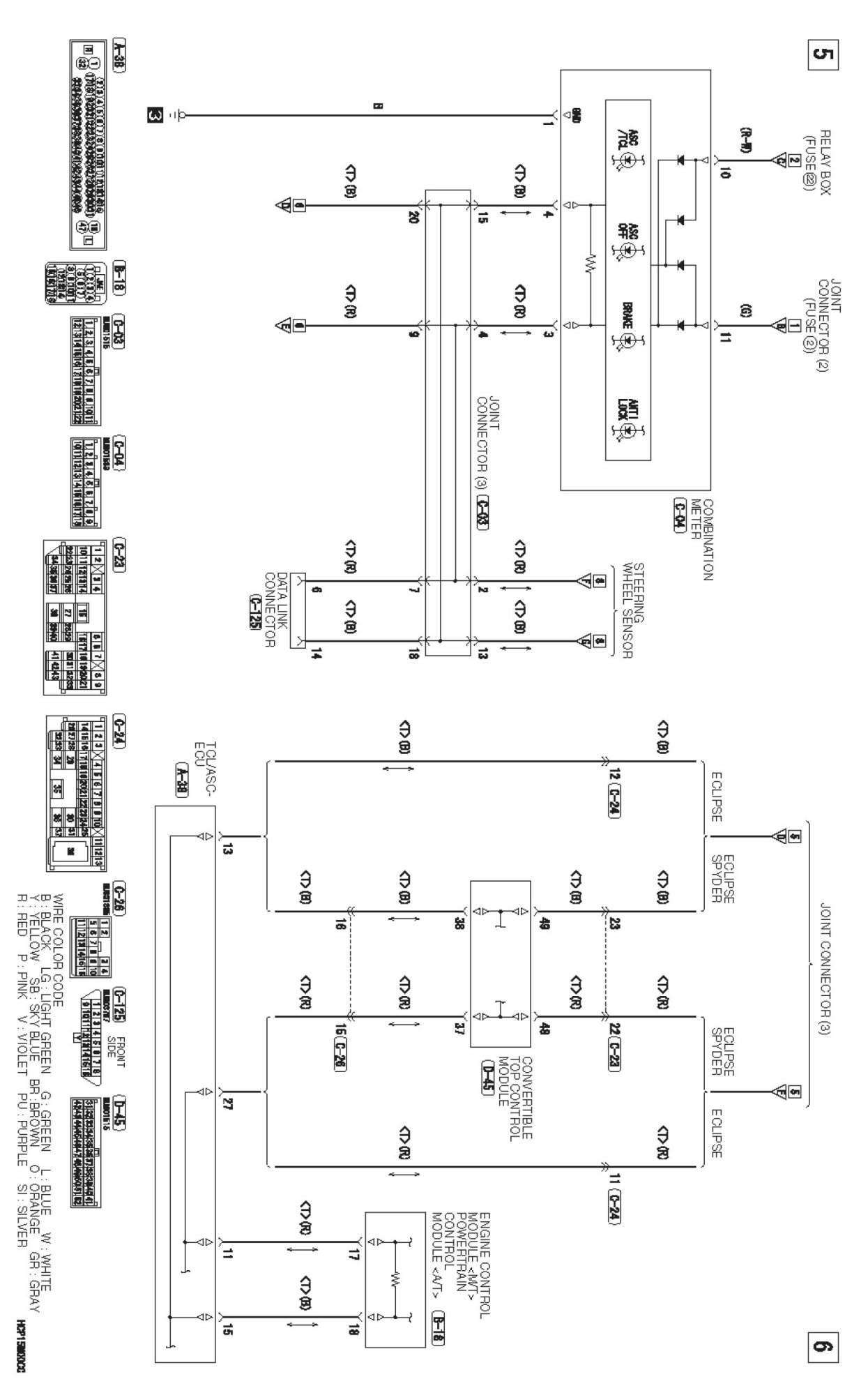

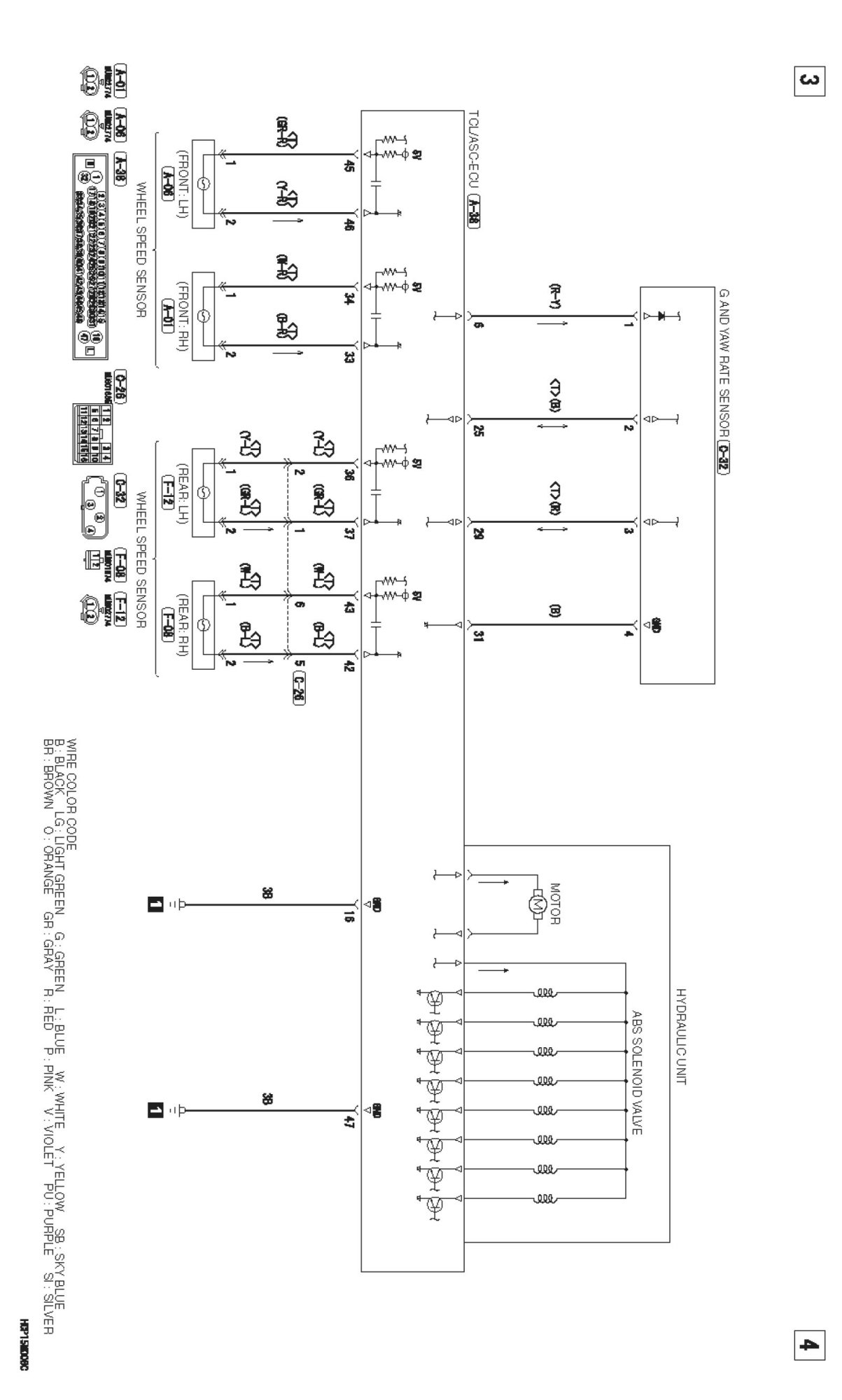

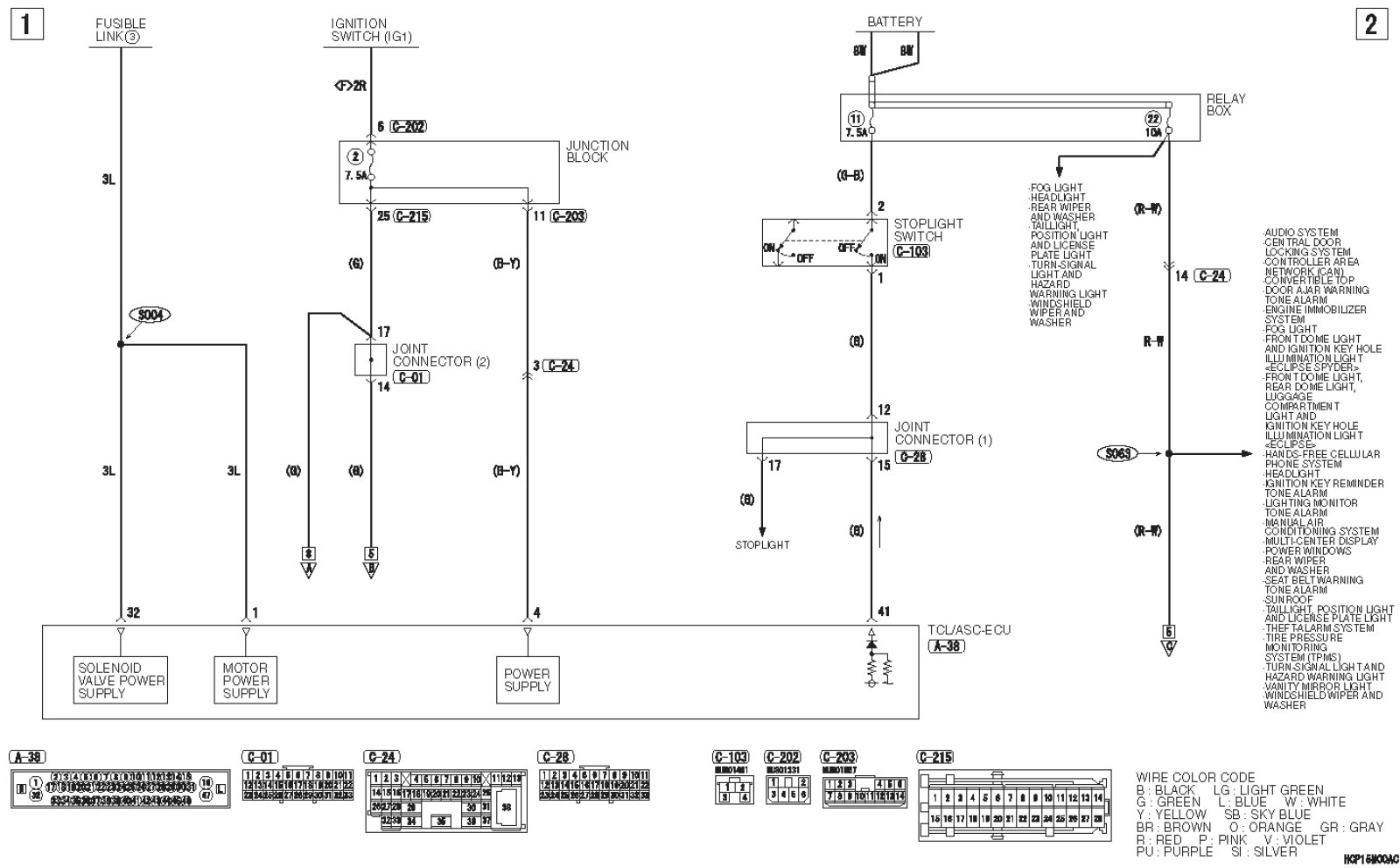

ELECTRONIC BRAKE-FORCE DISTRIBUTION
(EBD), ANTI-LOCK BRAKING SYSTEM (ABS) AND ACTIVE STABILITY CONTROL SYSTEM (ASC) [VEHICLES WITH DISCHARGE TYPE HEADLIGHT ]
