Eclipse Spyder L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
>>

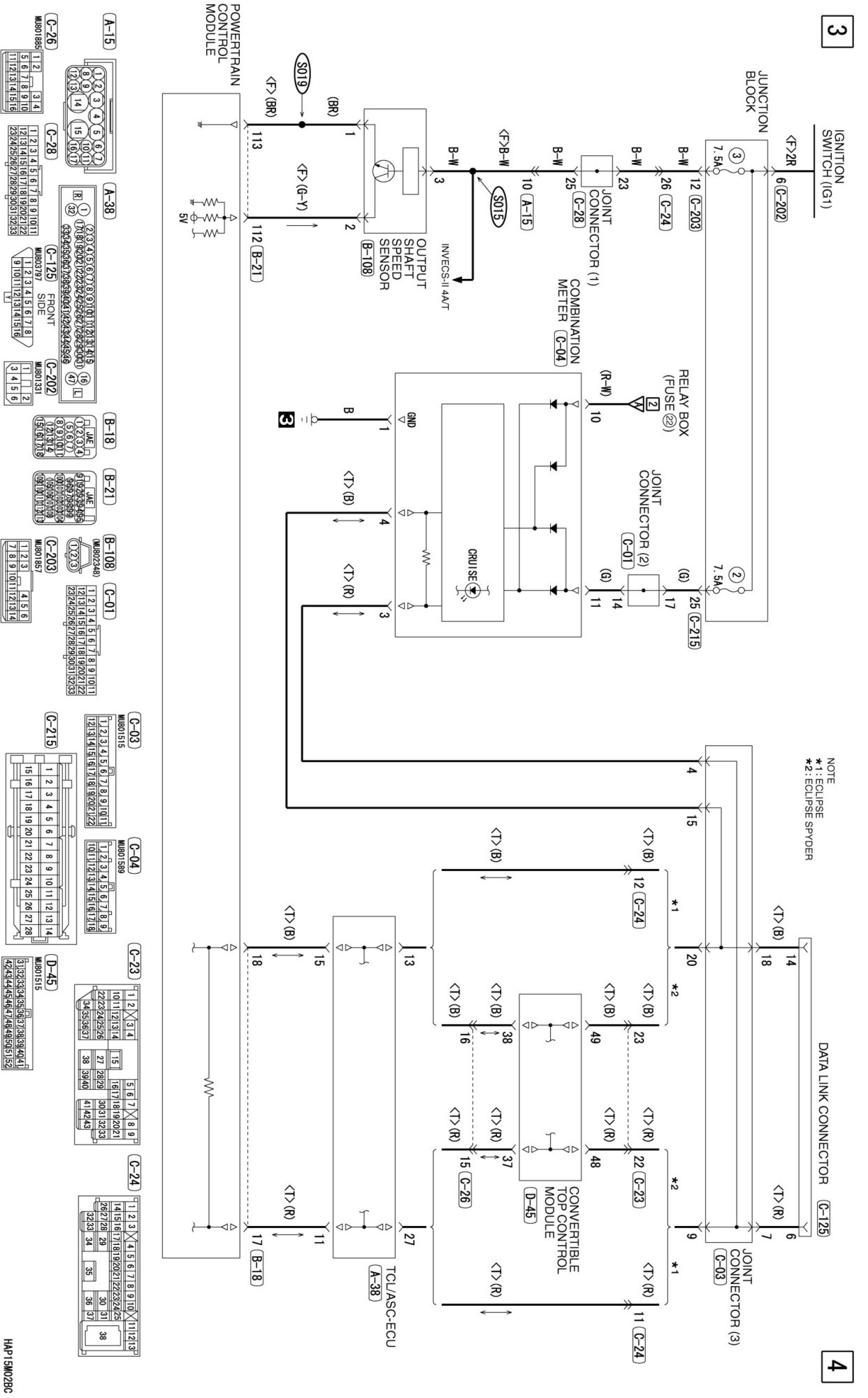

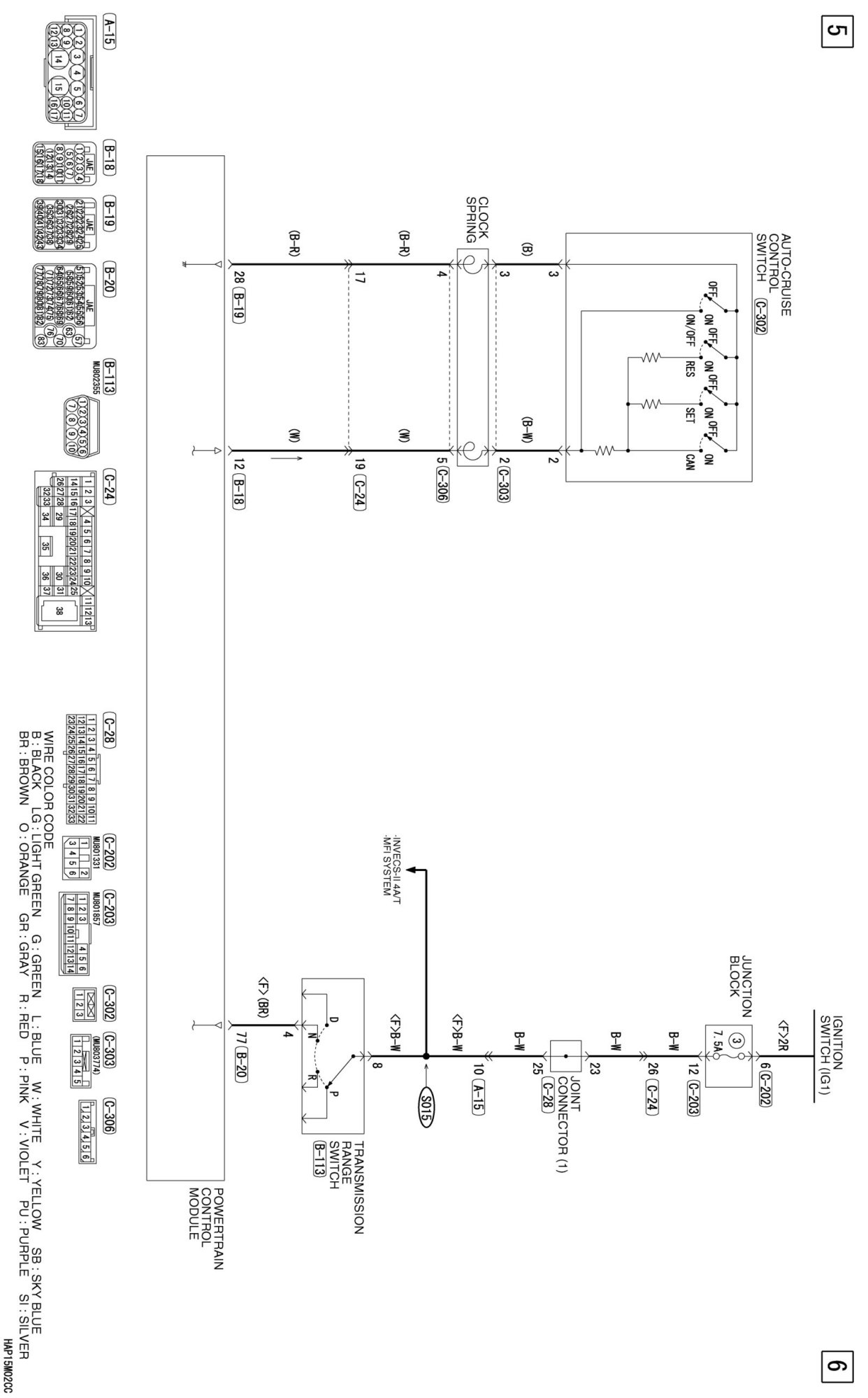

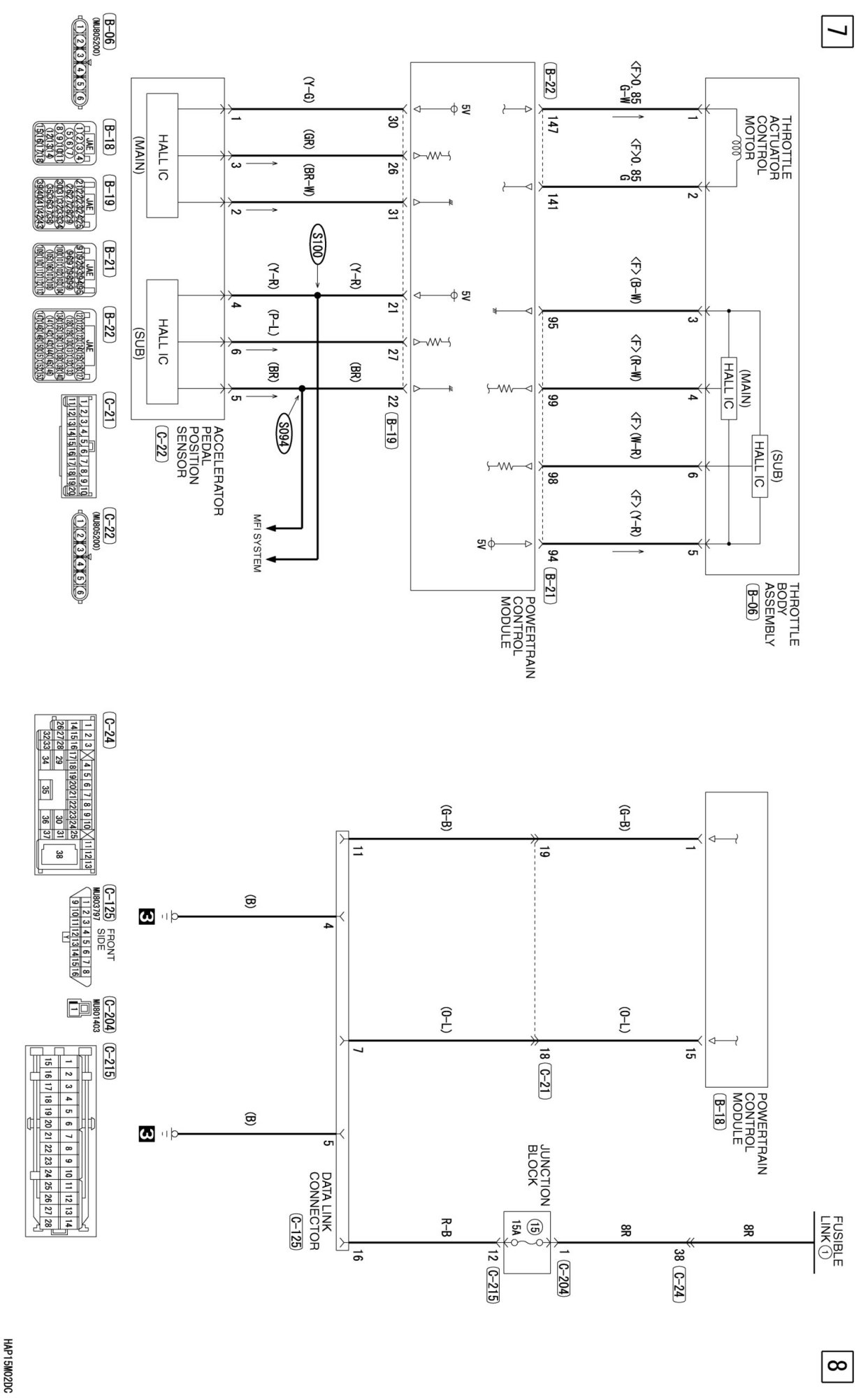

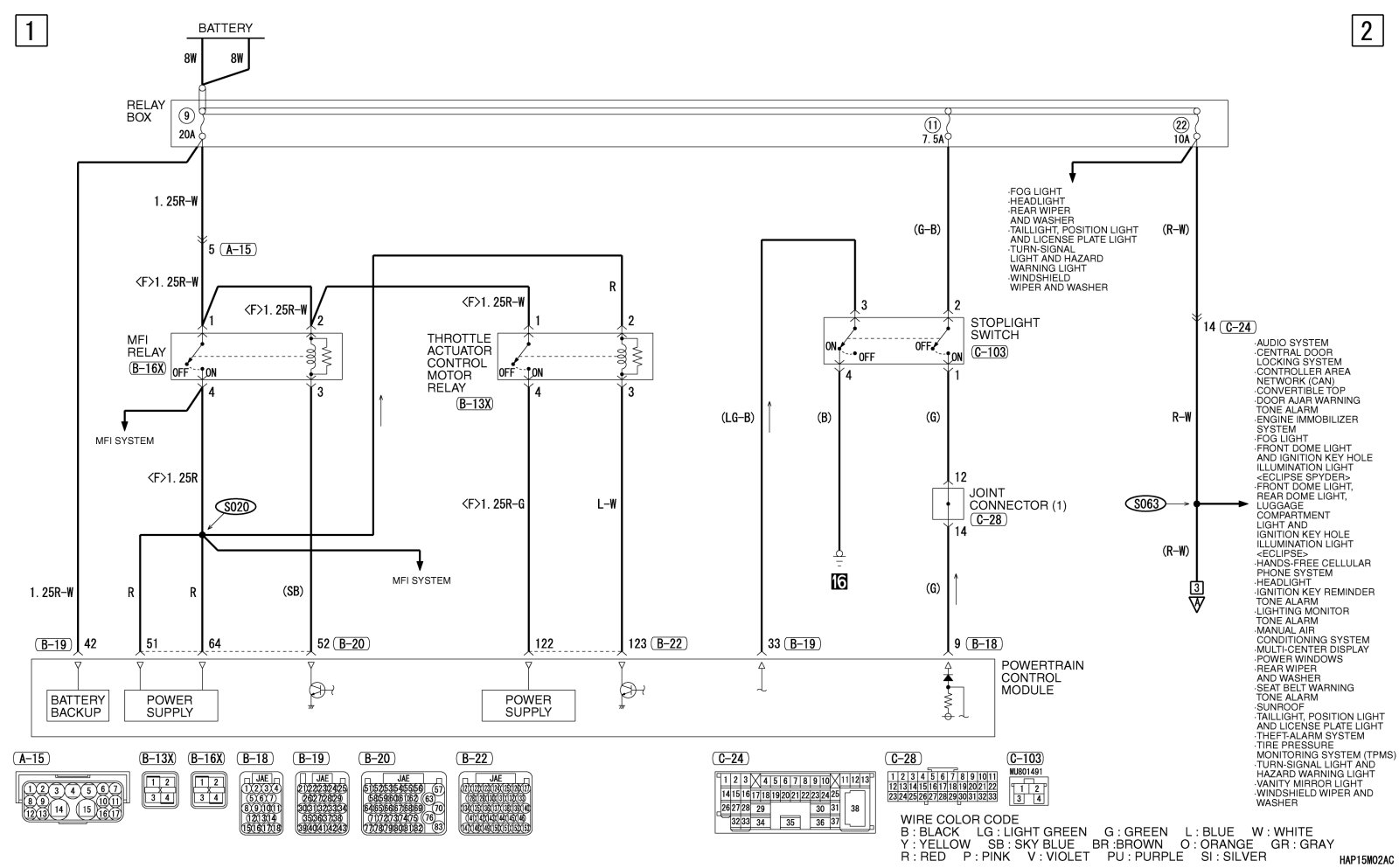

Auto-Cruise Control System
Auto-Cruise Control System
AUTO-
CRUISE CONTROL
SYSTEM [2.4L ENGINE-A/T]
