Removal and Replacement

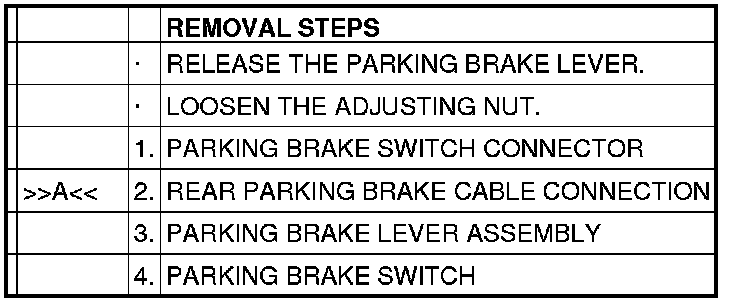

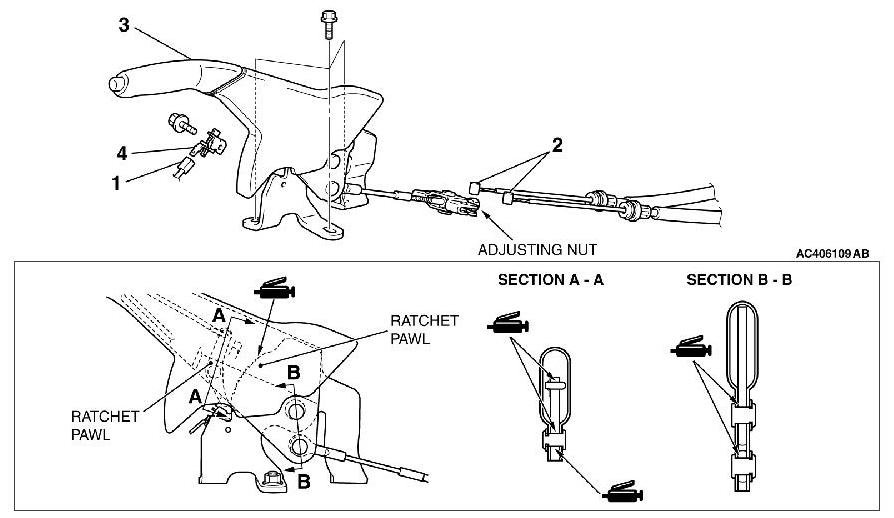

REMOVAL AND INSTALLATION

CAUTION:
Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.













INSTALLATION SERVICE POINT

]]A[[ REAR PARKING BRAKE CABLE INSTALLATION

CAUTION:
Check that the equalizer and the rear parking brake cable are connected correctly. If the parking brake is applied with the equalizer and the rear parking brake cable connected improperly, the equalizer may be damaged.

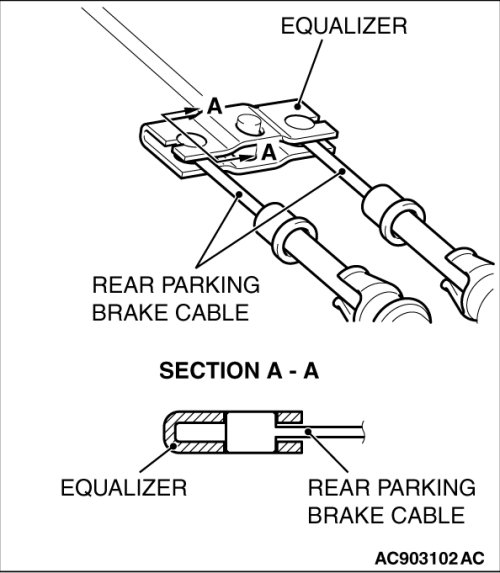

Connect the rear parking brake cable to the equalizer as shown in the figure.
