Convertible Top Motor: Testing and Inspection




INSPECTION

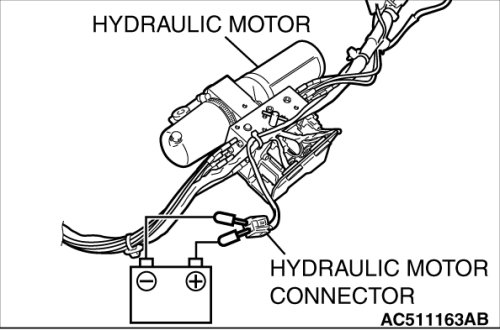

HYDRAULIC MOTOR ASSEMBLY CHECK





Check that the hydraulic motor assembly runs smoothly when the battery is connected directly to the motor terminals.
