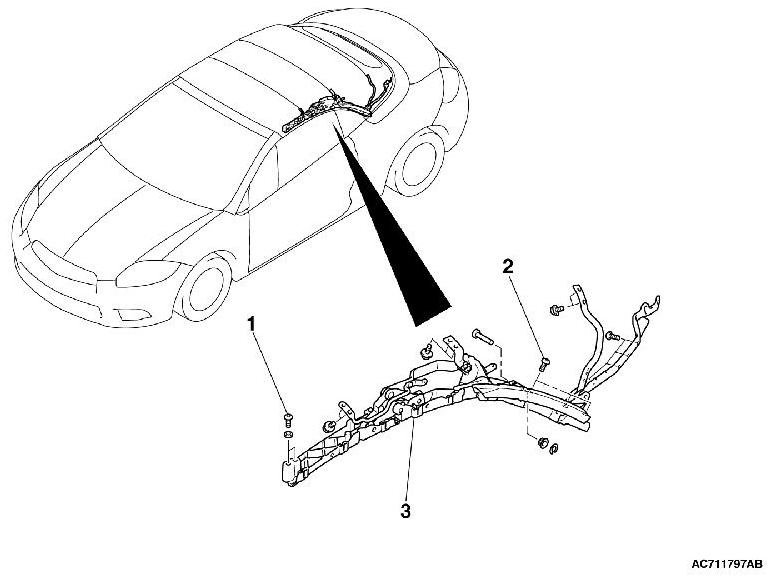

Side Rail Removal and Installation

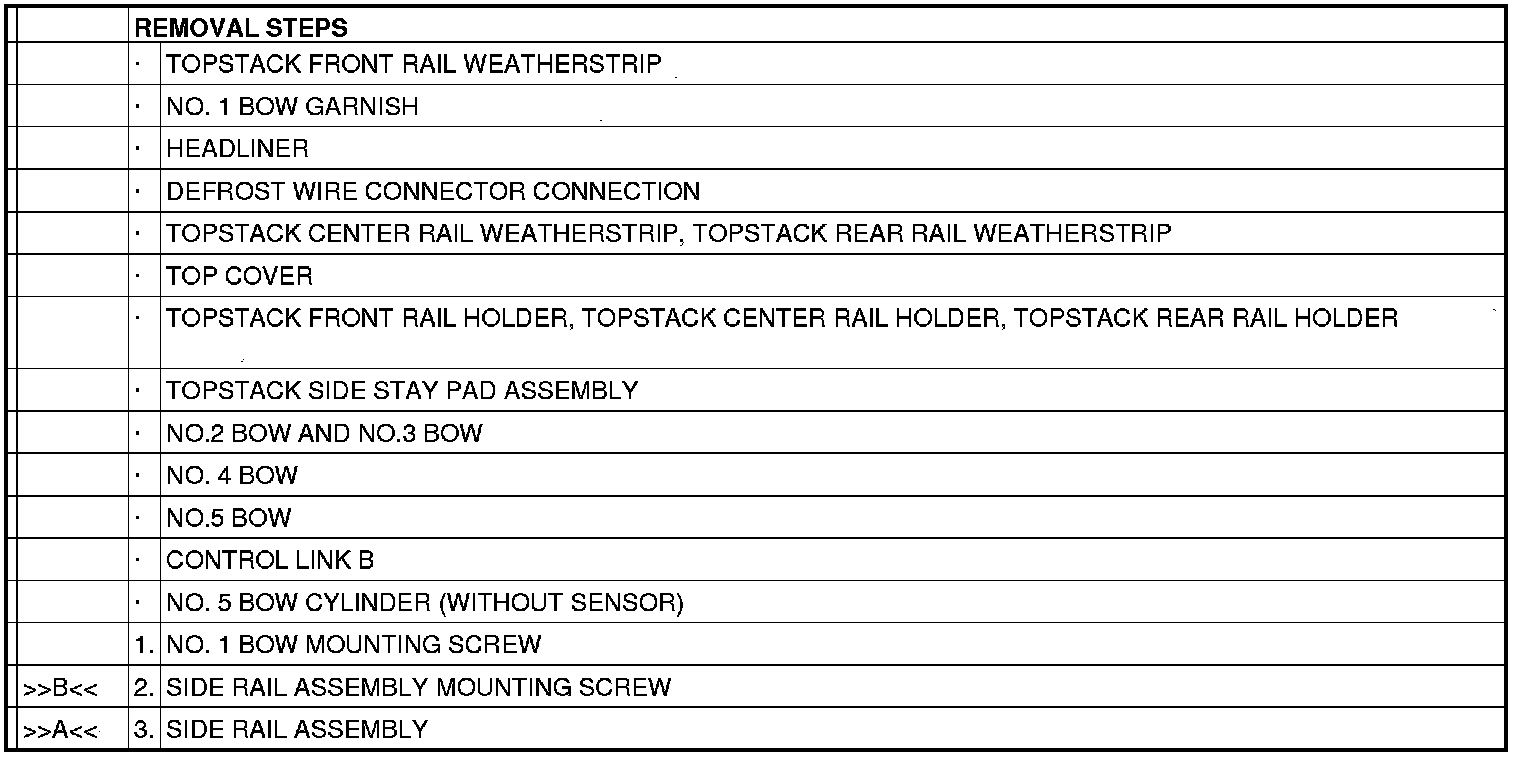

REMOVAL AND INSTALLATION













INSTALLATION SERVICE POINTS

]]A[[ SIDE RAIL ASSEMBLY INSTALLATION

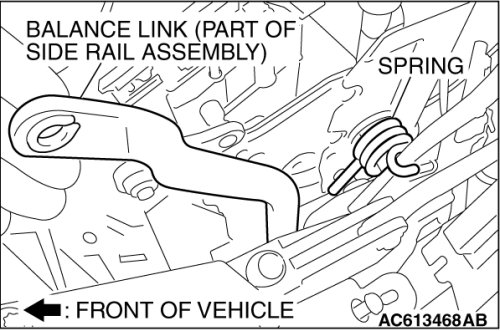

Install the side rail assembly so that the balance link is at the front of the spring.

]]B[[ SIDE RAIL ASSEMBLY MOUNTING SCREW INSTALLATION

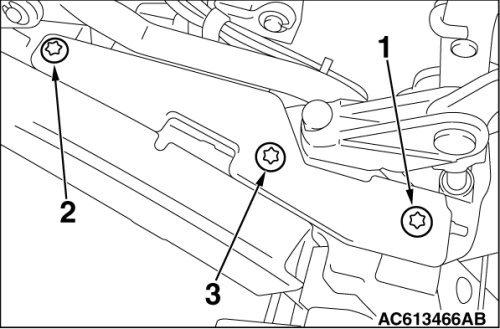

Tighten the side rail assembly mounting screws in the order shown.
