Convertible Top Deck Lid: Service and Repair

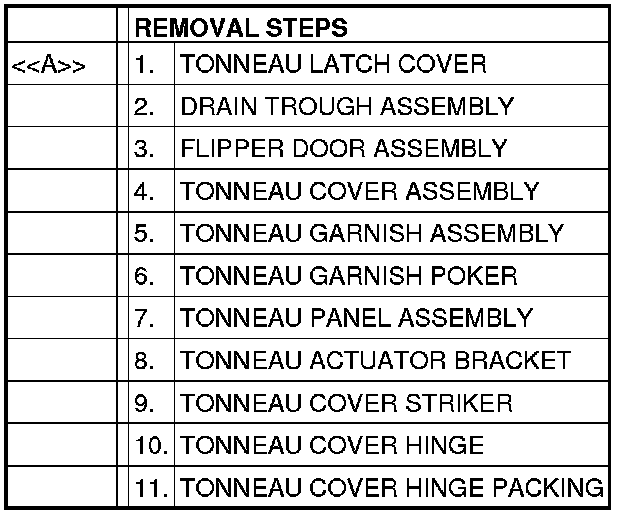

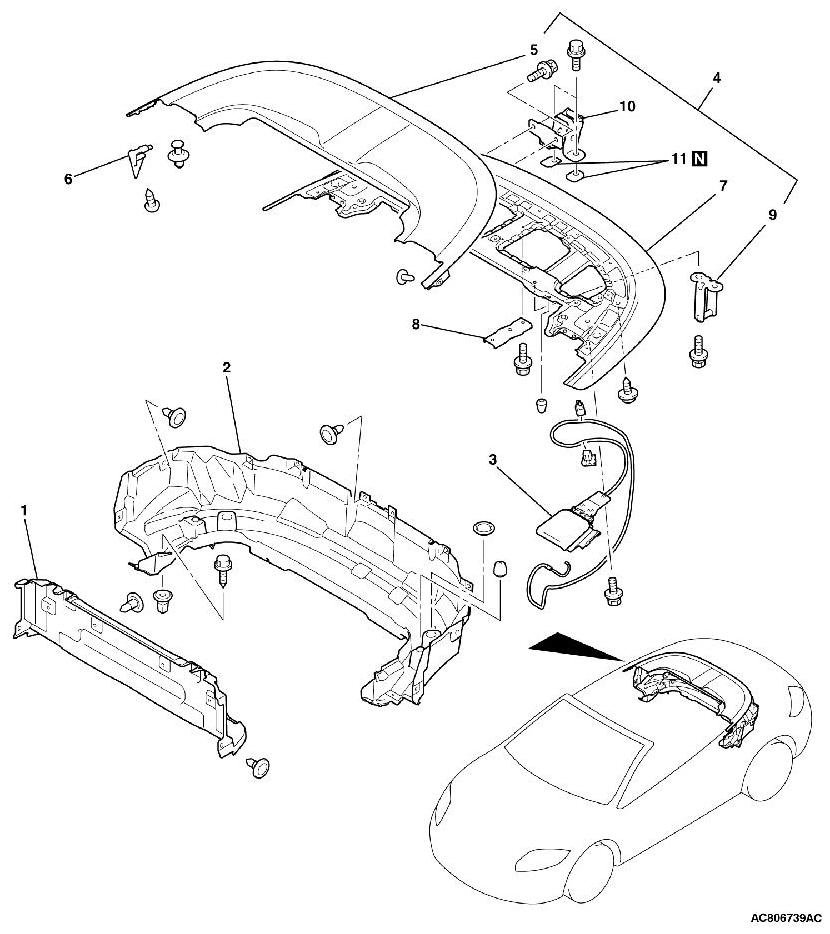

REMOVAL AND INSTALLATION

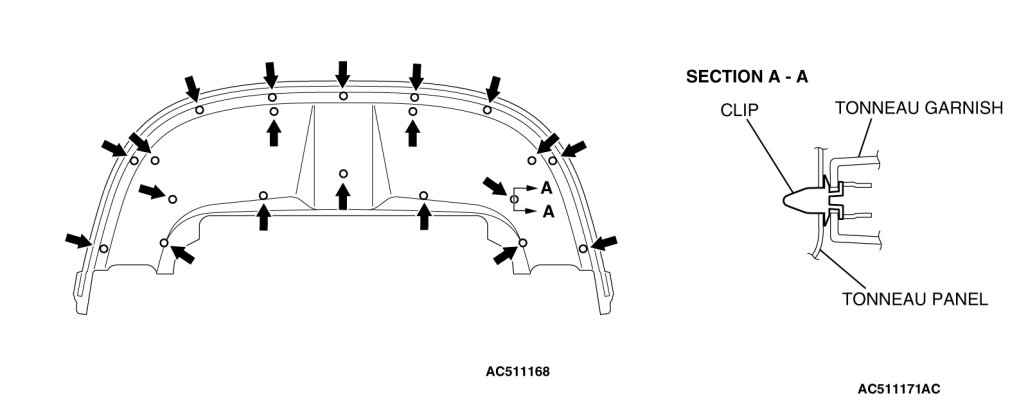

CLIP POSITION





REMOVAL SERVICE POINT

[[A]] TONNEAU LATCH COVER REMOVAL





1. 5-bow and tonneau panel are opened.





2. Raise the tonneau panel, and insert the dedicated tool into the hinge hole to hold the tonneau panel in place.
3. Remove the tonneau latch cover.
