Convertible Top Deck Lid: Adjustments

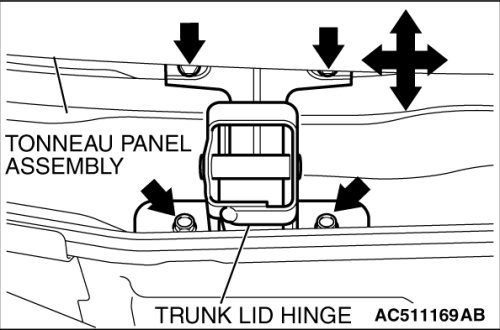

ADJUSTMENT OF CLEARANCE AROUND TONNEAU PANEL
Loosen the tonneau panel assembly mounting bolts, and move the tonneau panel assembly to make the clearance around the trunk lid even.
