Engine Roll Stopper and Center Member Removal and Installation

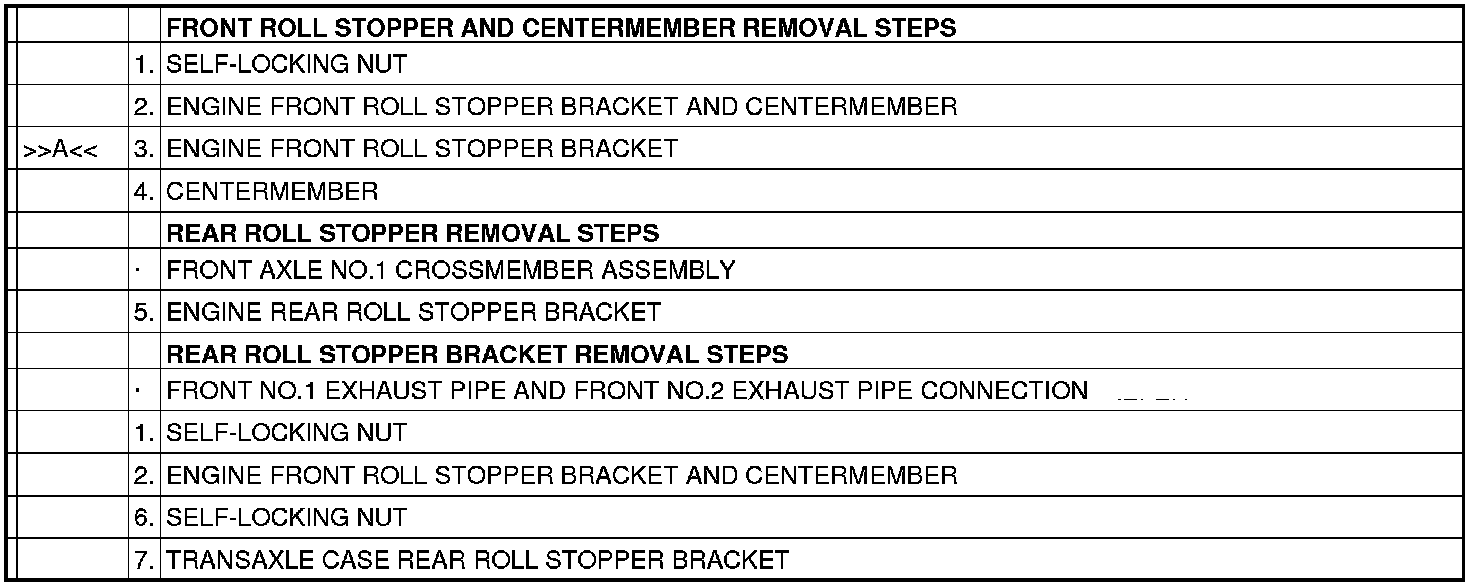

REMOVAL AND INSTALLATION

CAUTION:
*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.













INSTALLATION SERVICE POINT

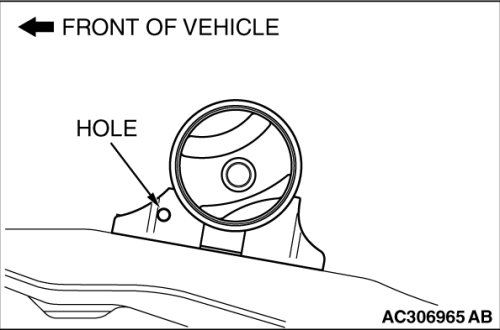

]]A[[ ENGINE FRONT ROLL STOPPER BRACKET INSTALLATION





Install the engine front roll stopper bracket so that its hole points towards the front side of the vehicle.
