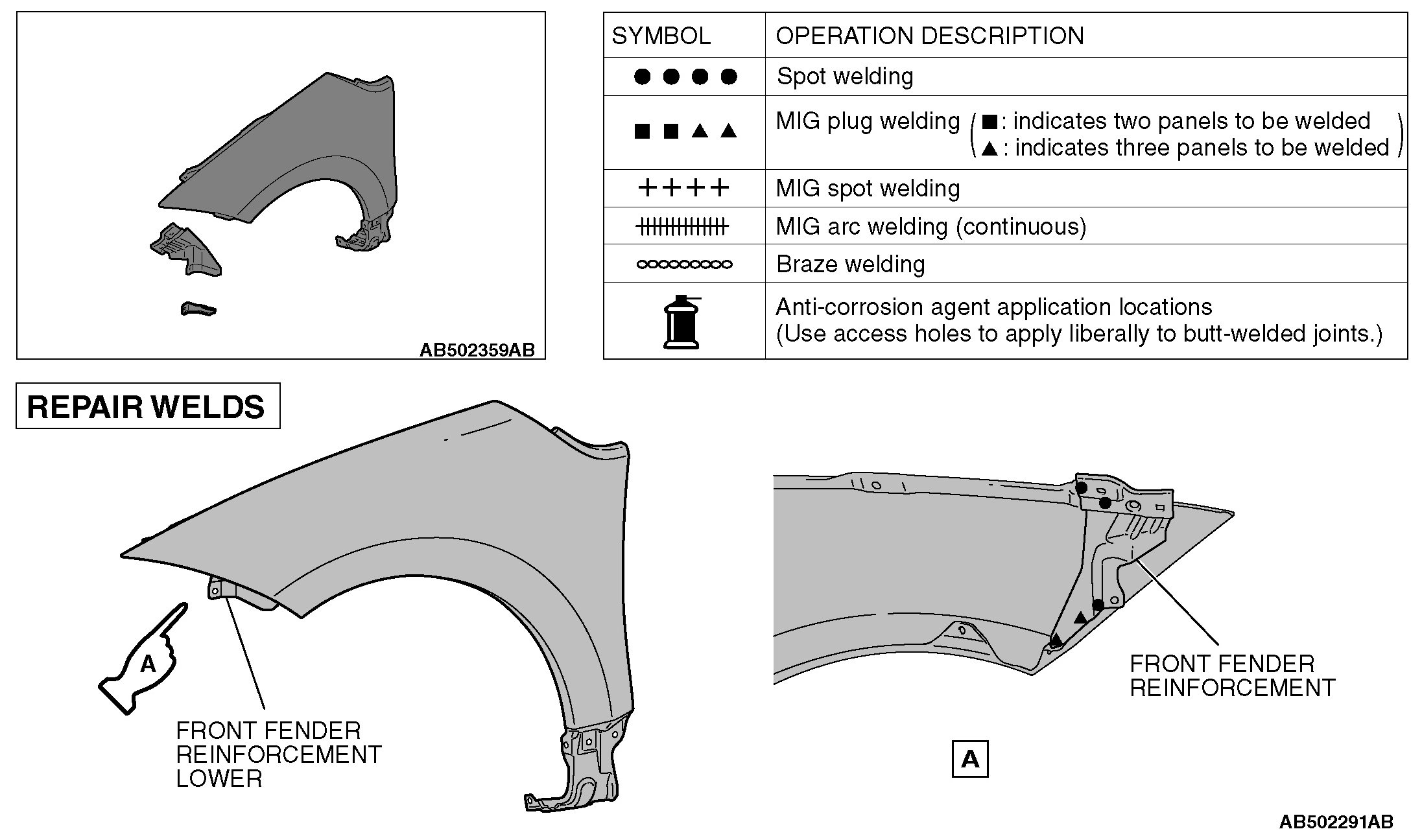

Front Fender Reinforcement (Eclipse Spyder)

FRONT FENDER (ECLIPSE SPYDER)





NOTE ON REPAIR WORK

REMOVAL

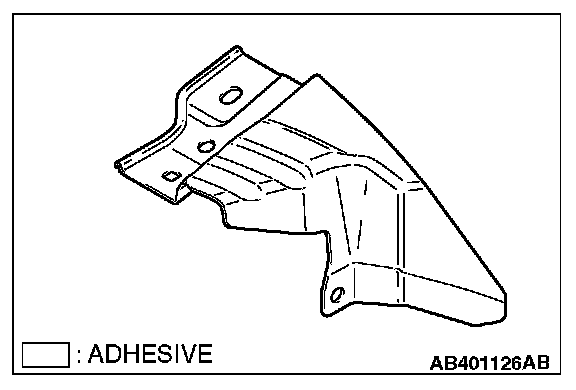

1. When assembling the new front fender reinforcement part, apply in advance adhesives to the areas shown in the figure of the instructions.

ADHESIVE: Urethane body sealer
BRAND: 3M(TM)AAD Part No.8542 or equivalent

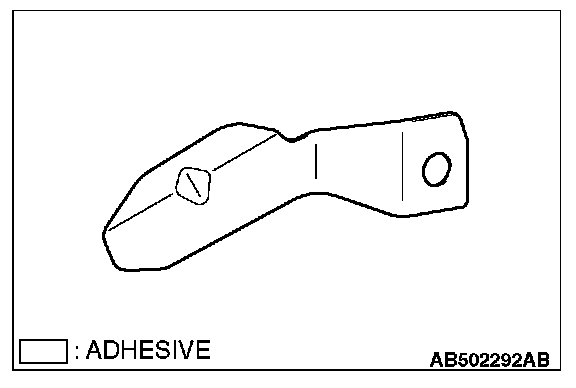

2. When assembling the new front fender reinforcement lower part, apply in advance adhesives to the areas shown in the figure of the instructions.

ADHESIVE: Urethane body sealer
BRAND: 3M(TM)AAD Part No.8542 or equivalent
