Vehicles With Liftgate Window Glass Molding Side

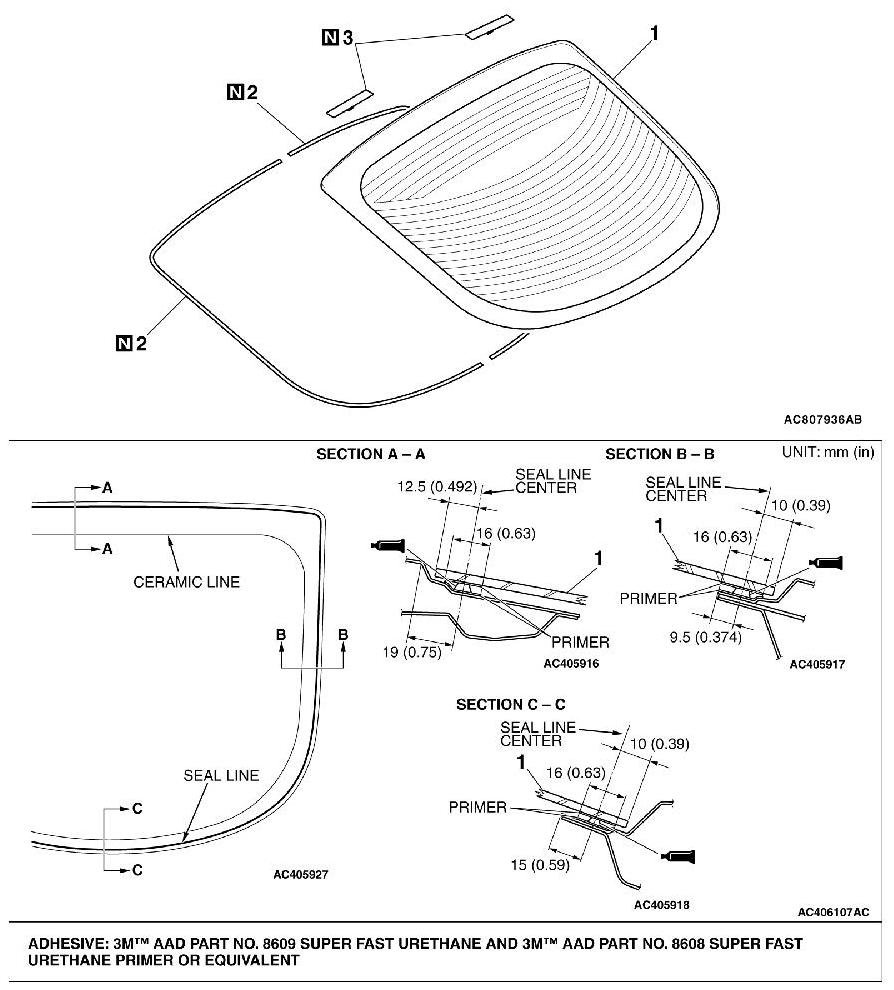

REMOVAL AND INSTALLATION [Vehicles with liftgate window glass molding side]













Required Special Tool:

- MB990480: Glass Holder

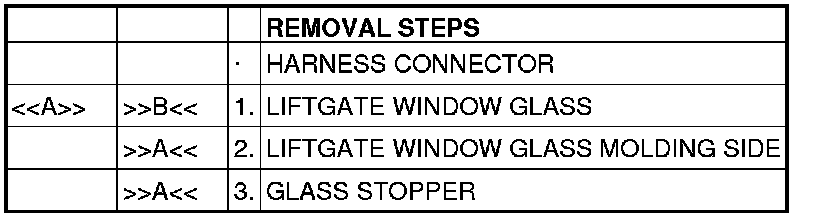

REMOVAL SERVICE POINT

[[A]] LIFTGATE WINDOW GLASS REMOVAL

Remove the liftgate window glass in the same manner as the windshield (Refer to Removal and Replacement).

NOTE:
Use a piano wire to remove the liftgate window glass.

INSTALLATION SERVICE POINTS

]]A[[ GLASS STOPPER/LIFTGATE WINDOW GLASS MOLDING SIDE INSTALLATION

1.
CAUTION:
Before the next job, leave the decreased parts for 3 minutes or more to dry. Do not touch the degreased parts.

Use 3M(TM) AAD Part number 8906 or equivalent to degrease the inside and outside of the liftgate window glass and the liftgate flanges.

2.

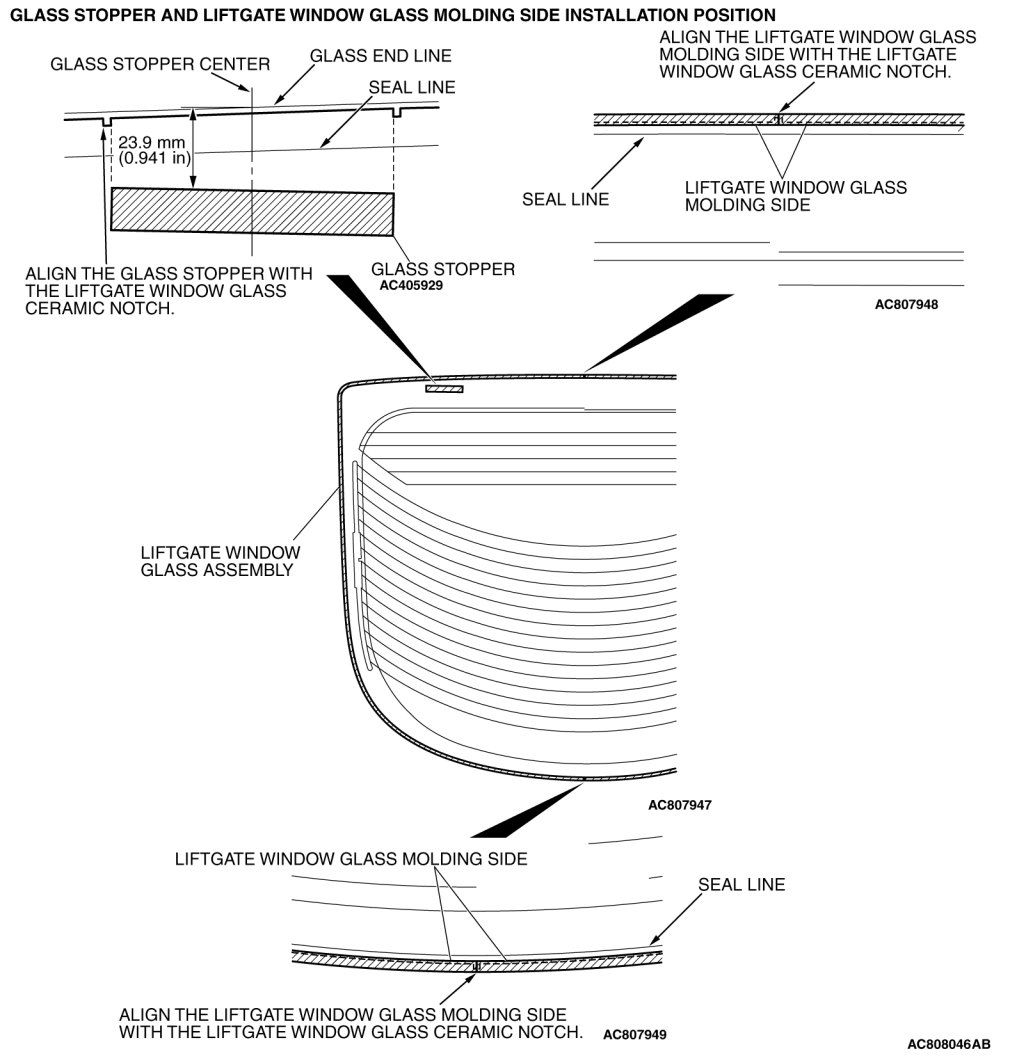

Assemble the glass stopper and liftgate window glass molding side to specified positions on the liftgate window glass.

]]B[[ LIFTGATE WINDOW GLASS INSTALLATION

Install the liftgate window glass in the same manner as the windshield (Refer to Removal and Replacement).
