Body and Frame: Description and Operation

MAINTENANCE, SERVICEABILITY (ECLIPSE SPYDER)

FENDER SHIELD

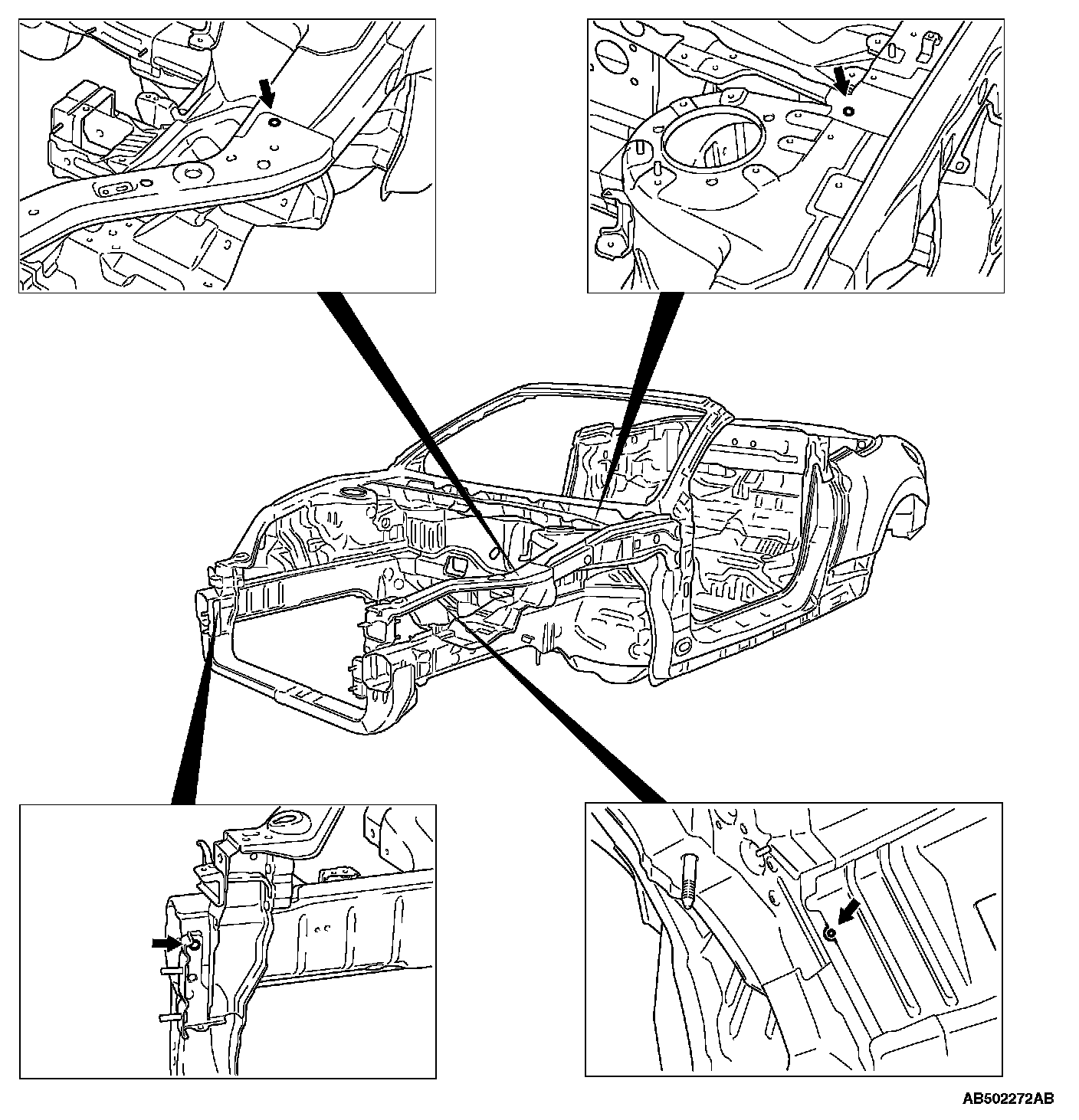

Positioning holes and notches have been provided at the following overlapped areas to improve operation performance when replacing panels.

SIDE STRUCTURE

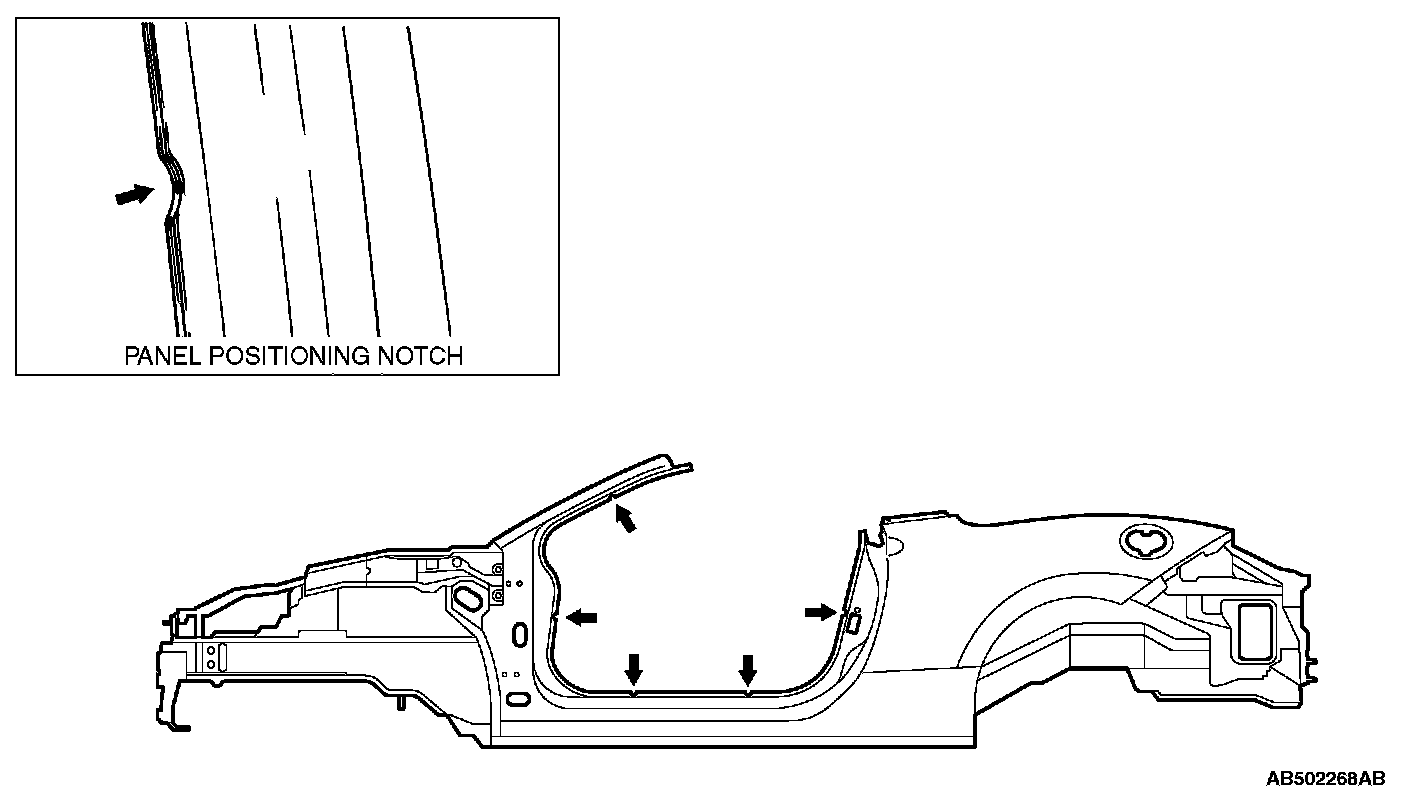

Panel positioning notches have been provided at the door opening section to improve operation performance when replacing panels.

SIDE OUTER PANEL

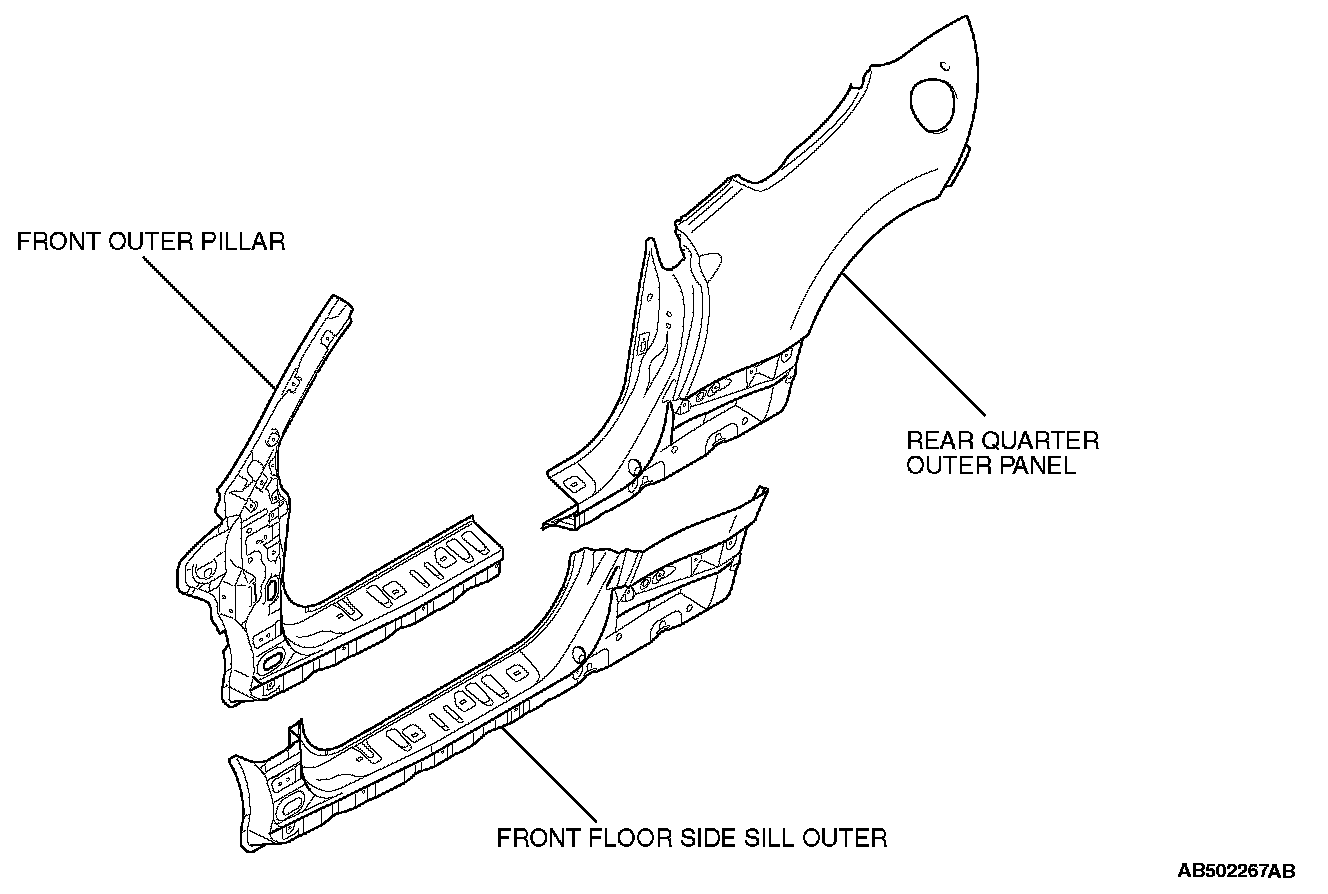

Spare parts are provided in the following cut form with the adoption of the pillar integral type side outer panel.
