Pinout Values and Diagnostic Parameters

CHECK AT ECU TERMINAL

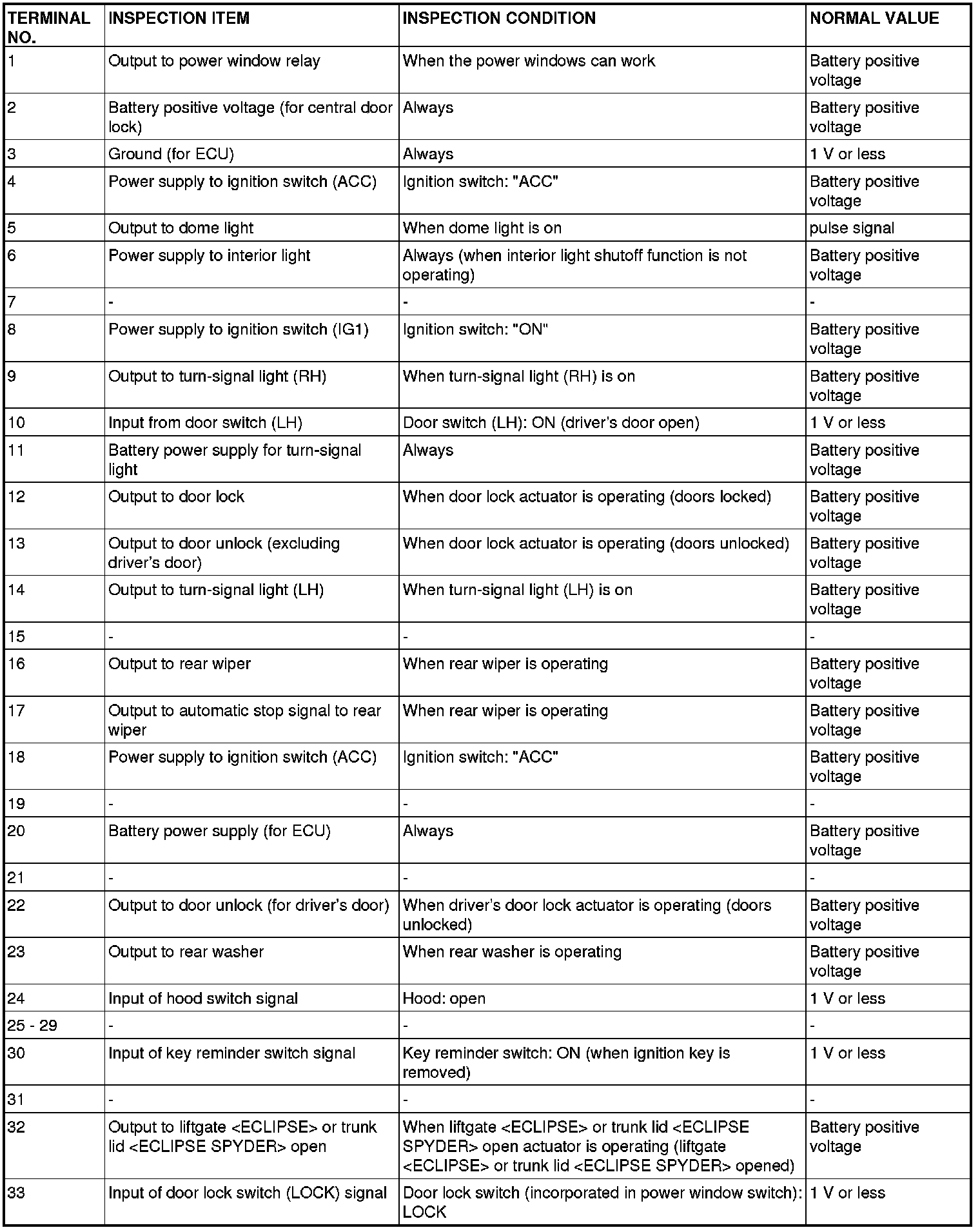

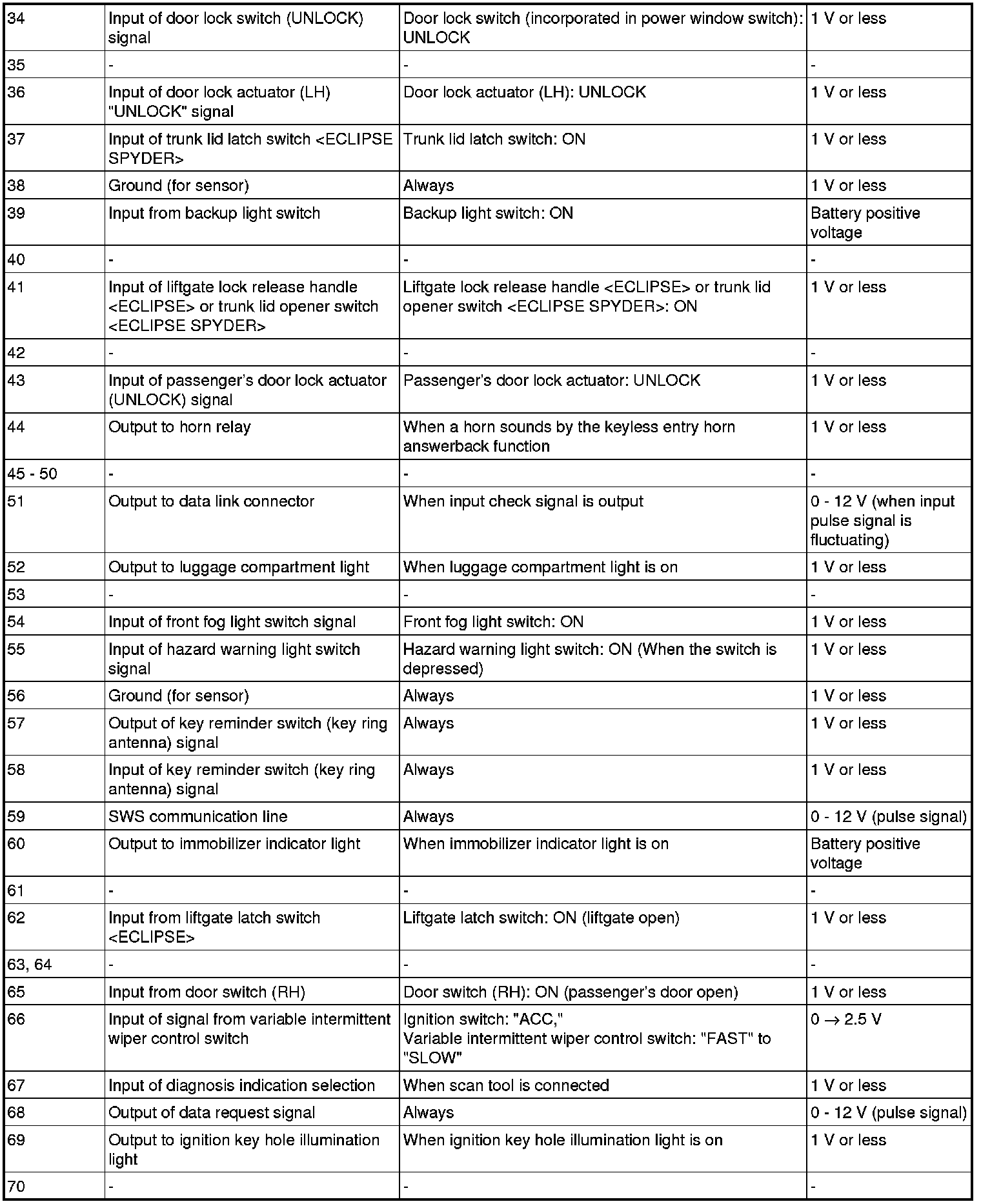

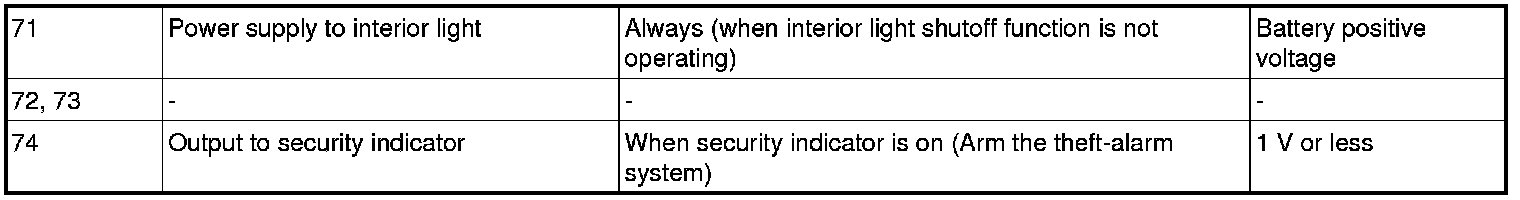

ETACS-ECU





NOTE:
*:The terminal No.1 to 20 connectors cannot be measured as the ETACS-ECU is installed directly on the junction block. Therefore, this information is only for reference.

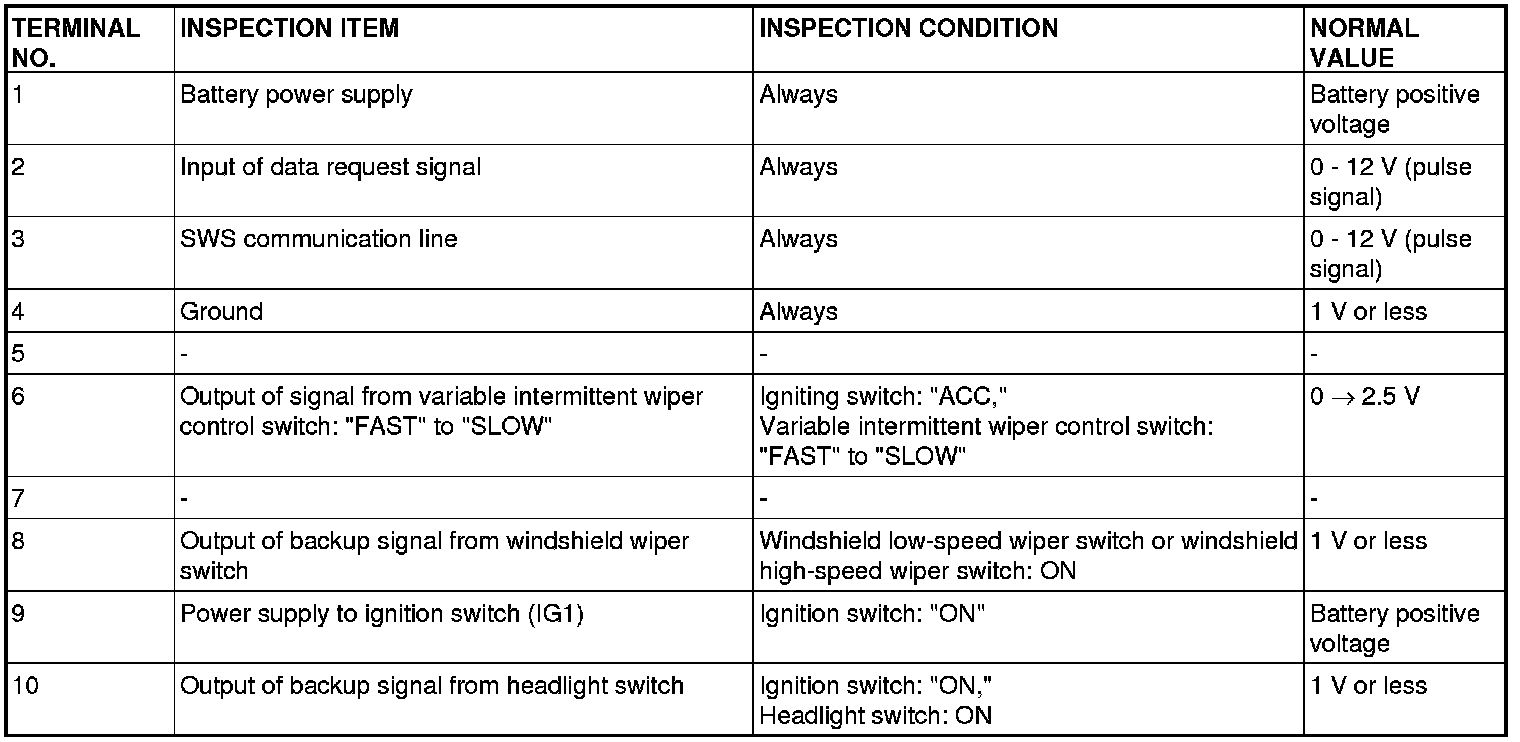

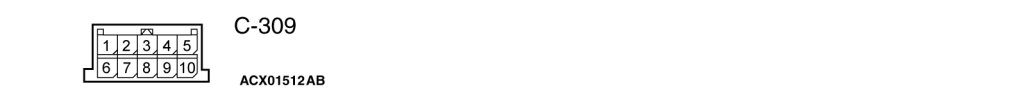

COLUMN SWITCH

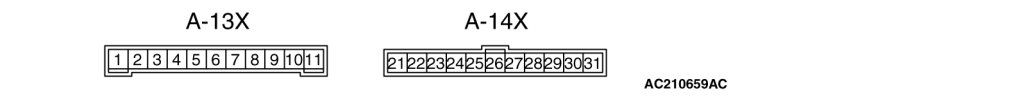

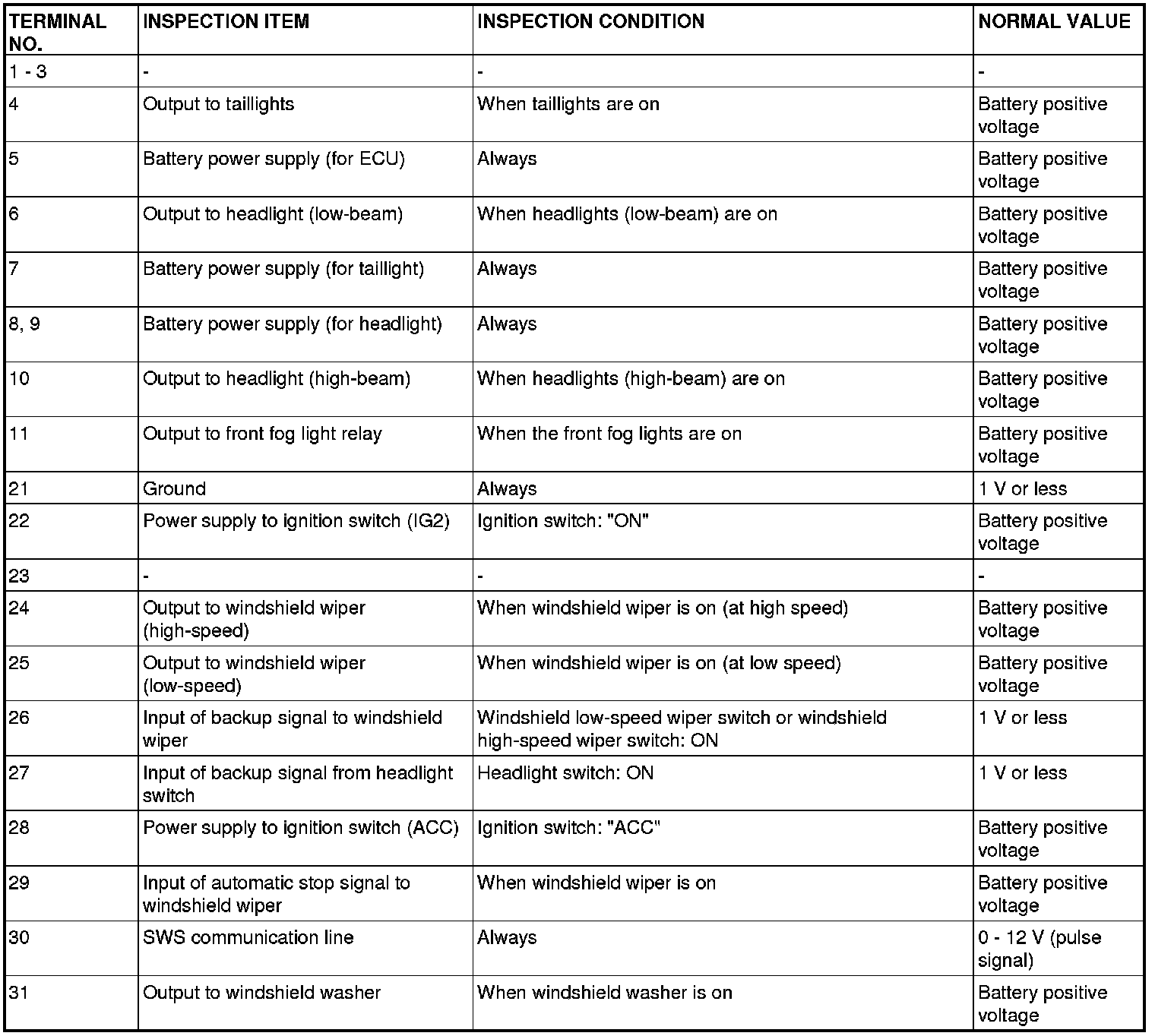

FRONT-ECU





NOTE:
Terminal voltages cannot be measured as the front-ECU is installed directly on the relay box. Therefore, this information is only for reference.
