Power Windows

GENERAL DESCRIPTION CONCERNING THE POWER WINDOWS

The following ECUs affect the functions and control of the power windows.






POWER WINDOW

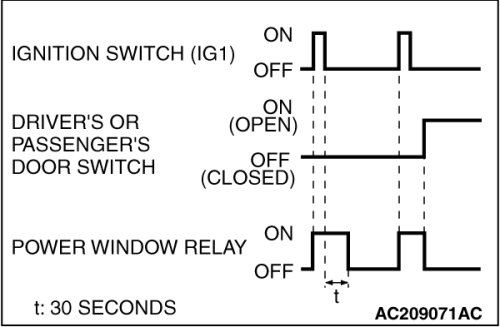

POWER WINDOW TIMER FUNCTION





Even after the ignition is switched off, the ETACS-ECU keeps the power window relay activated for approximately 30 seconds, enabling raising or lowering of the power windows by using the power window switches. After approximately 30 seconds, the power window relay is deactivated.
During this timed operation, if the driver's or passenger's doors are opened, the power window relay is deactivated from that moment.
