Keyless Entry System

GENERAL DESCRIPTION CONCERNING THE KEYLESS ENTRY SYSTEM

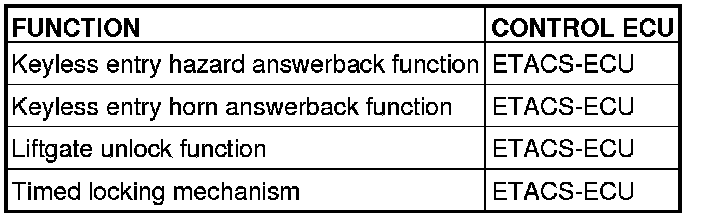

The following ECUs affect the functions and control of the keyless entry system.






KEYLESS ENTRY SYSTEM

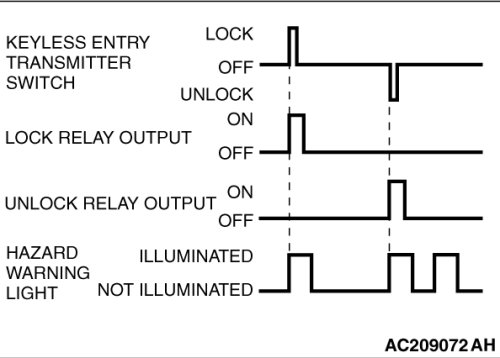

KEYLESS ENTRY HAZARD ANSWER BACK FUNCTION





If the keyless entry transmitter is used to send a lock signal to the ETACS-ECU, all doors are locked and the hazard warning lights flash once. If an unlock signal is sent, the driver's door is unlocked first, and if a second signal is sent, all doors are unlocked. Each time the unlock signal is sent, the hazard warning lights flash twice.

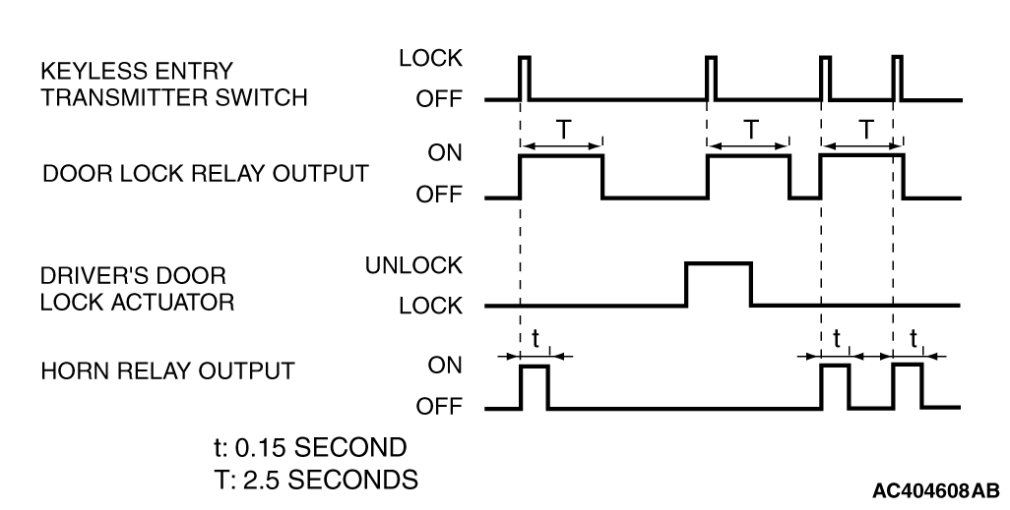

KEYLESS ENTRY HORN ANSWER BACK FUNCTION





When the lock signal from the keyless entry transmitter is received into ETACS-ECU, all doors are locked and the horn sounds. If the driver's door cannot be locked even when the keyless entry transmitter is operated, the horn does not sound.

LIFTGATE UNLOCK FUNCTION

Press the "LIFTGATE" button twice within 5 seconds and the liftgate will be unlocked.

TIMED LOCKING MECHANISM

After unlocking the doors with the keyless entry transmitter, if no doors are opened, if the ignition key is not inserted or if the locking function is not operated, the ETACS-ECU automatically locks the doors in 30 seconds.
