Speaker: Testing and Inspection




INSPECTION

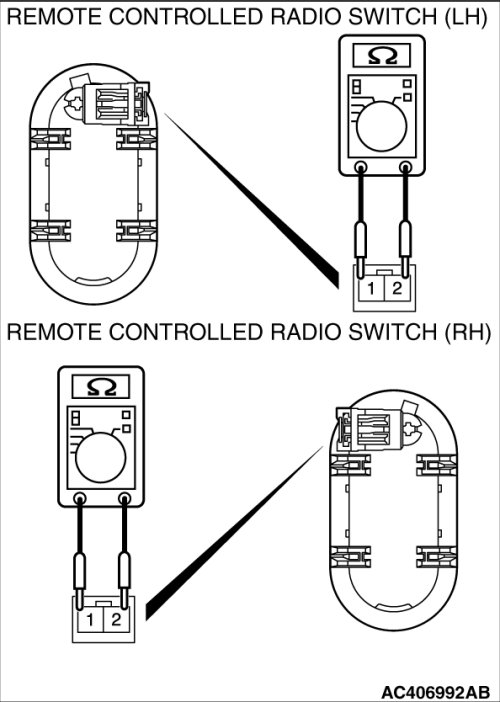

REMOTE CONTROLLED RADIO SWITCH CONTINUITY CHECK

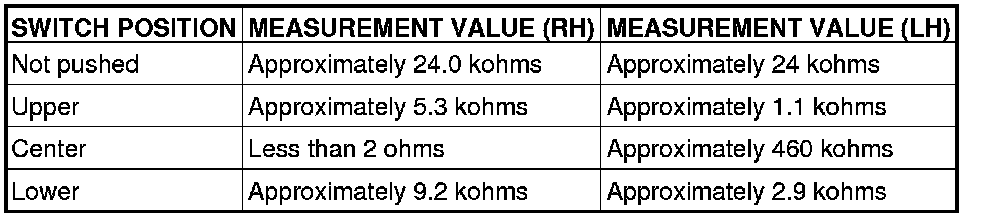

Use an ohmmeter to measure the resistance value between the terminals.
