Home >> Mitsubishi >> 2012 >> Eclipse Spyder L4-2.4L (4G69) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Speaker >> Service and Repair

Speaker: Service and Repair




REMOVAL AND INSTALLATION

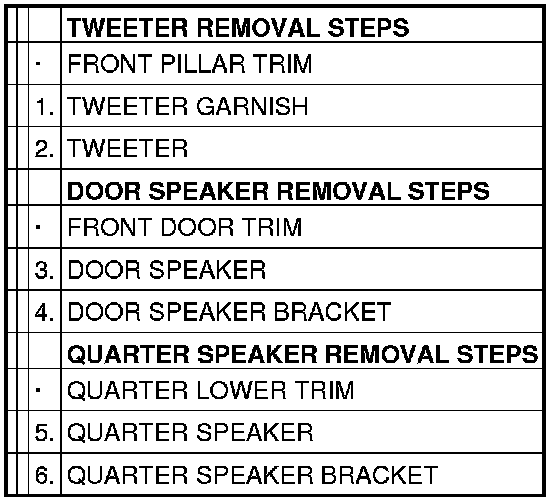

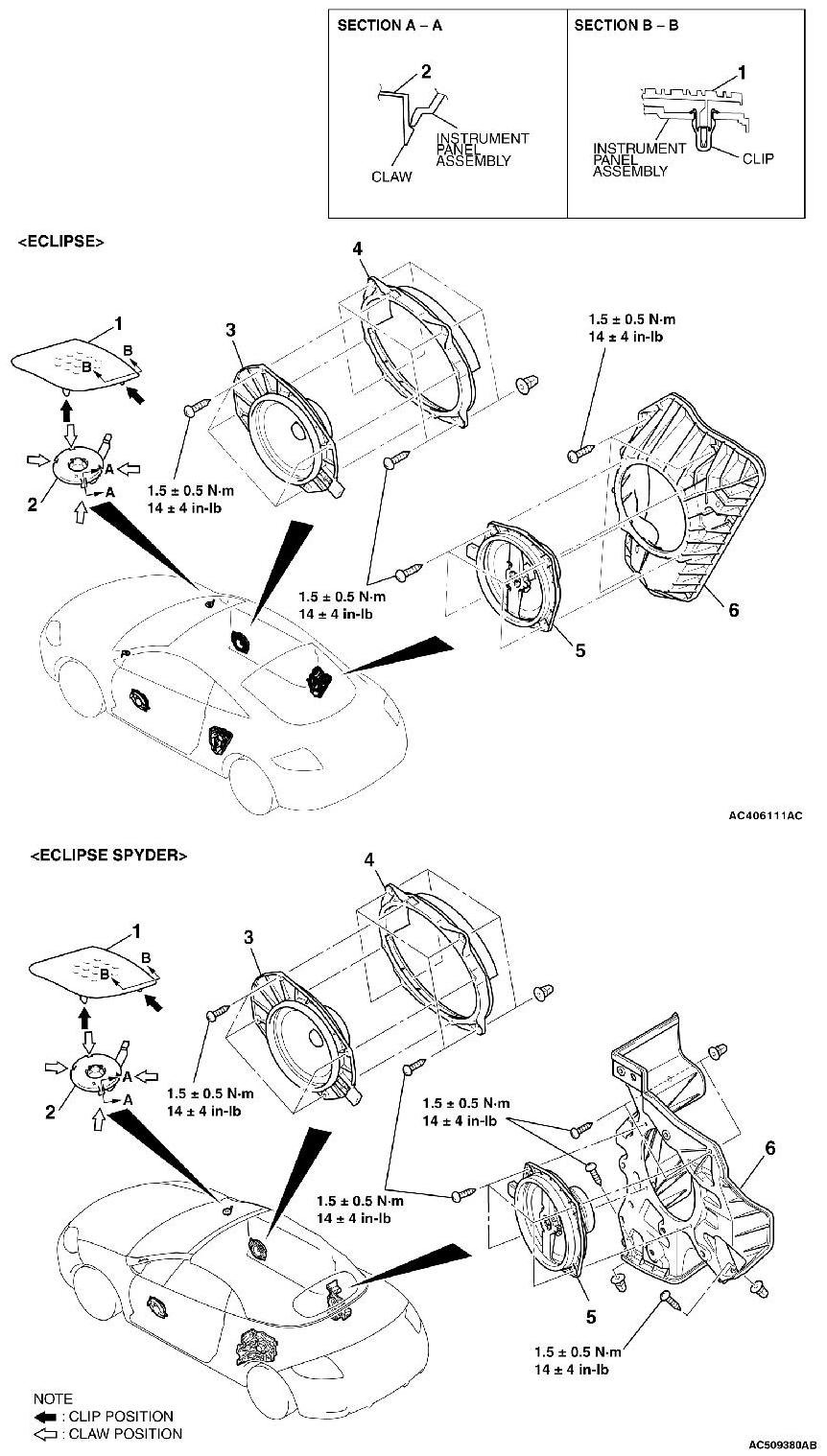

[TWEETER/DOOR SPEAKER/QUARTER SPEAKER]

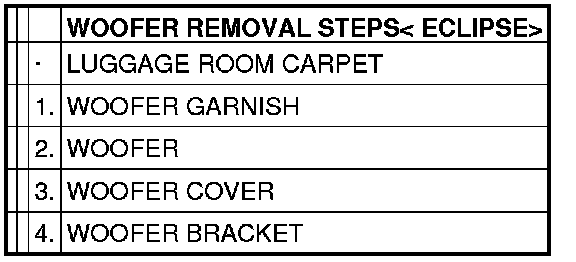

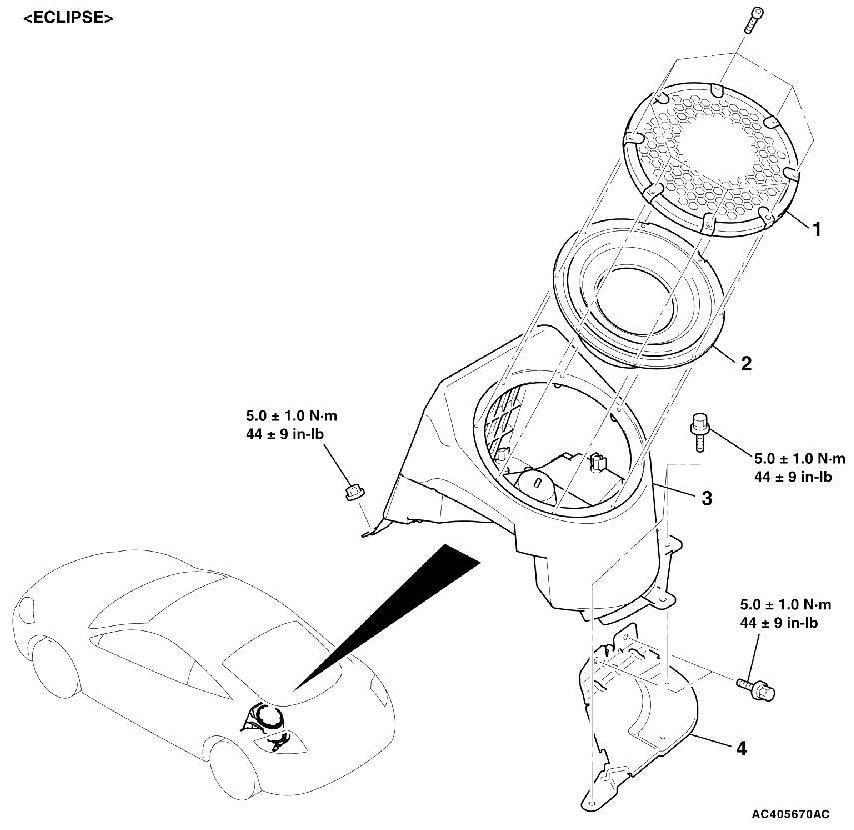

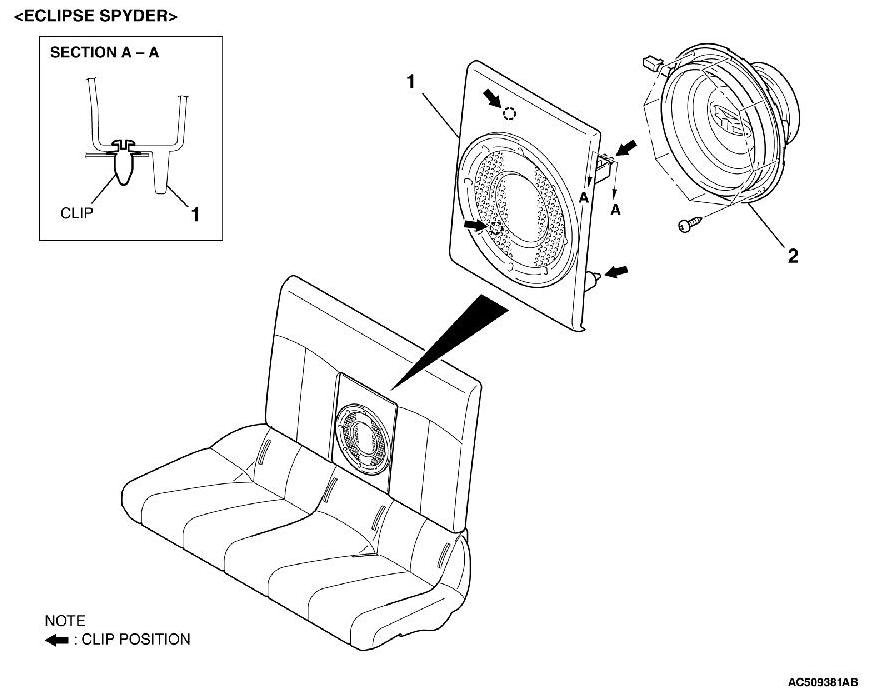

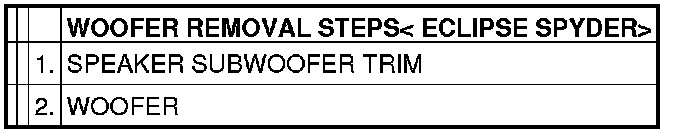

[ REAR SPEAKER (WOOFER)]
