Component Tests and General Diagnostics

HOW TO READ SIRIUS ID

DISPLAY THE SIRIUS ID ON THE MULTI-CENTER DISPLAY.

The SIRIUS ID registered to the satellite radio tuner can be displayed on the multi-center display.





1. Turn the ignition switch to the "ON" position or the "ACC" position to turn on the audio system.

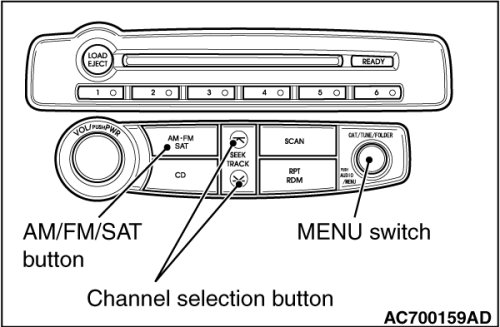

2. By pressing the AM/FM/SAT button, bands are displayed on the multi-center display in the order of "AM", "FM", "FM1", "FM2", "STA1", "STA2", "STA3", "STA4." Select a band of the satellite radio ("STA1", "STA2", "STA3", "STA4").

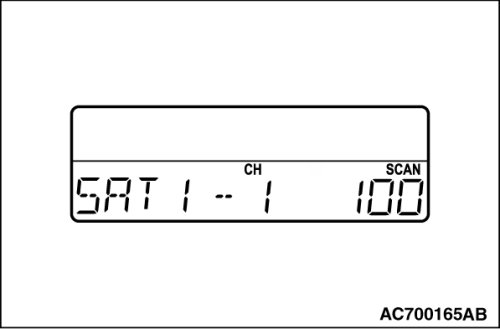

3. Press the channel selection button to set the satellite radio channel to "CH 0."

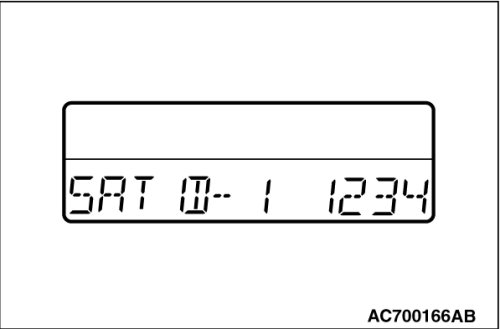

4. When "CH 0" is selected, the first 4 digits of the 12-digit SIRIUS ID are displayed after 2 seconds.





5. When the MENU switch is turned clockwise, the middle 4 digits of the SIRIUS ID are displayed.

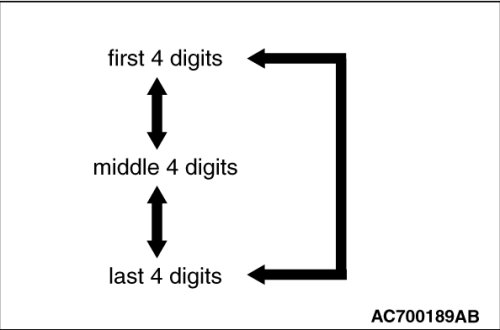

When the switch is turned farther, the last 4 digits of the SIRIUS ID are displayed. By turning the MENU switch clockwise farther, the SIRIUS ID is displayed in the order of "the first 4 digits", "the middle 4 digits", and then "the last 4 digits." The SIRIUS ID is displayed in the reverse order when the MENU switch is turned counterclockwise.
6. Press the channel selection button to select a channel other than "CH 0" to terminate the SIRIUS ID display.
NOTE:
While the SIRIUS ID is displayed, if the switch is not operated for 15 seconds, the SIRIUS ID display disappears and "CH 0" is displayed. The SIRIUS ID is displayed again after 2 seconds.

READ THE SIRIUS ID DIRECTLY FROM THE SATELLITE RADIO TUNER.

The SIRIUS ID (12 digits) on the satellite radio tuner can be read directly.

1. Remove the satellite radio tuner. Refer to Service and Repair.

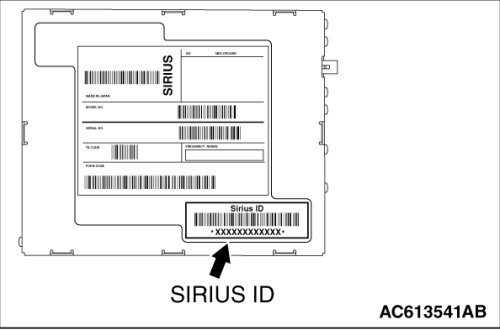

2. Read the SIRIUS ID (12 digits) from the satellite radio tuner.
