Auxiliary Input / Output Jack: Testing and Inspection

AUX ADAPTER INSPECTION

1. Remove the AUX adapter. (Refer to AUX Adapter Removal and Installation.)

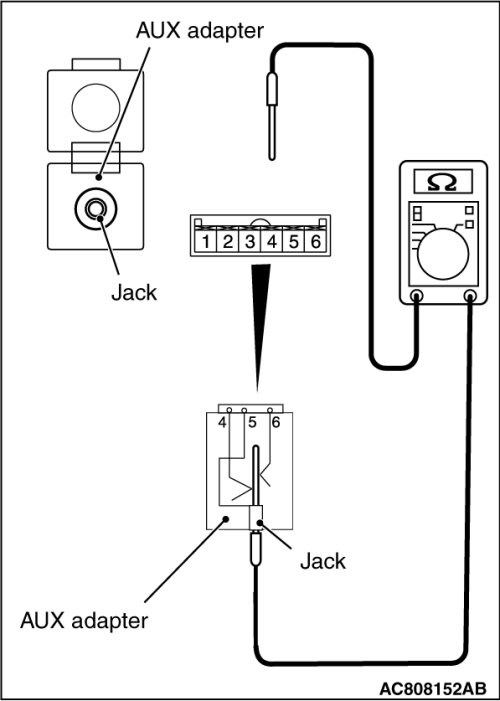

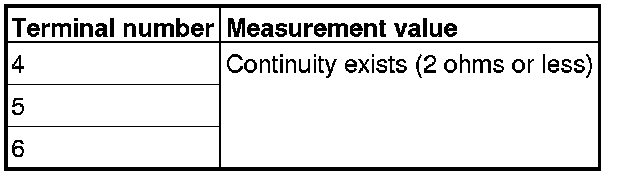

2. Check that continuity exists between the terminal and the jack of AUX adapter.
