Rear Vision Camera: Description and Operation

GENERAL DESCRIPTION

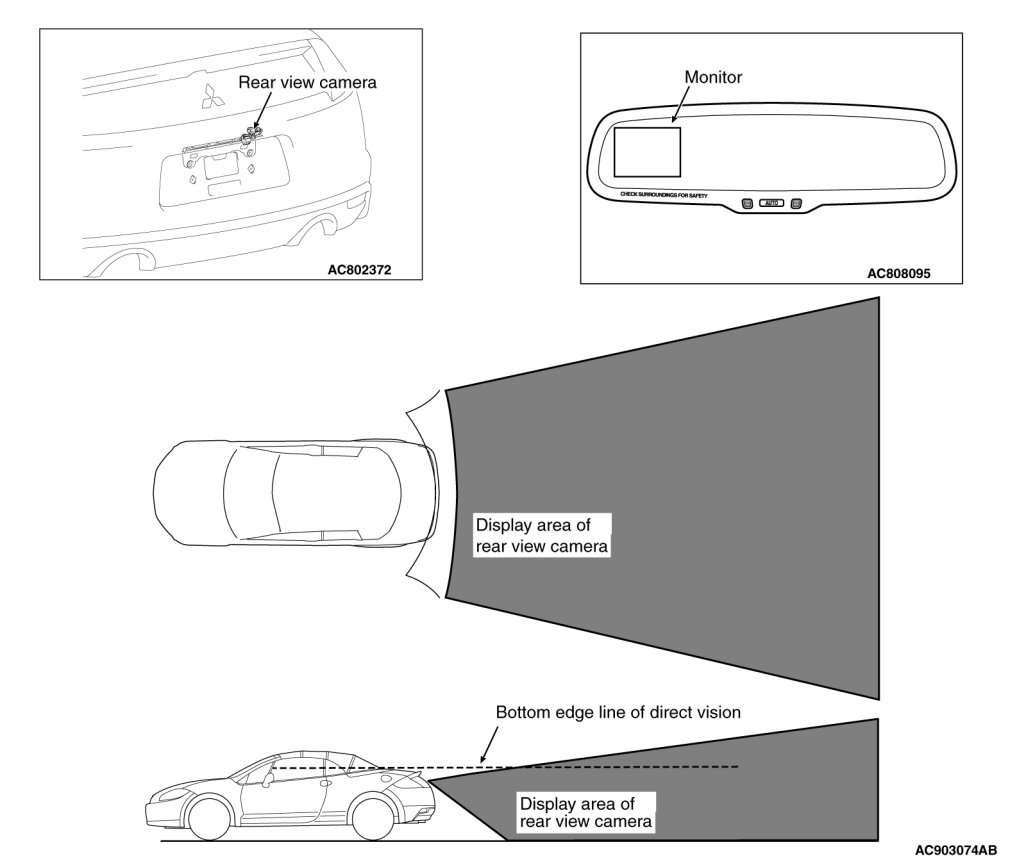

The rear view camera has been installed in the license plat light bracket. The image from the rear view camera is displayed on the monitor in the inside rear view mirror to help the visual check when the vehicle is moving backward with the inside rear view mirror.[vehicle with Rear view system]






OPERATION

The image is displayed on the monitor in the inside rear view mirror when the ignition switch is "ON"or "ACC" position, and the selector or the shift lever is turned to "R" (Reverse) position.

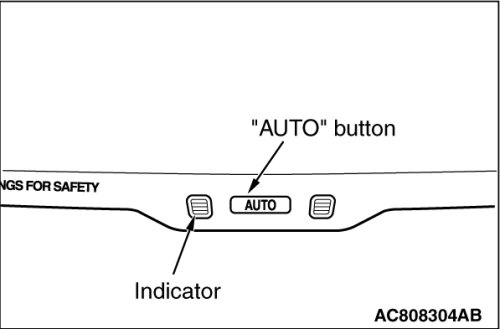

- The indicator illuminates in a blue color when the image from the rear view camera is displayed on the monitor in the inside rear view mirror.
- The image from rear view camera displayed on the monitor switches to the non-displayed state and the indicator illuminates in a red color when the image from rear view camera is displayed on the monitor and AUTO" button is pressed.
