Supplemental Restraint System (SRS)

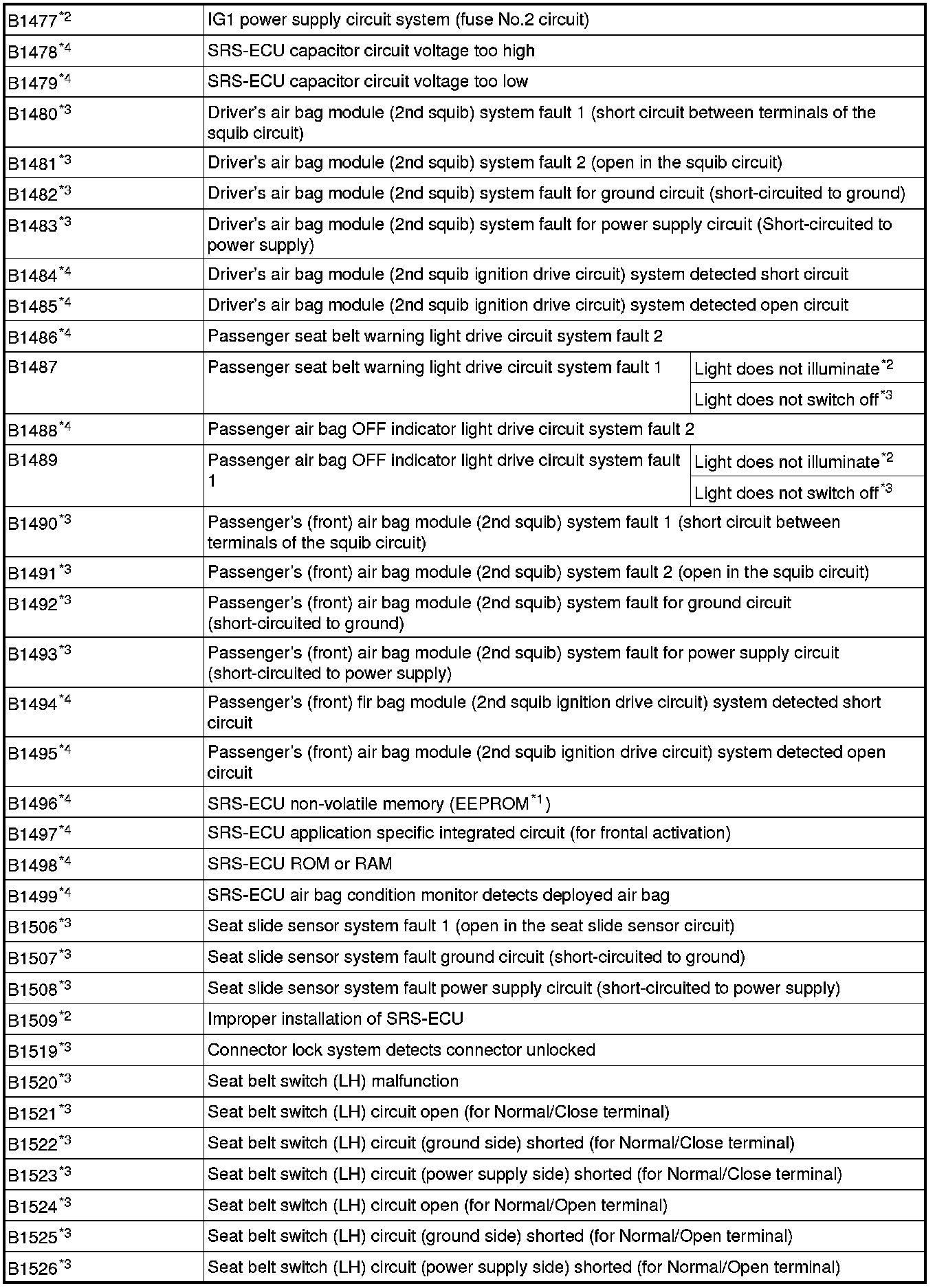

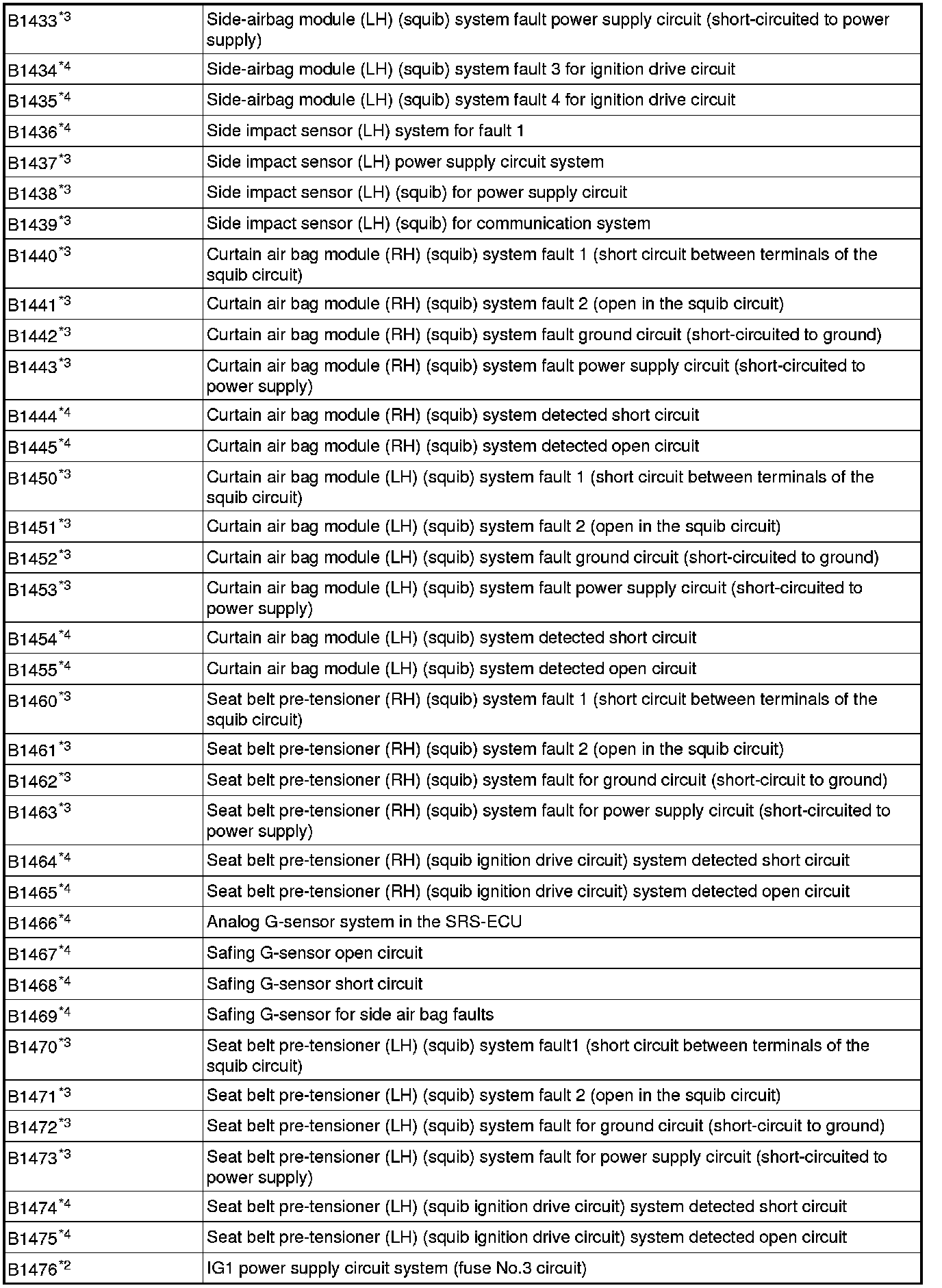

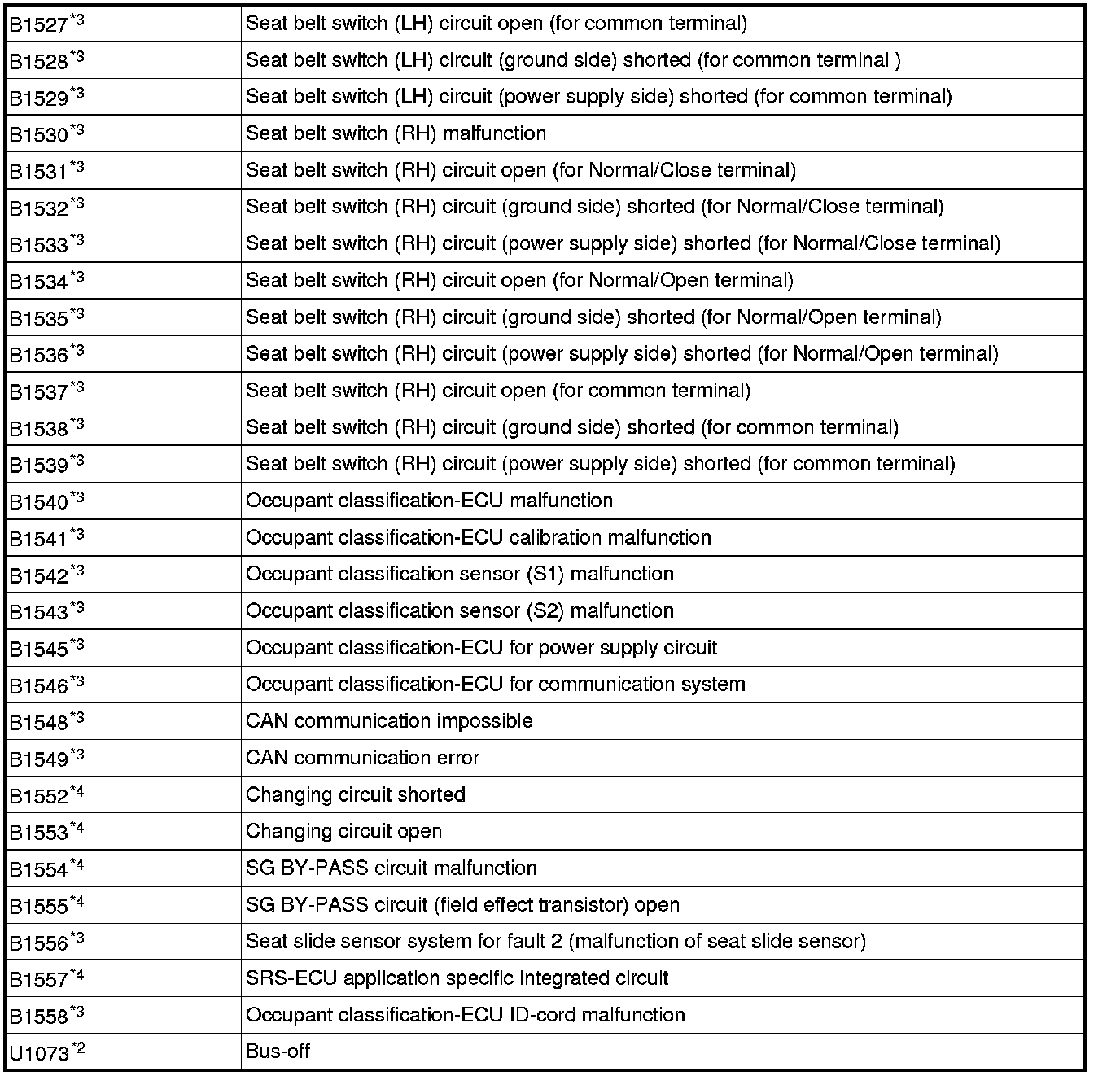

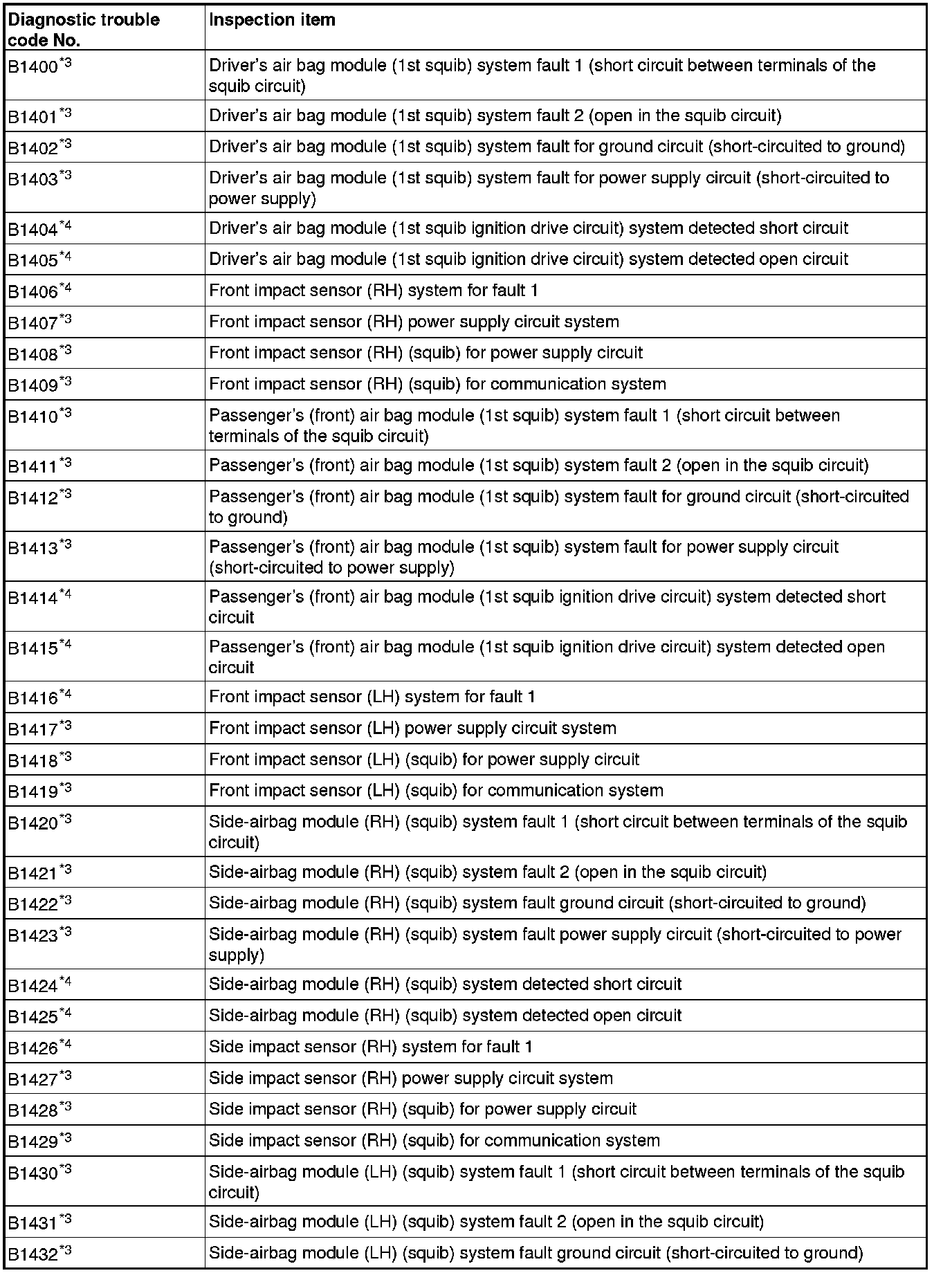

DIAGNOSTIC TROUBLE CODE CHART

CAUTION:
During diagnosis, a DTC code associated with another system may be set when the ignition switch is turned on with connector(s) disconnected. After completing the repair, confirm all systems for DTC code(s). If DTC code(s) are set, erase them all.

Inspect according to the inspection chart that is appropriate for the DTC.


















NOTE:
*1: Electrically Erasable Programmable ROM
*2: This DTC will remain in memory and the SRS warning light will be switched off when the system returns to normal condition.
*3: This DTC will remain in memory and the SRS warning light will be switched on even if the system returns to normal condition.
*4: This DTC cannot be erased by "Erase DTCs" function.
