Intersystem Affiliated DTC Reference Table

INTERSYSTEM AFFILIATED DTC REFERENCE TABLE

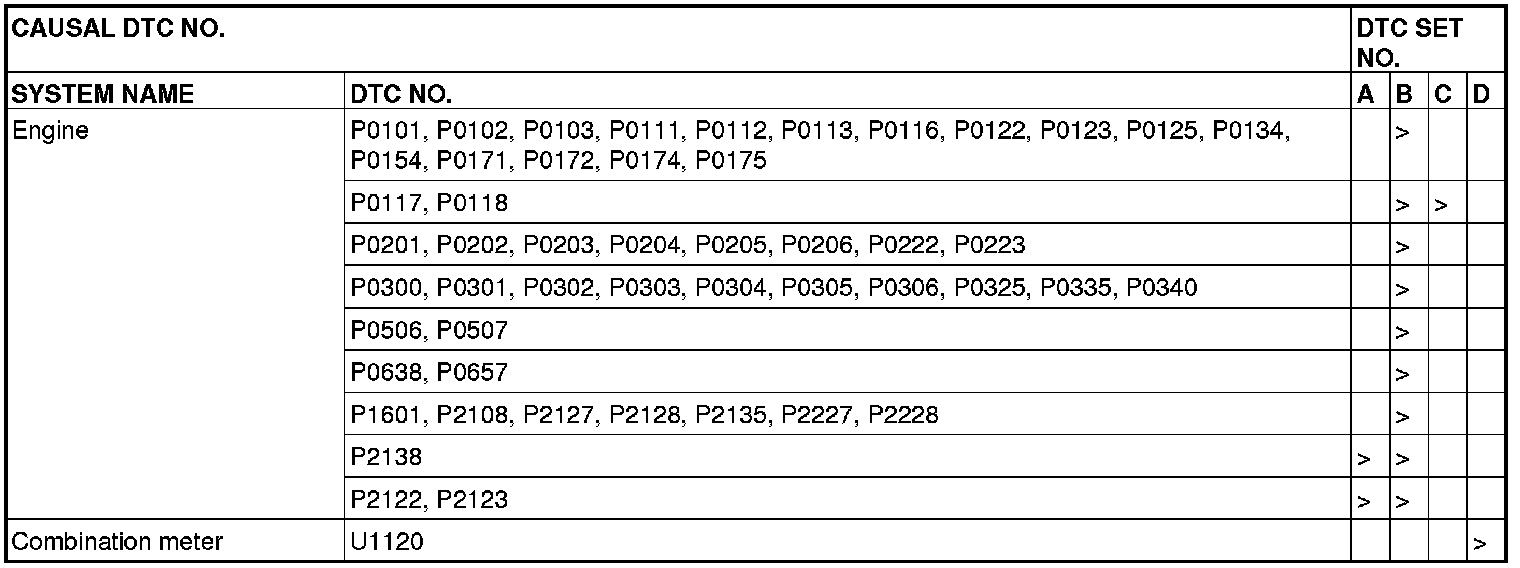

For vehicles with CAN, when DTC which influences the transmission data is set to the ECU which sends the data, DTC also could be set to the ECU which receives and controls the transmission data. The table below shows the relativity of DTC between ECUs. In addition, the alphabet shows the following DTC.

- A: TCL - DTC No. U1073 Traction Control/Active Stability Control System (TCL/ASC) .)
- B: TCL - DTC No. U1120 Traction Control/Active Stability Control System (TCL/ASC) .)
- C: Air conditioner - DTC No. U1120 Manual Air Conditioning .)
- D: SWS - DTC No. U1128 U1128 .)
