Manual Air Conditioning

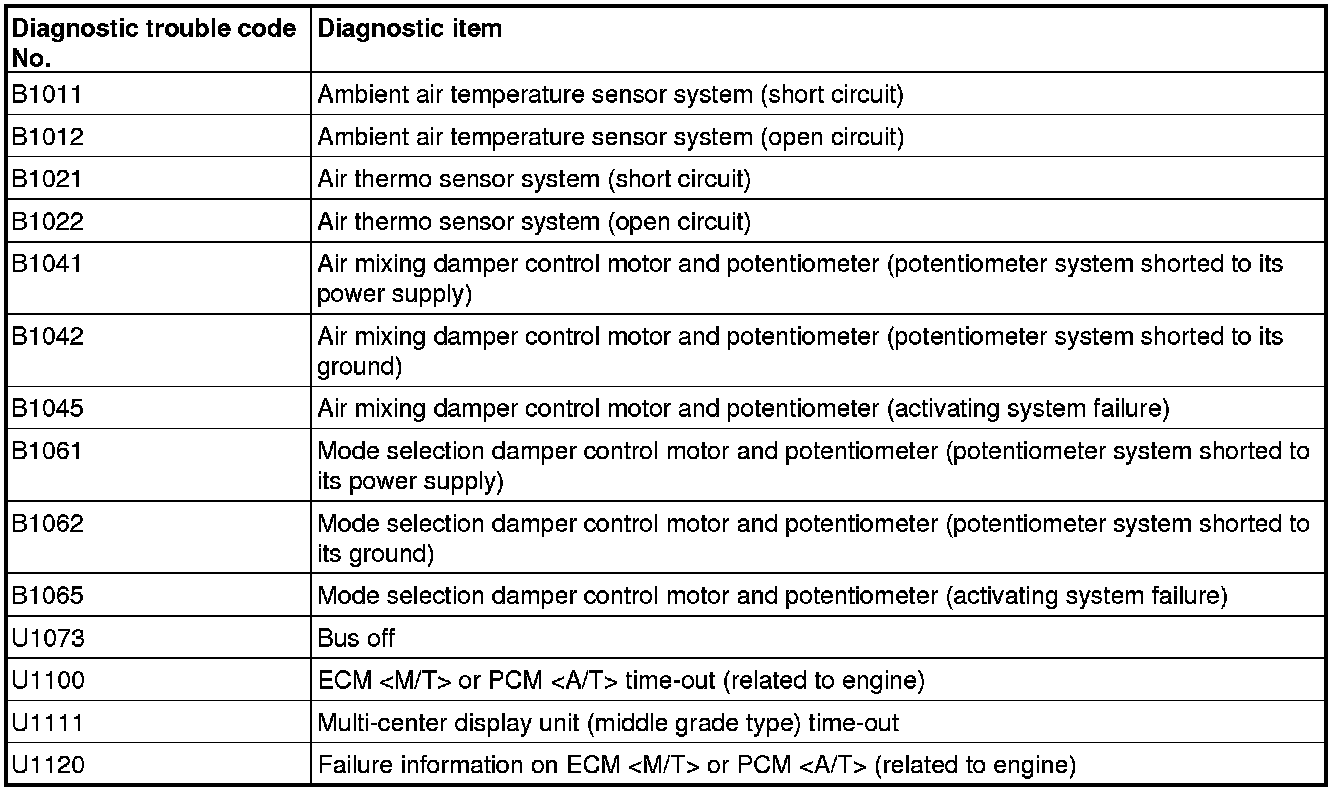

DIAGNOSTIC TROUBLE CODE CHART

CAUTION:
During diagnosis, a DTC code associated with other system may be set when the ignition switch is turned on with connector(s) disconnected. On completion of repairs, confirm all systems for DTC code(s). If DTC code(s) are set, erase them all.





NOTE:
*: This diagnostic trouble code will be set even if the system is normal.
