B1301




DTC B1301 5bow sensor: Up&Down=ON






CIRCUIT OPERATION

- The convertible top control module judges the convertible top operating state based on the signals from the sensors and switches.

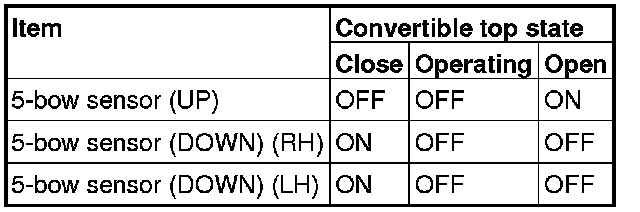

- 5-bow sensor is the one of those sensors and the convertible top control module mounts 5-bow sensor (UP), 5-bow sensor (DOWN) (RH), and 5-bow sensor (DOWN) (LH). They output the following signals to the convertible top control module according to the open/close state of the convertible top.





DTC SET CONDITION

This DTC is set as a 5-bow sensor error when the 5-bow sensor (UP) and the 5-bow sensor (DOWN) output ON signal simultaneously which is unavailable in the normal condition.
In addition, if ON failure occurs in either LH or RH 5-bow sensor (DOWN), this DTC is also set. In this case, because the signals from the LH and RH sensors are different, DTC B1302 or B1303 is set at the same time.

TROUBLESHOOTING HINTS

- ON failure of 5-bow sensor (UP) (including defective sensor power supply line or signal line)
- ON failure of 5-bow sensor (DOWN) (including defective sensor power supply line or signal line)
- Malfunction of the convertible top control module

NOTE:
If ON failure occurs in both the LH and RH 5-bow sensors (DOWN), the power line for the 5-bow sensor may be defective.

DIAGNOSIS

Required Special Tool

- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A
- MB992006: Extra fine probe

STEP 1. Using scan tool MB991958, read diagnostic trouble code.

Q. Are DTC B1302 and/or B1303 set?

YES Perform the troubleshooting for DTC B1302/B1303 (Refer to B1302).
NO Go to Step 2.
STEP 2. Check the state of the convertible top.

Q. Is the convertible top closed?

YES (closed) : Go to Step 3.
NO (open) : Close the convertible top. Then go to Step 3.
STEP 3. Using scan tool MB991958, check data list.

Use scan tool MB991958 to check the following service data (Refer to Data Reference Table).

- Item 09: 5-bow sensor up

OK: "OFF" appears.

Q. Is the check result satisfactory?

YES Go to Step 8.
NO Go to Step 4.

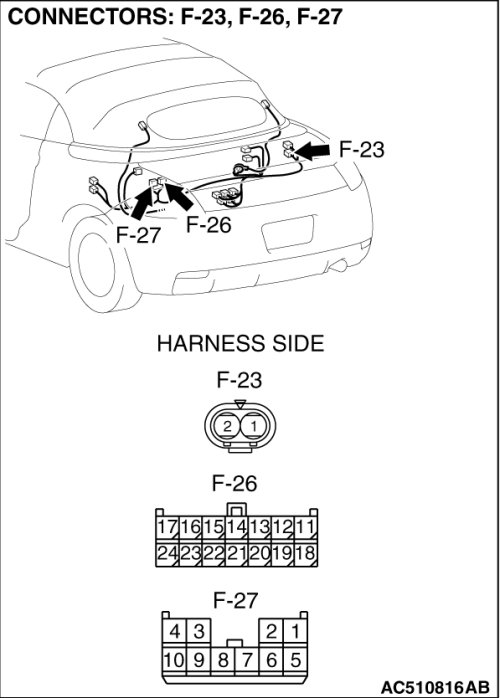

STEP 4. Check convertible top control module connector F-26, F-27 and 5-bow sensor (UP) connector F-23 for loose, corroded or damaged terminals, or terminals pushed back in the connector.





Q. Is the check result satisfactory?

YES Go to Step 5.

NO Repair or replace the damaged component(s).

STEP 5. Check the harness between convertible top control module connector F-27 (terminal 1) and 5-bow sensor (UP) connector F-23 (terminal 2), between convertible top control module connector F-26 (terminal 11) and 5-bow sensor (UP) connector F-23 (terminal 1).





Check the power supply line and signal line of the 5-bow sensor (UP) for open or short circuit.

Q. Is the check result satisfactory?

YES Go to Step 6.

NO Repair the harness wire.

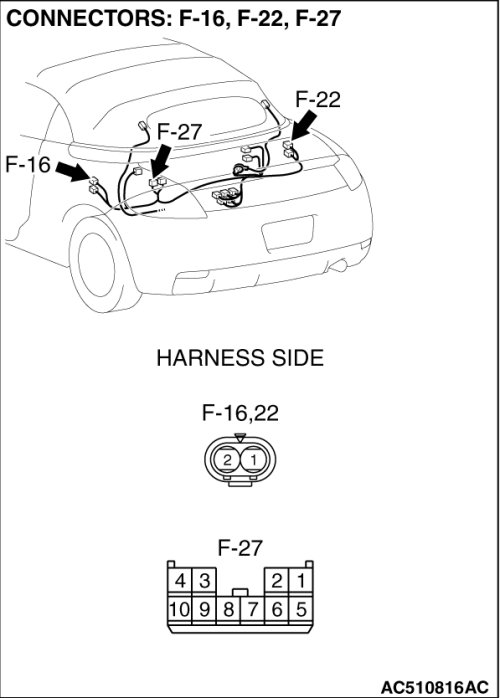

STEP 6. Check the harness between convertible top control module connector F-27 (terminal 1) and 5-bow sensor (DOWN) (LH) connector F-16 (terminal 2), and between convertible top control module connector F-27 (terminal 1) and 5-bow sensor (DOWN) (RH) connector F-22 (terminal 2)





- Check the power supply line of the 5-bow sensor (DOWN) for short circuit.
- Check the power supply line and signal line of the 5-bow sensor (UP) for open or short circuit.

Q. Is the check result satisfactory?

YES Replace the 5-bow sensor (UP). Then go to Step 7.

NO Repair the harness wire.

STEP 7. Using scan tool MB991958, check data list.

Use scan tool MB991958 to check the following service data (Refer to Data Reference Table).

- Item 09: 5-bow sensor up

OK: "OFF" appears.

Q. Is the check result satisfactory?

YES The procedure is complete.
NO Replace the convertible top control module.
STEP 8. Check the convertible top operation.

Q. Is the opening operation of the convertible top normal?

YES Intermittent malfunction How to Cope With Intermittent Malfunctions).
NO Go to Step 9.
STEP 9. Using scan tool MB991958, check data list.

Use scan tool MB991958 to check the following service data (Refer to Data Reference Table).

- Item 10: 5-bow sensor down (left)
- Item 11: 5-bow sensor down (right)

OK: "OFF" appears.

Q. Is the check result satisfactory?

YES : Go to Step 17.
NO (Item 10 or 11: ON) : Perform the troubleshooting for DTC B1302/B1303 (Refer to B1302).
NO (Both item 10 and 11: ON) : Go to Step 10.
STEP 10. Check convertible top control module connector D-46 for loose, corroded or damaged terminals, or terminals pushed back in the connector.





Q. Is the check result satisfactory?

YES Go to Step 11.

NO Repair or replace the damaged component(s).

STEP 11. Check the harness between convertible top control module connector F-27 (terminal 1) and 5-bow sensor (DOWN) (LH) connector F-16 (terminal 2), and. between convertible top control module connector F-27 (terminal 1) and 5-bow sensor (DOWN) (RH) connector F-22 (terminal 2)





Check the power supply line of the 5-bow sensor (DOWN) for open circuit.

Q. Is the check result satisfactory?

YES Go to Step 12.

NO Repair the harness wire.

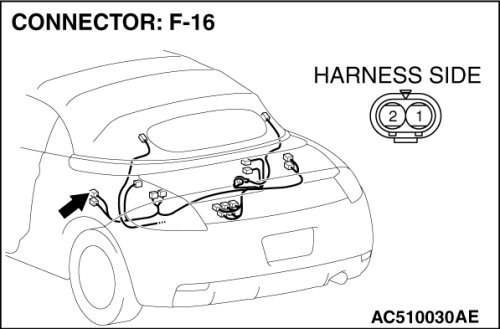

STEP 12. Check 5-bow sensor (DOWN) (LH) connector F-16 for loose, corroded or damaged terminals, or terminals pushed back in the connector.





Q. Is the check result satisfactory?

YES Go to Step 13.

NO Repair or replace the damaged component(s). Then go to Step 14.

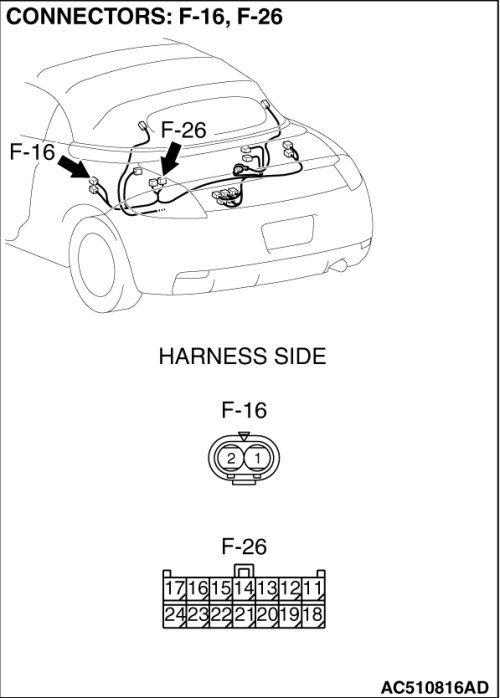

STEP 13. Check the harness between convertible top control module connector F-26 (terminal 12) and 5-bow sensor (DOWN) (LH) connector F-16 (terminal 1).





Q. Is the check result satisfactory?

YES Replace the 5-bow sensor (DOWN) (LH). Then go to Step 14.

NO Repair the harness wire. Then go to Step 14.

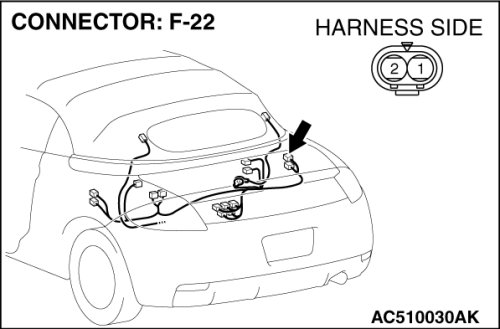

STEP 14. Check 5-bow sensor (DOWN) (RH) connector F-22 for loose, corroded or damaged terminals, or terminals pushed back in the connector.





Q. Is the check result satisfactory?

YES Go to Step 15.

NO Repair or replace the damaged component(s). Then go to Step 16.

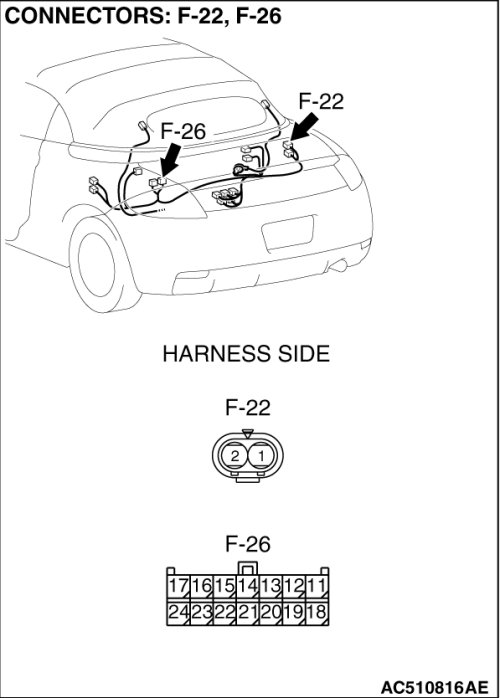

STEP 15. Check the harness between convertible top control module connector F-26 (terminal 13) and 5-bow sensor (DOWN) (RH) connector F-22 (terminal 1).





Q. Is the check result satisfactory?

YES Replace the 5-bow sensor (DOWN) (LH). Then go to Step 16.

NO Repair the harness wire. Then go to Step 16.

STEP 16. Using scan tool MB991958, check data list.

Use scan tool MB991958 to check the following service data (Refer to Data Reference Table).

- Item 10: 5-bow sensor down (left)
- Item 11: 5-bow sensor down (right)

OK: "OFF" appears.

Q. Is the check result satisfactory?

YES : The procedure is complete.
NO (Item 10 or 11: ON) : Perform the troubleshooting for DTC B1302/B1303 (Refer to B1302).
NO (Both item 10 and 11: ON) : Replace the convertible top control module.
STEP 17. Recheck the DTC.

Q. Is DTC B1301 set?

YES Replace the convertible top control module.
NO Intermittent malfunction How to Cope With Intermittent Malfunctions).
