Vehicles Without Liftgate Windowglass Molding Side

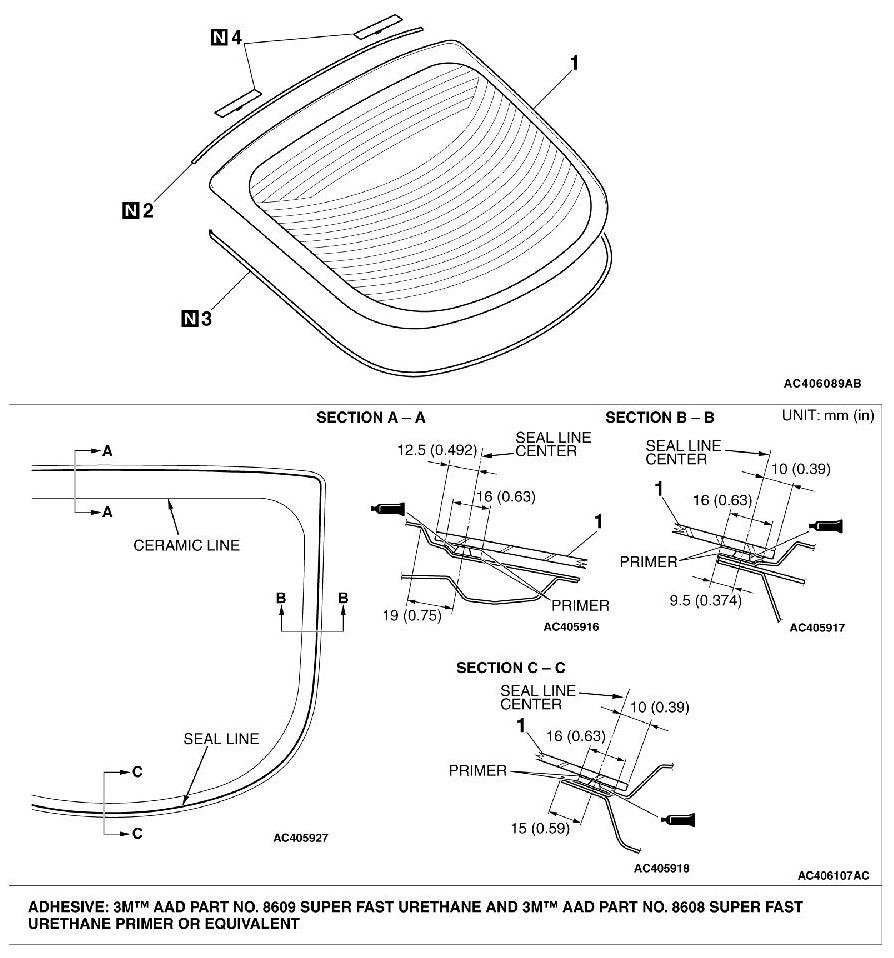

REMOVAL AND INSTALLATION [VEHICLES WITHOUT LIFTGATE WINDOW GLASS MOLDING SIDE]













Required Special Tool:

- MB990480: Glass Holder

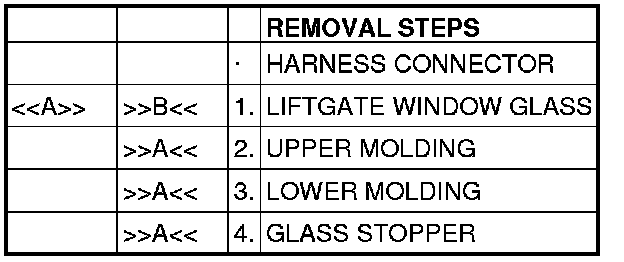

REMOVAL SERVICE POINT

[[A]] LIFTGATE WINDOW GLASS REMOVAL

Remove the liftgate window glass in the same manner as the windshield (Refer to Removal and Replacement).

NOTE:
Use a piano wire to remove the liftgate window glass.

INSTALLATION SERVICE POINTS

]]A[[ GLASS STOPPER/LOWER MOLDING/UPPER MOLDING INSTALLATION

1.
CAUTION:
Before the next job, leave the decreased parts for 3 minutes or more to dry. Do not touch the degreased parts.

Use 3M(TM) AAD Part number 8906 or equivalent to degrease the inside and outside of the liftgate window glass and the liftgate flanges.

2.

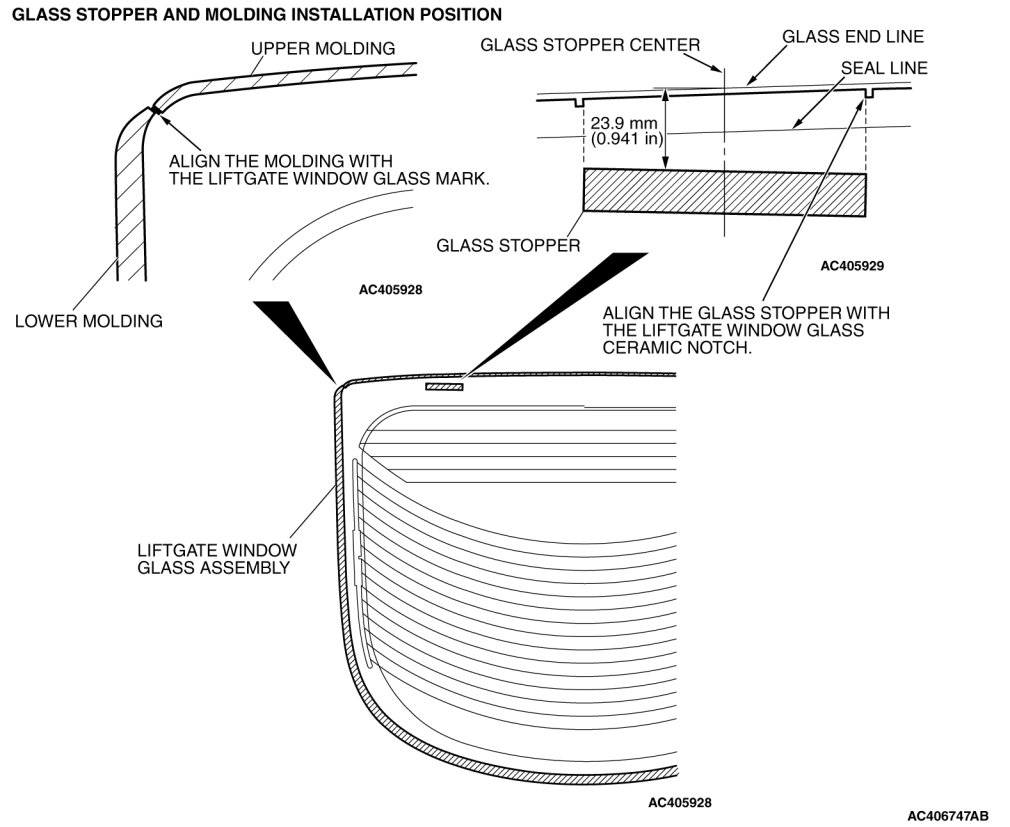

Assemble the glass stopper, lower molding and upper molding to specified positions on the liftgate window glass.

]]B[[ LIFTGATE WINDOW GLASS INSTALLATION

Install the liftgate window glass in the same manner as the windshield (Refer to Removal and Replacement).
