F5M42

REMOVAL AND INSTALLATION

[5A/T]













REMOVAL SERVICE POINTS

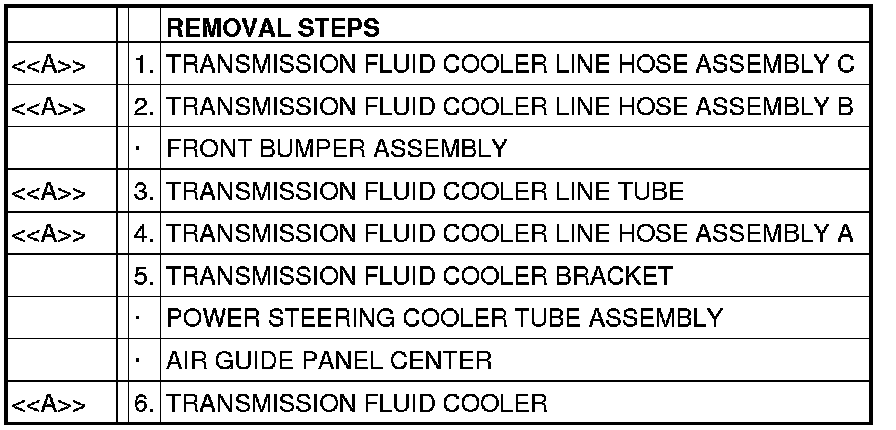

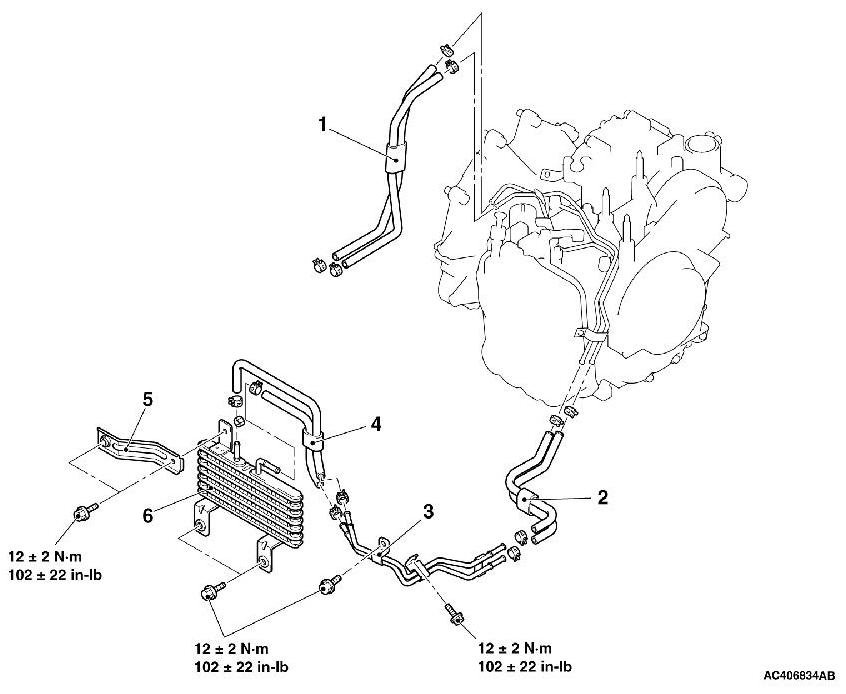

[[A]] TRANSMISSION FLUID COOLER LINE HOSE A, B, C/TRANSMISSION FLUID COOLER LINE TUBE/TRANSMISSION FLUID COOLER REMOVAL

Drain the transmission fluid and engine coolant, which still remain in the hoses and the transmission fluid cooler.
