F4A4B

REMOVAL AND INSTALLATION

[4A/T]

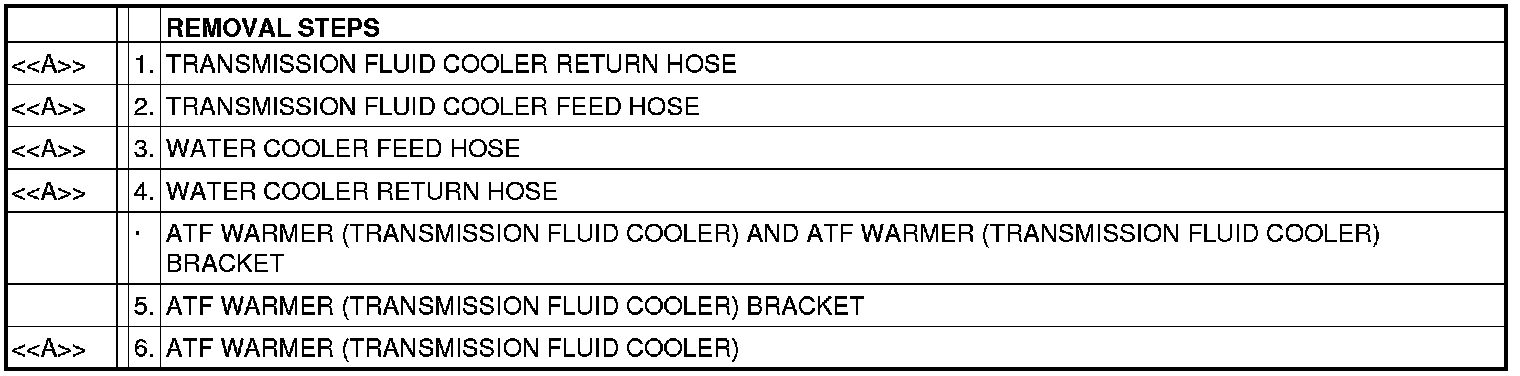

REMOVAL SERVICE POINTS

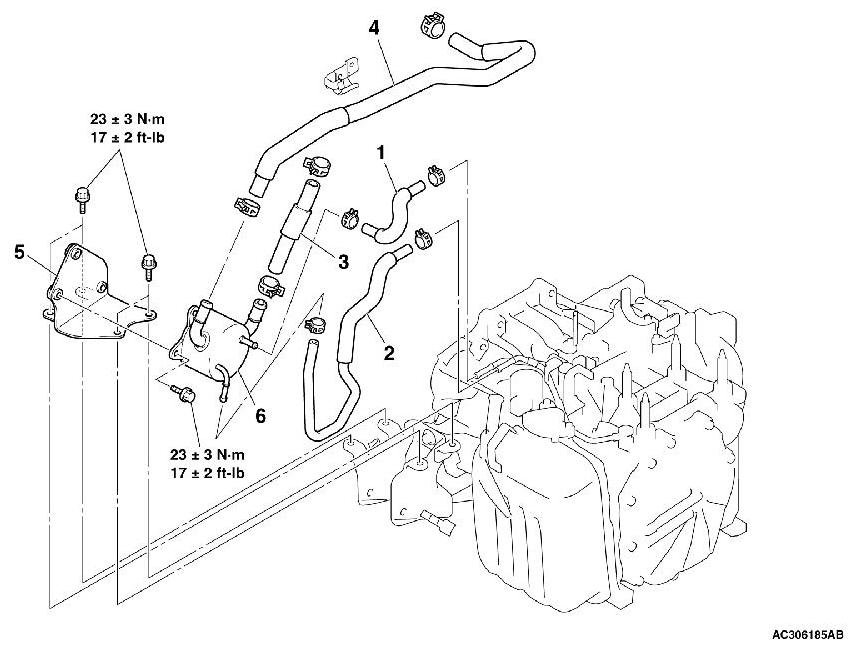

[[A]] TRANSMISSION FLUID COOLER RETURN HOSE/TRANSMISSION FLUID COOLER FEED HOSE/WATER COOLER FEED HOSE/WATER COOLER RETURN HOSE/ATF WARMER (TRANSMISSION FLUID COOLER) REMOVAL

Drain the transmission fluid and engine coolant, which still remained in the hoses and the ATF warmer (transmission fluid cooler).
