Oil Pump Disassembly and Assembly

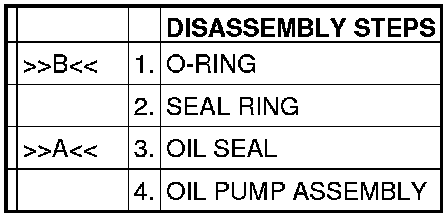

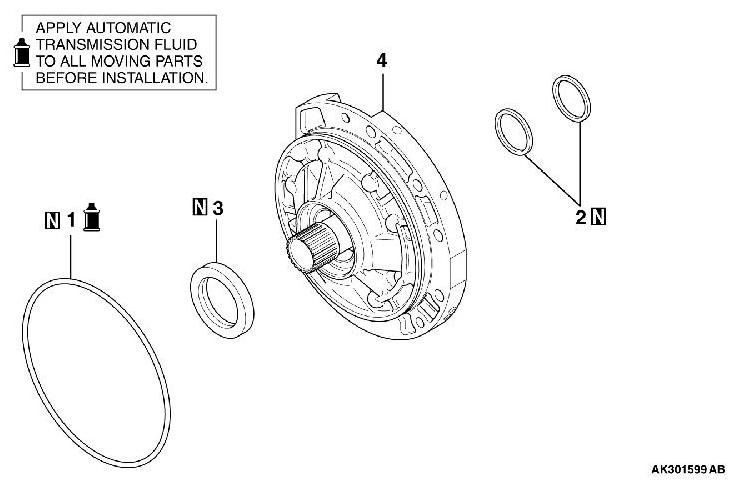

DISASSEMBLY AND ASSEMBLY









- MD998334: Oil Seal Installer

ASSEMBLY SERVICE POINTS

]]A[[ OIL SEAL INSTALLATION

1. Apply a small amount of ATF to the oil seal lip.

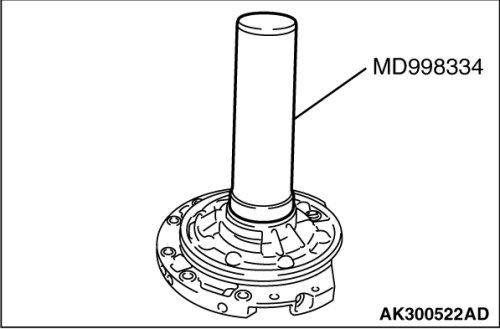

2. Use special tool MD998334 to tap the oil seal in the oil pump body.

]]B[[ O-RING INSTALLATION

Install a new O-ring to the outer groove of the oil pump, and apply ATF or petroleum jelly
(Vaseline) to the O-ring.
