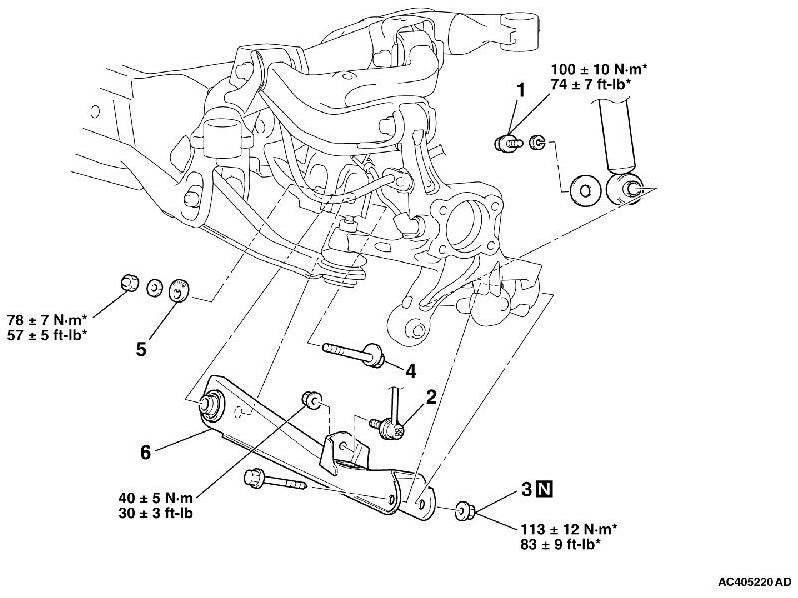

Lower Arm Removal and Installation

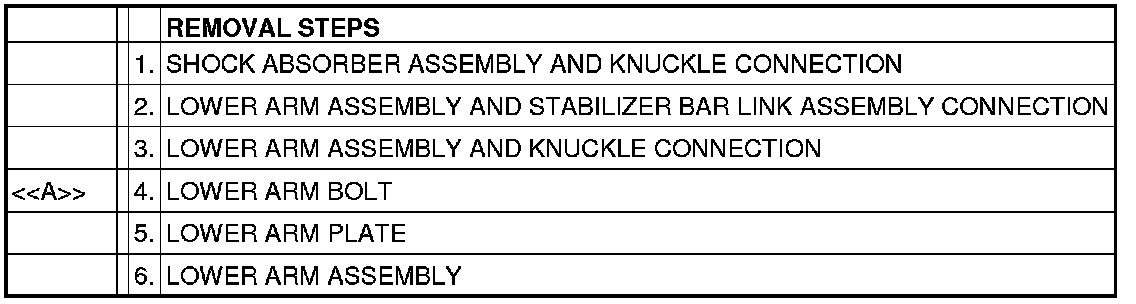

REMOVAL AND INSTALLATION

CAUTION:
*:
Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in an unladen condition.













REMOVAL SERVICE POINT

[[A]]

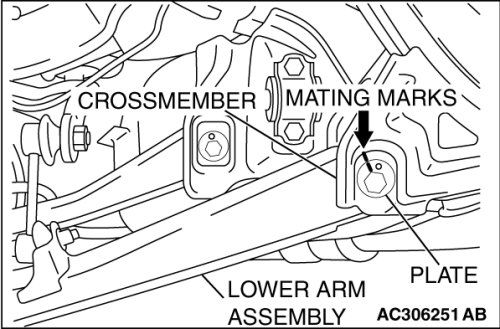

LOWER ARM BOLT REMOVAL





Place mating marks on the crossmember and the plate before removing the lower arm bolt.
