Removal and Replacement

REMOVAL AND INSTALLATION [2.4L ENGINE]

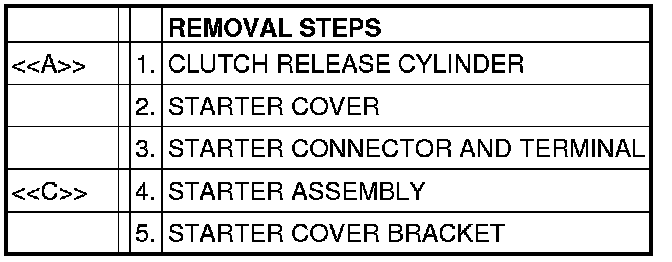

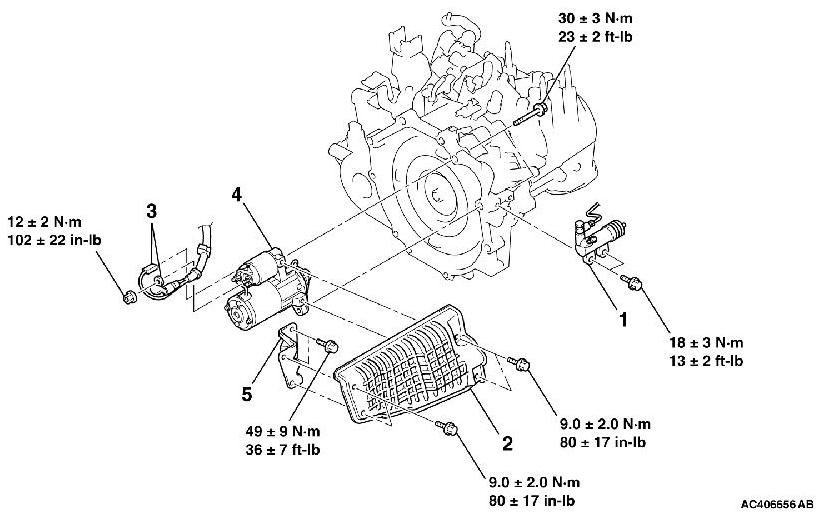

[M/T]

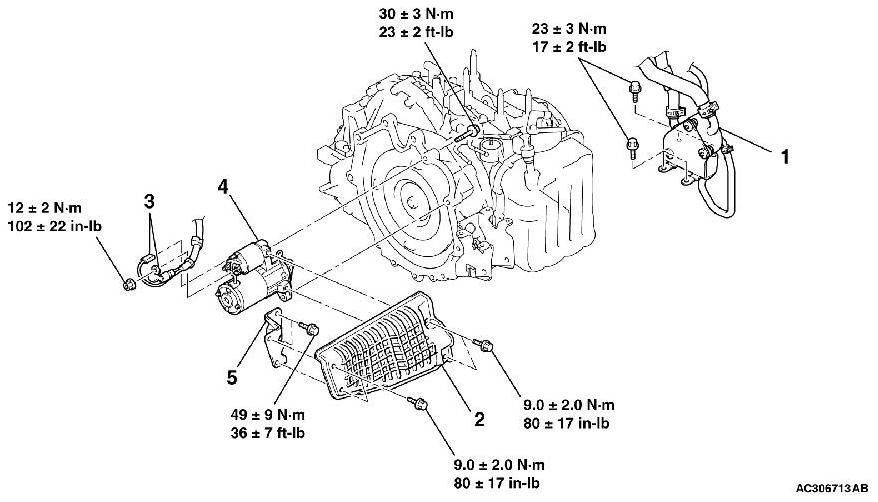

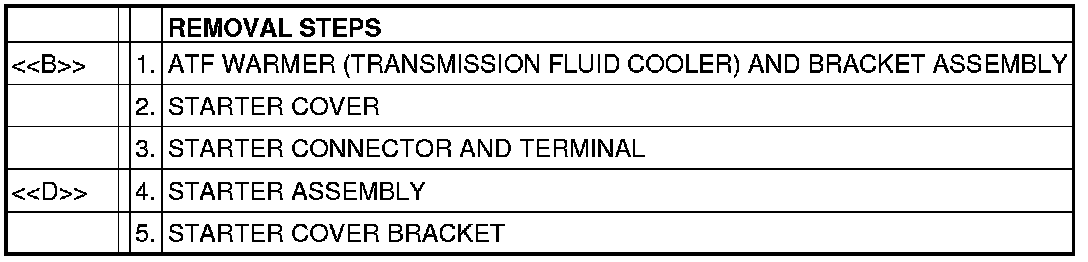

[A/T]













REMOVAL SERVICE POINTS

[[A]] CLUTCH RELEASE CYLINDER REMOVAL

With the pipe installed, remove the clutch release cylinder from the transaxle assembly.

[[B]] ATF WARMER (TRANSMISSION FLUID COOLER) AND BRACKET ASSEMBLY REMOVAL

With the hose installed, remove the ATF warmer (transmission fluid cooler) and bracket assembly from the transmission case front roll stopper bracket.

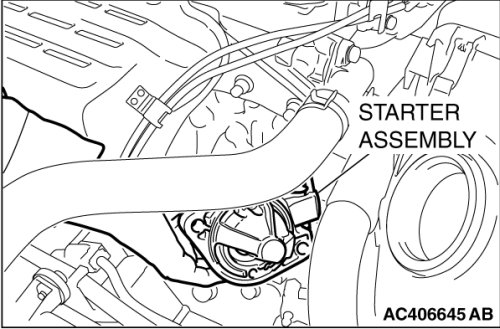

[[C]] STARTER ASSEMBLY [M/T] REMOVAL





Remove the starter assembly from above vehicle.

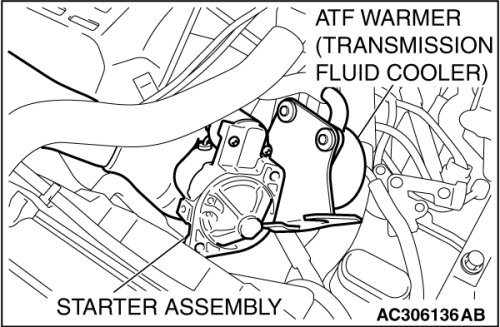

[[D]] STARTER ASSEMBLY [A/T] REMOVAL





Remove the starter assembly from the side of ATF warmer (transmission fluid cooler).
