General Data and Specifications




[ECLIPSE]

VEHICLES FOR USA AND CANADA

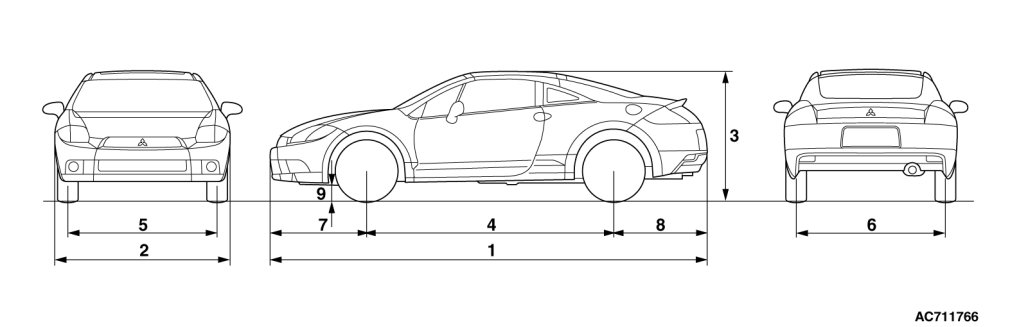

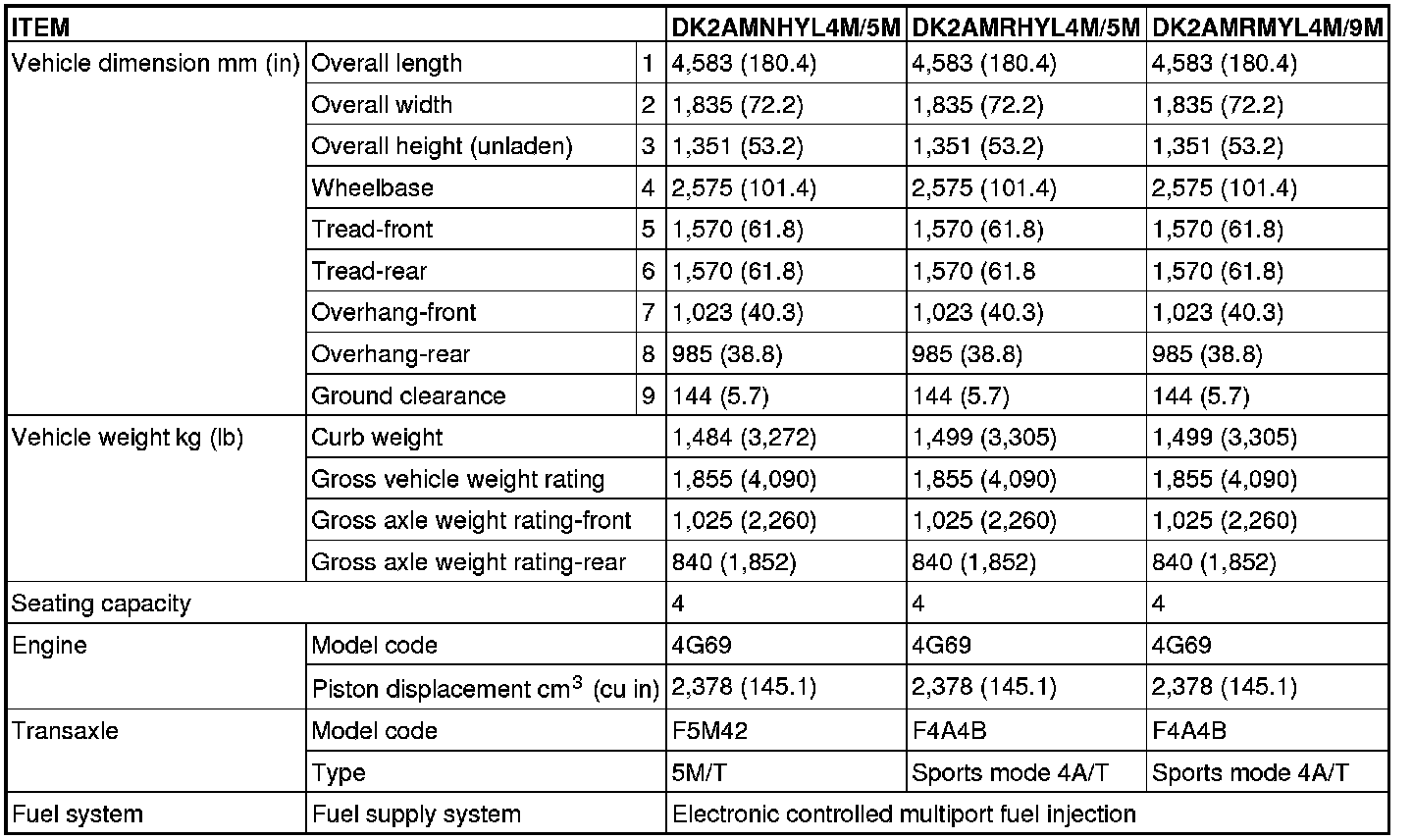

GENERAL SPECIFICATIONS (2.4L ENGINE)

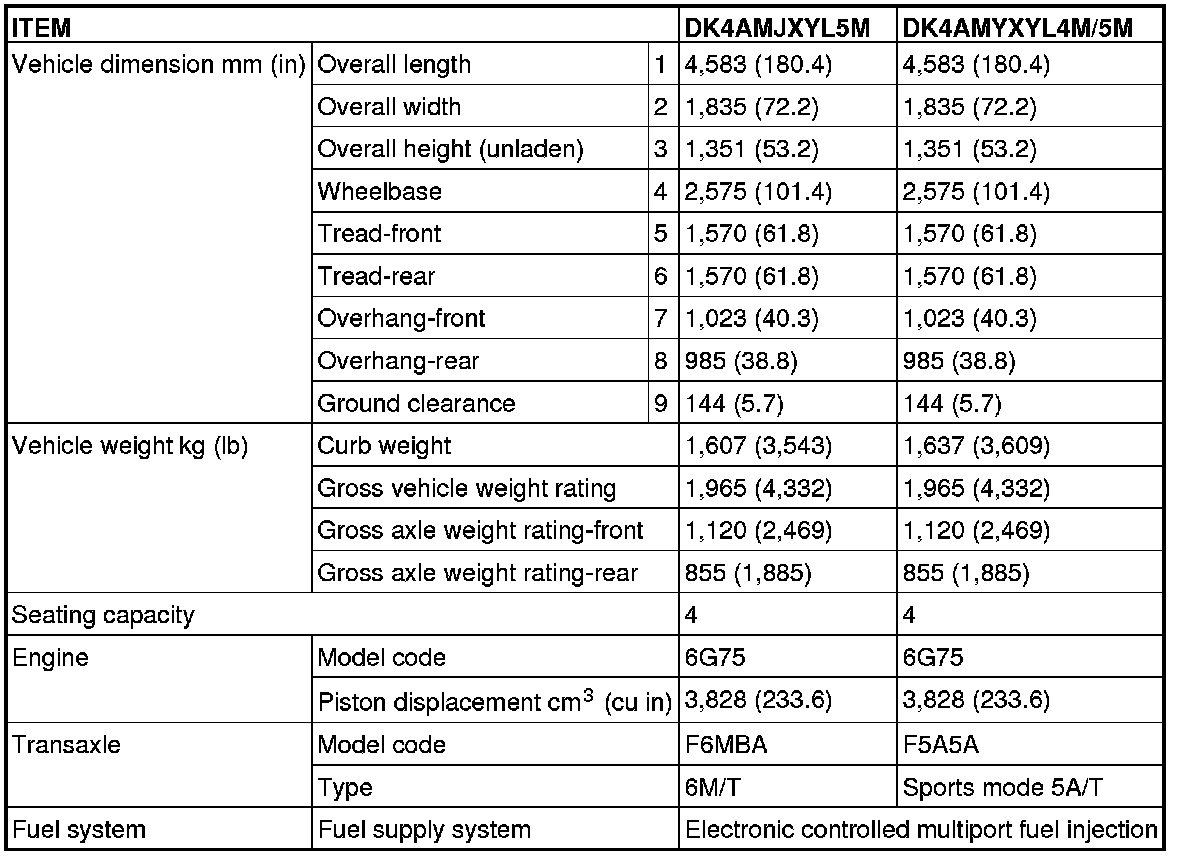

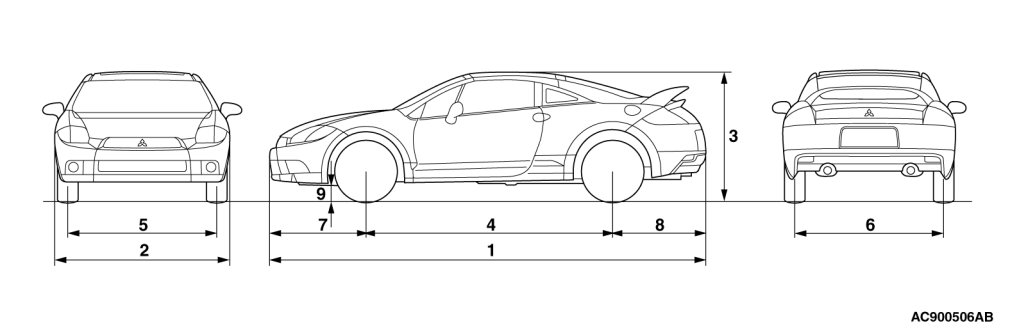

GENERAL SPECIFICATIONS (3.8L ENGINE)

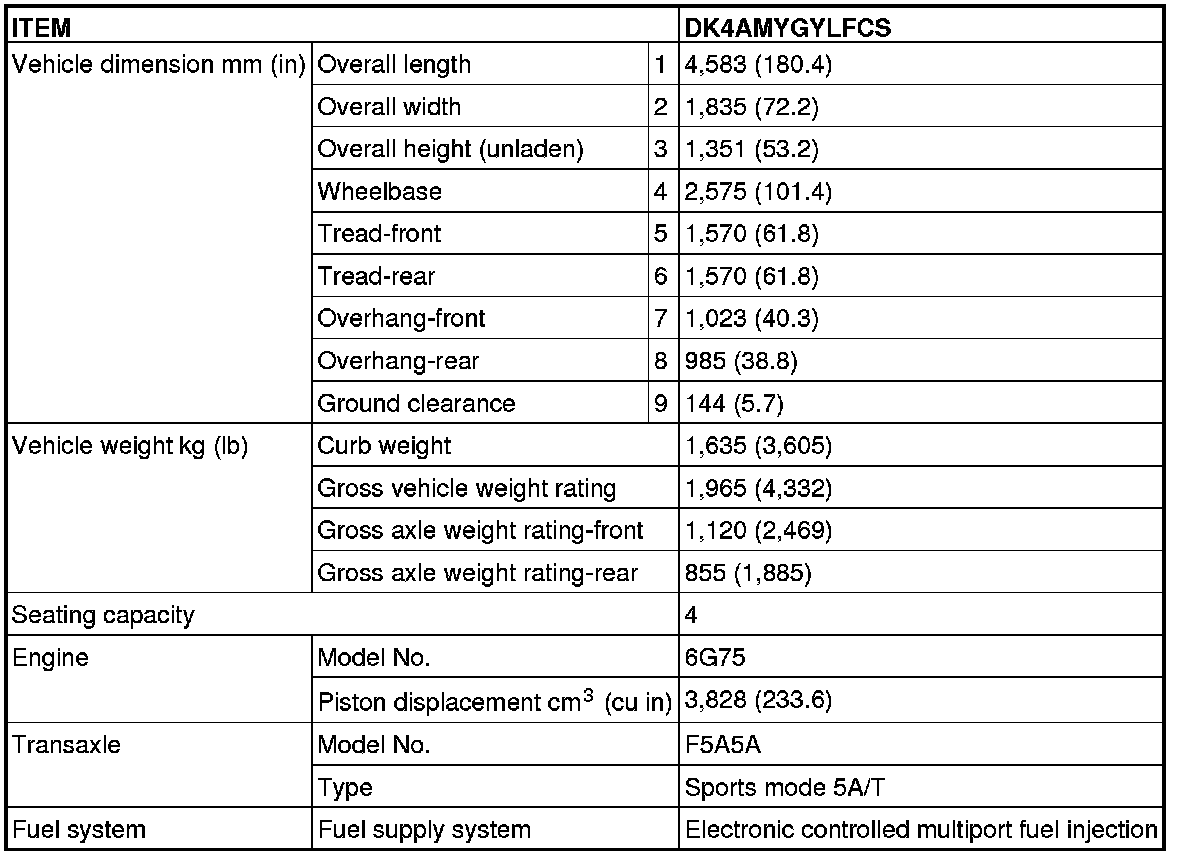

VEHICLES FOR MEXICO
